AL-860

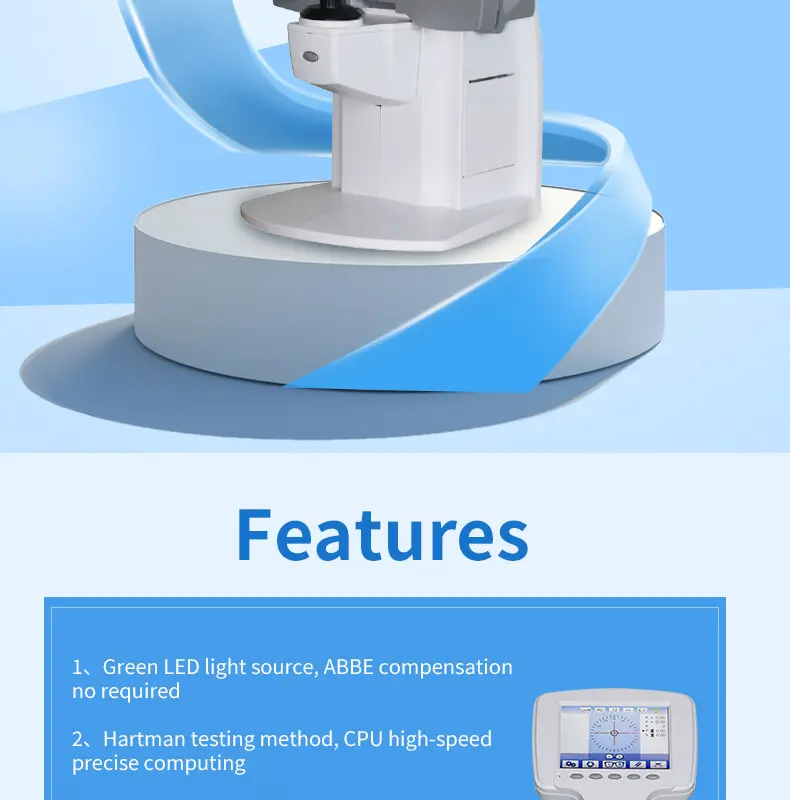

Feature
·7-inch Full-Color Touchscreen with intuitive interface

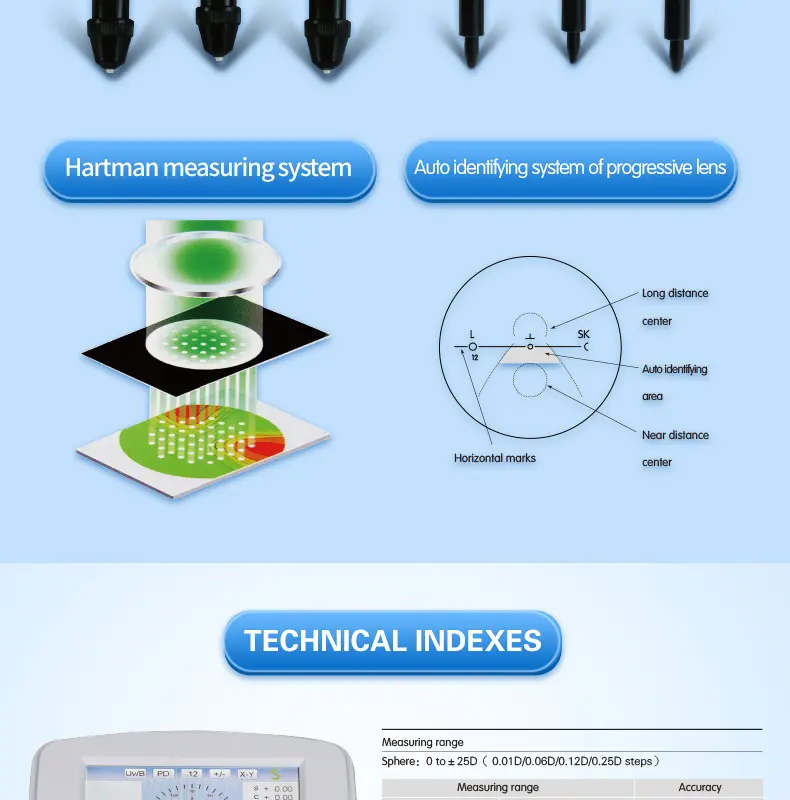

·Real-time Progressive Lens Mapping

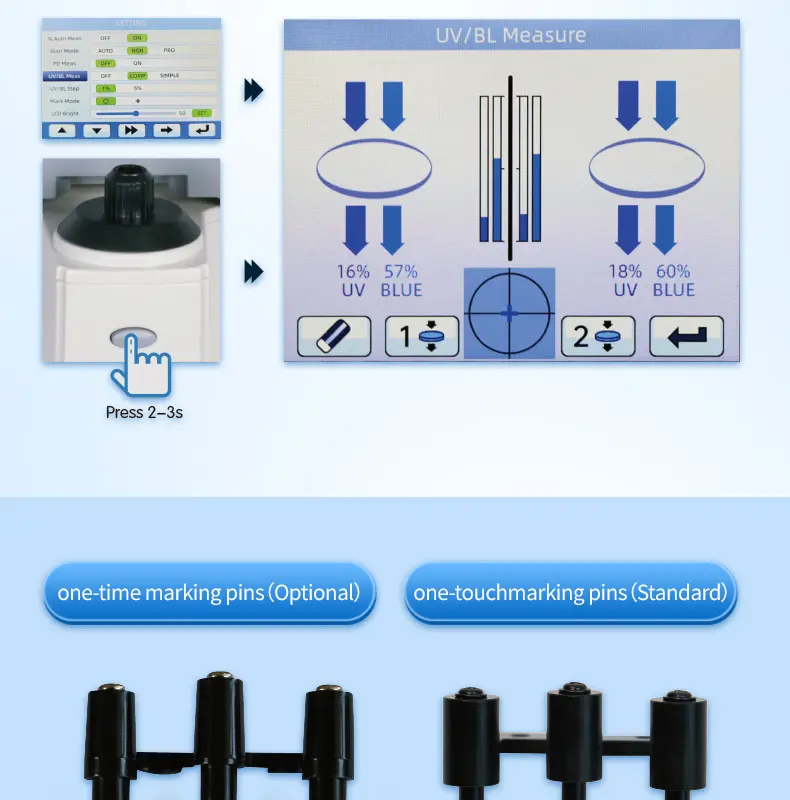

·Dual UV & Blue Light Transmission Test
·Advanced Measurement Speed & Stability
·Contact Lens Support for soft and hard types
·Thermal Printer with Auto Cutter

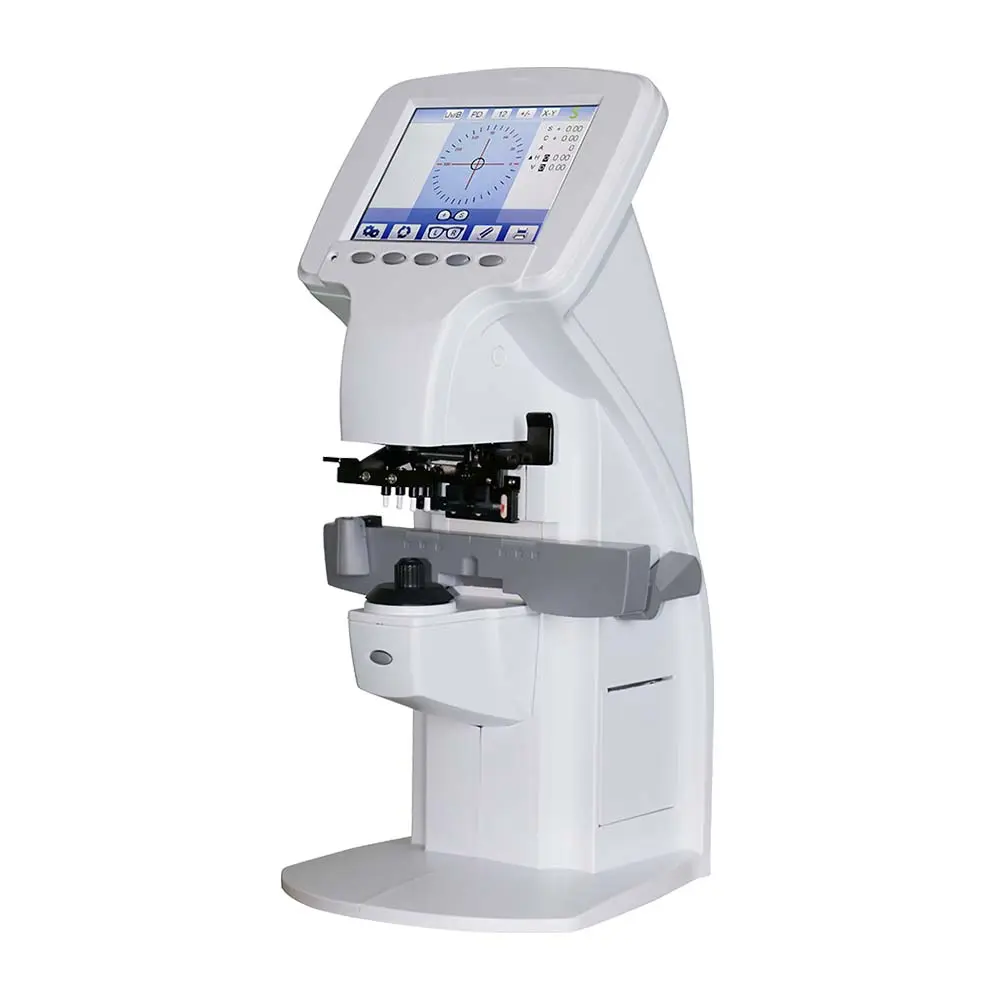

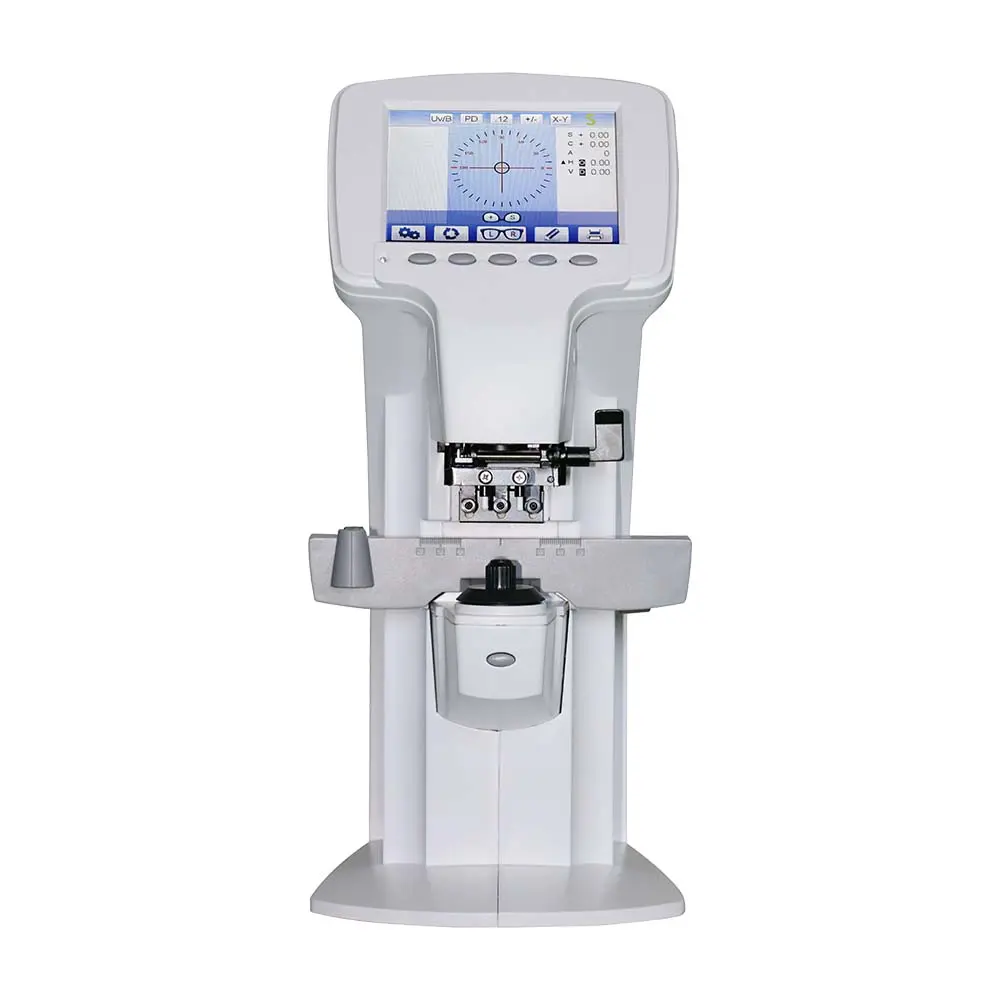

The AL-860 is a high-end auto lensmeter with advanced mapping and color display features. Designed for modern optical clinics, it supports progressive lens analysis, multi-zone mapping, and UV/blue light detection with enhanced clarity.

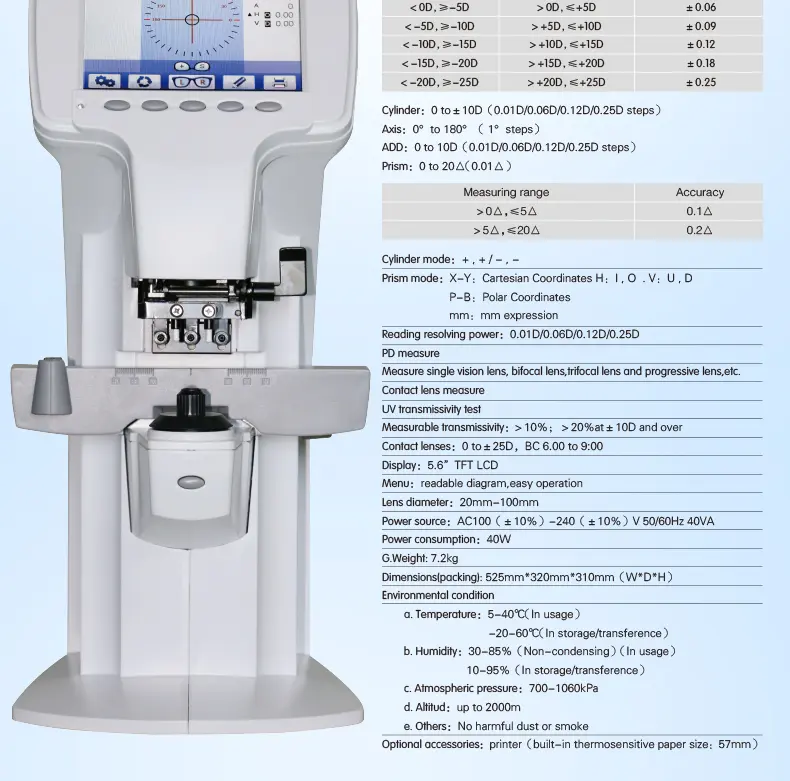

| I | Measuring range |
|---|---|
| Sphere： | 0 to±25D（ 0.01D/0.06D/0.12D/0.25D steps） |
| Cylinder： | 0 to±10D（0.01D/0.06D/0.12D/0.25D steps） |
| Axis： | 0°to 180°（ 1°steps） |
| ADD： | 0 to 10D（0.01D/0.06D/0.12D/0.25D steps） |
| Prism： | + , + / – , – |
| Cylinder mode： | 0 to 20△（0.01△） |
| Prism mode X-Y： | Cartesian Coordinates H：I , O . V：U , D |
| Prism mode P-B： | Polar Coordinates |
| Prism mode mm： | mm expression |
| Reading resolving power： | 0.01D/0.06D/0.12D/0.25D |
| PD measure： | Measure single vision lens, bifocal lens,trifocal lens and progressive lens,etc. |
| Measurable transmissivity： | ＞10%； ＞20%at±10D and over |
| Contact lenses： | 0 to±25D，BC 6.00 to 9:00 |
| Display： | 5.6”TFT LCD |

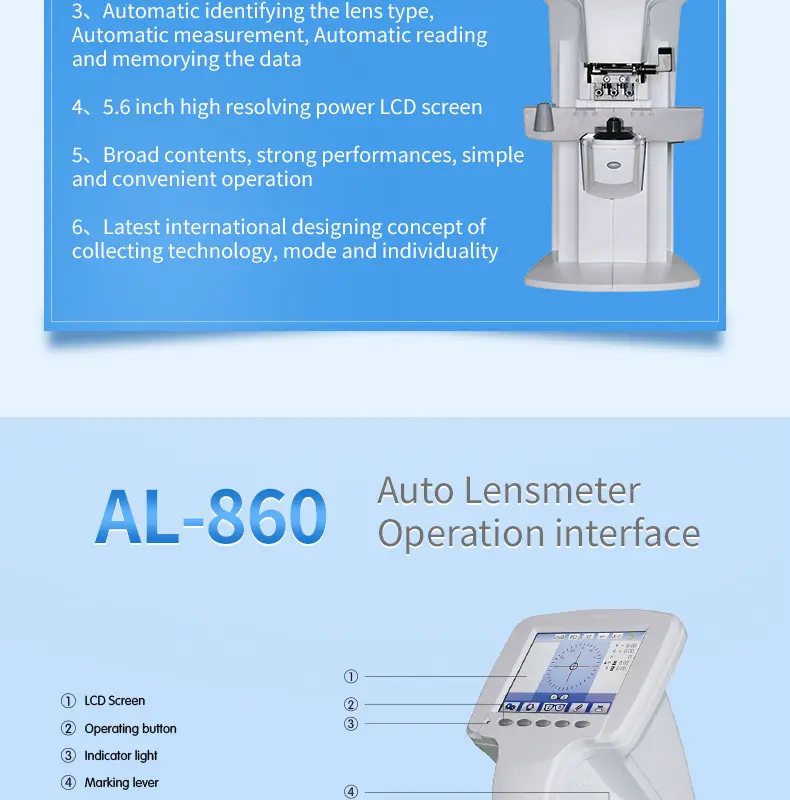

| Menu： | readable diagram,easy operation |
| Lens diameter： | 20mm-100mm |
| Power source： | AC100（±10%）-240（±10%）V 50/60Hz 40VA |
| Power consumption： | 40W |
| Weight: | 7.2kg |
| Dimensions(packing): | 525mm*320mm*310mm（W*D*H） |
| Optional accessories： | printer（built-in thermosensitive paper size：57mm） |
