ALE-1000
Feature
· Automatic lens centering, blocking, and edging – all-in-one system
· Supports bevel, groove, and polish functions for different frame styles
· Smart shape memory and data storage for repeat orders and fast workflow
· Compatible with plastic, polycarbonate, and high-index lenses
· Large LCD touchscreen for easy operation and visual monitoring
· Clean cutting system with minimized noise and water control

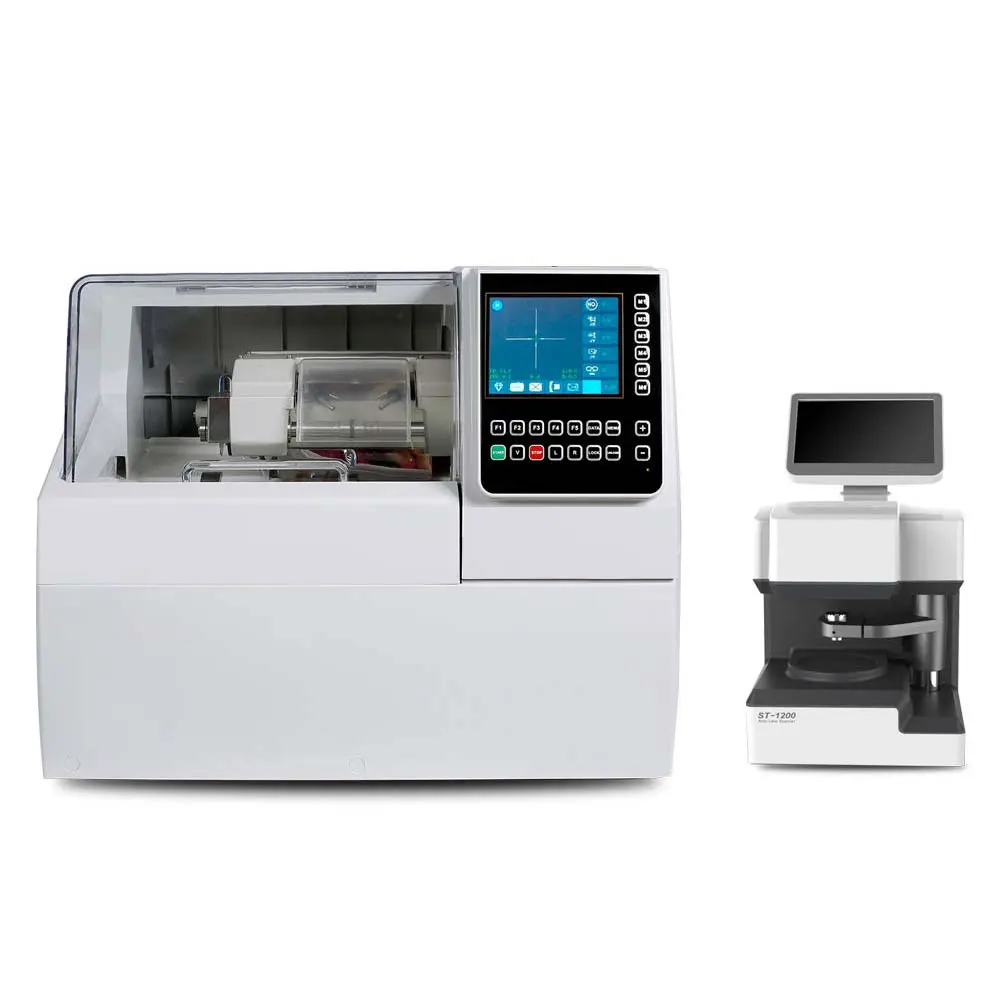

The ALE-1000B is a fully automatic lens edger designed for high-precision, high-efficiency lens processing. With smart recognition and cutting capabilities, it supports various materials and frame types, making it ideal for modern optical labs and retail shops.

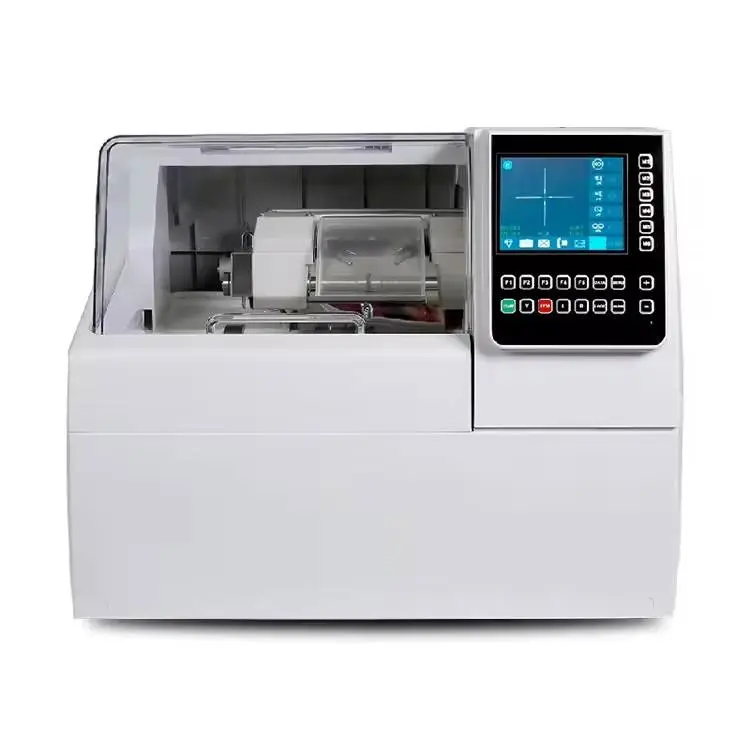

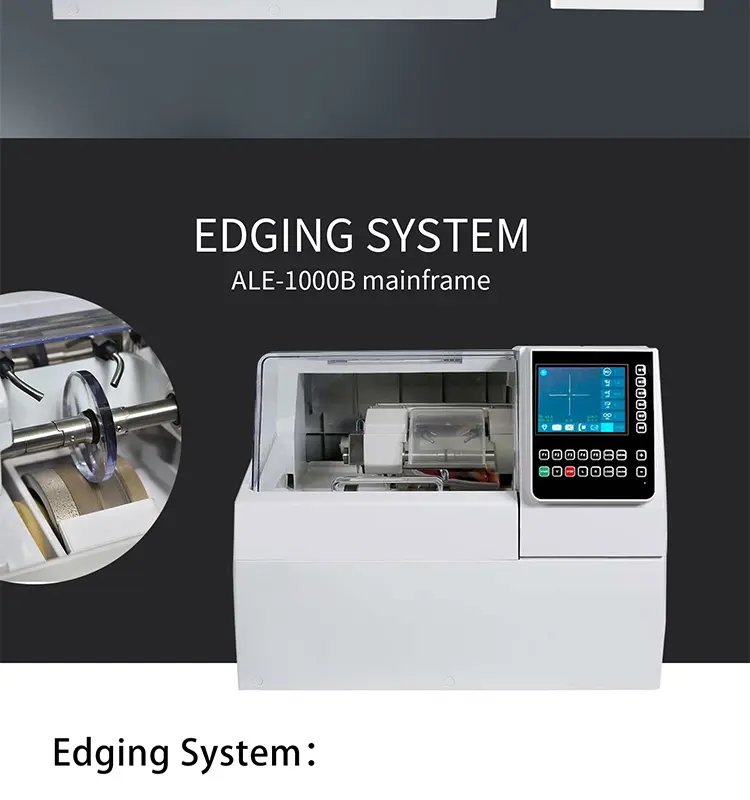

Auto Lens Edger

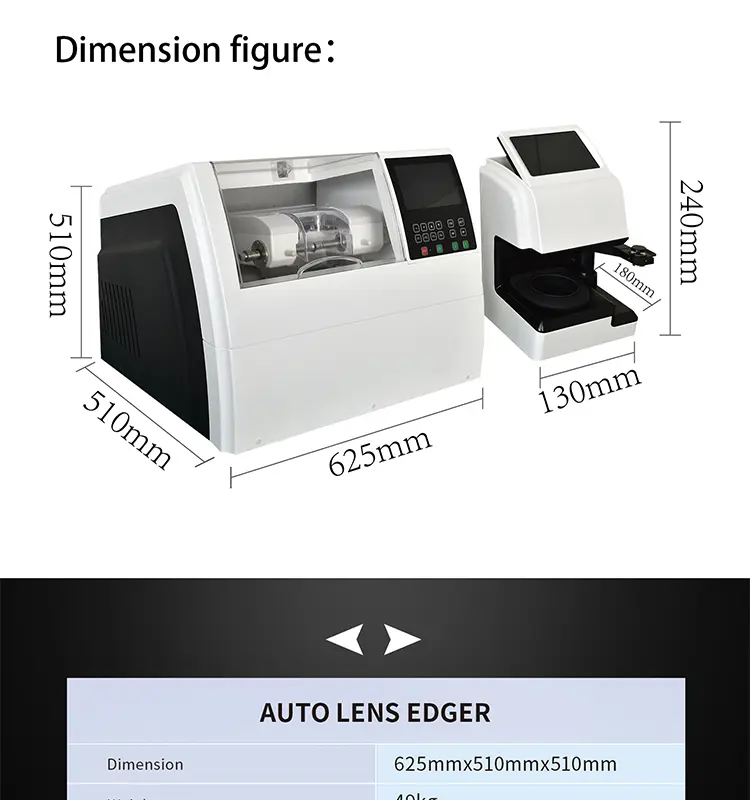

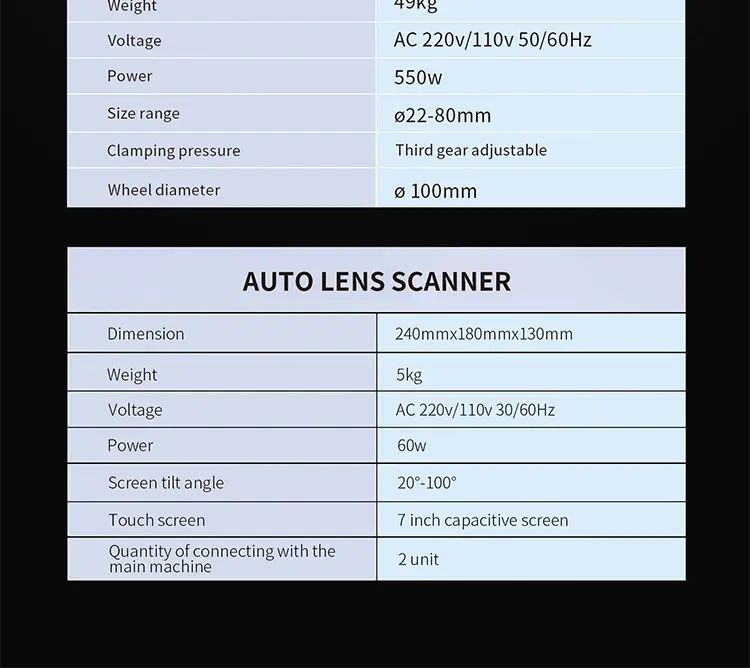

| I | AUTO LENS EDGER |
|---|---|
| Size range: | ø22-80mm |
| Clamping pressure: | Third gear adjustable |
| Wheel diameter: | ø100mm |
| II | AUTO LENS SACNNER |
| Dimension: | 240mmxl80mmxl30mm |
| Weight: | 5kg |
| Voltage: | AC 220v/110v 30/60Hz |
| Power: | 60w |
| Screen tilt angle: | 20°-100° |
| Touch screen: | 7inch capacitive screen |
| Quantityof connecting with the main machine: | 2 unit |
