ALE-3200
Feature
· 3D intelligent scanning with image recognition, accurately captures complex contours.
· High-precision processing, with ±0.05mm tolerance and ±1° axis alignment.
· Supports beveling, grooving, polishing, and safety chamfering for all material types — including glass.
· USB port and internal memory, allows shape storage and software upgrades.
· 5.6” color touchscreen, intuitive layout for efficient technician workflow.
· Ideal for labs that require consistency, accuracy, and material versatility.
The ALE-3200 is built for precision-demanding optical labs that handle complex lens types. With a 3D measurement engine and support for glass lens edging, it’s designed to tackle more challenging frame shapes and premium lens materials.

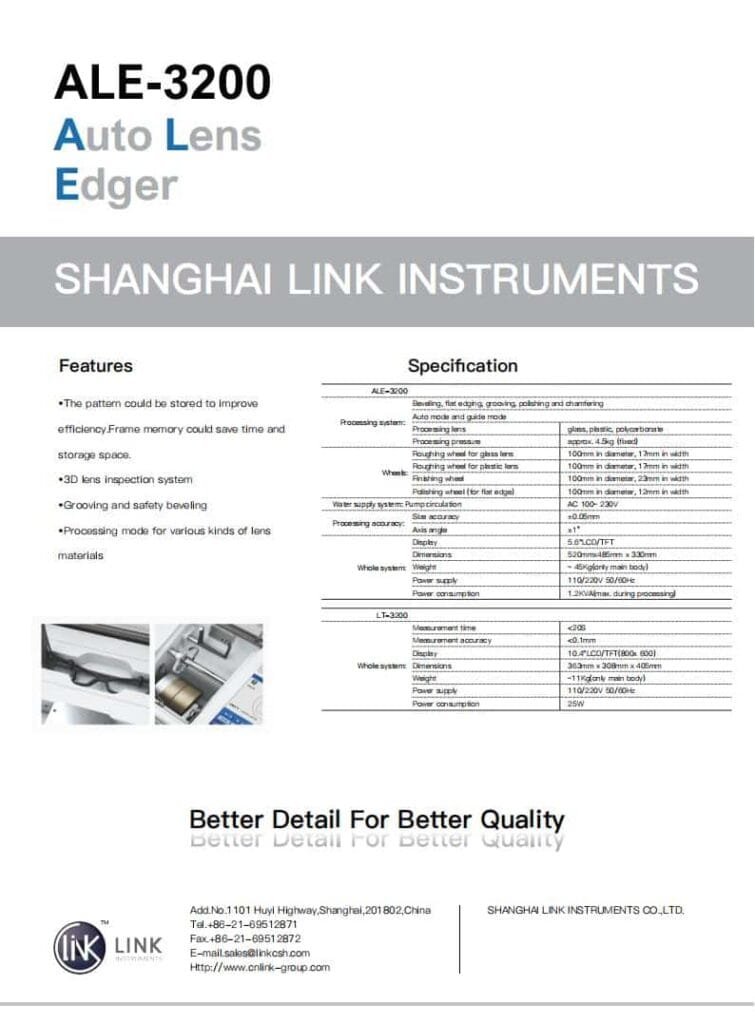

Auto Lens Edger
| I | Processing system |
|---|---|
| Processing system: | Beveling, flat edging, grooving, polishing and chamfering |
| Processing lens: | glass, plastic, polycarbonate |
| Processing pressure: | approx. 4.5kg (fixed) |
| II | Wheels |
| Roughing wheel for glass lens: | 100mm in diameter, 17mm in width |
| Roughing wheel for plastic lens: | 100mm in diameter, 17mm in width |
| Finishing wheel: | 100mm in diameter, 23mm in width |
| Polishing wheel (for flat edge): | 100mm in diameter, 12mm in width |
| III | Water supply system |
| Pump circulation: | AC 100~ 230V |
| IV | Processing accuracy |
| Size accuracy: | ±0.05mm |
| Axis angle: | ±1° |
| VI | Whole system |
| Display: | 5.6"LCD/TFT |
| Dimensions: | 520mmx485mm x 330mm |
| Weight: | ~ 45Kg(only main body) |
| Power supply: | 110/220V 50/60Hz |
| Power consumption: | 1.2KVA(max. during processing) |
