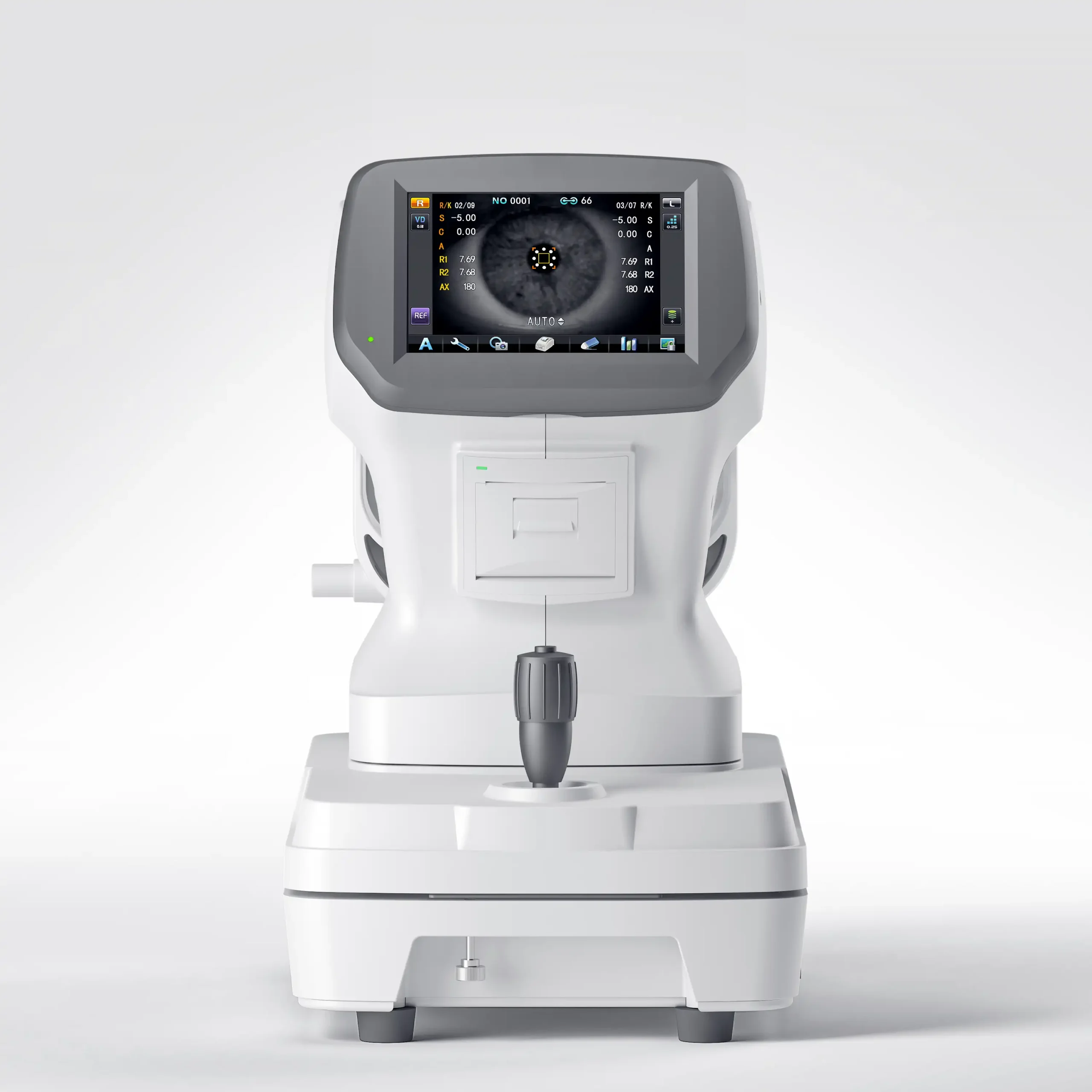

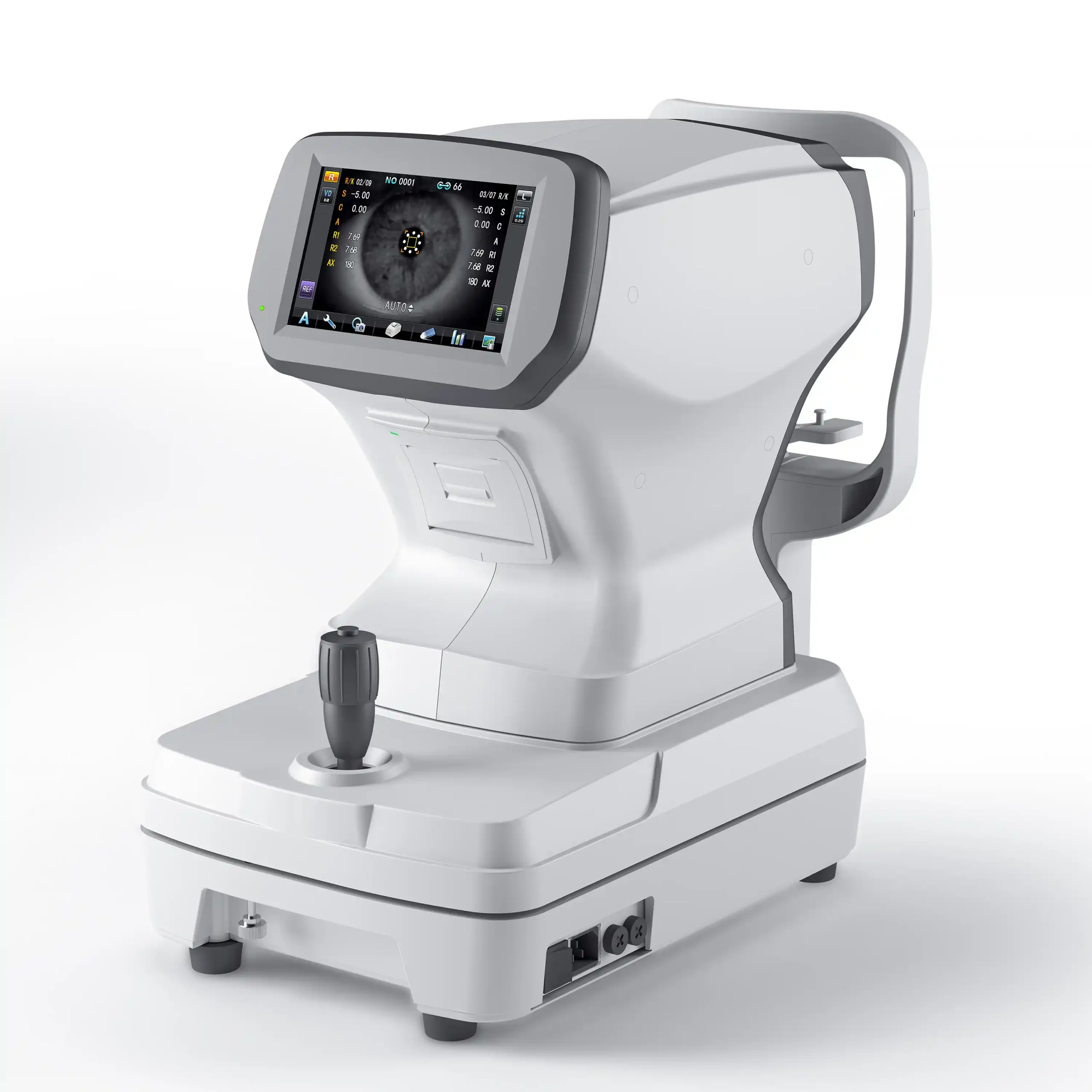

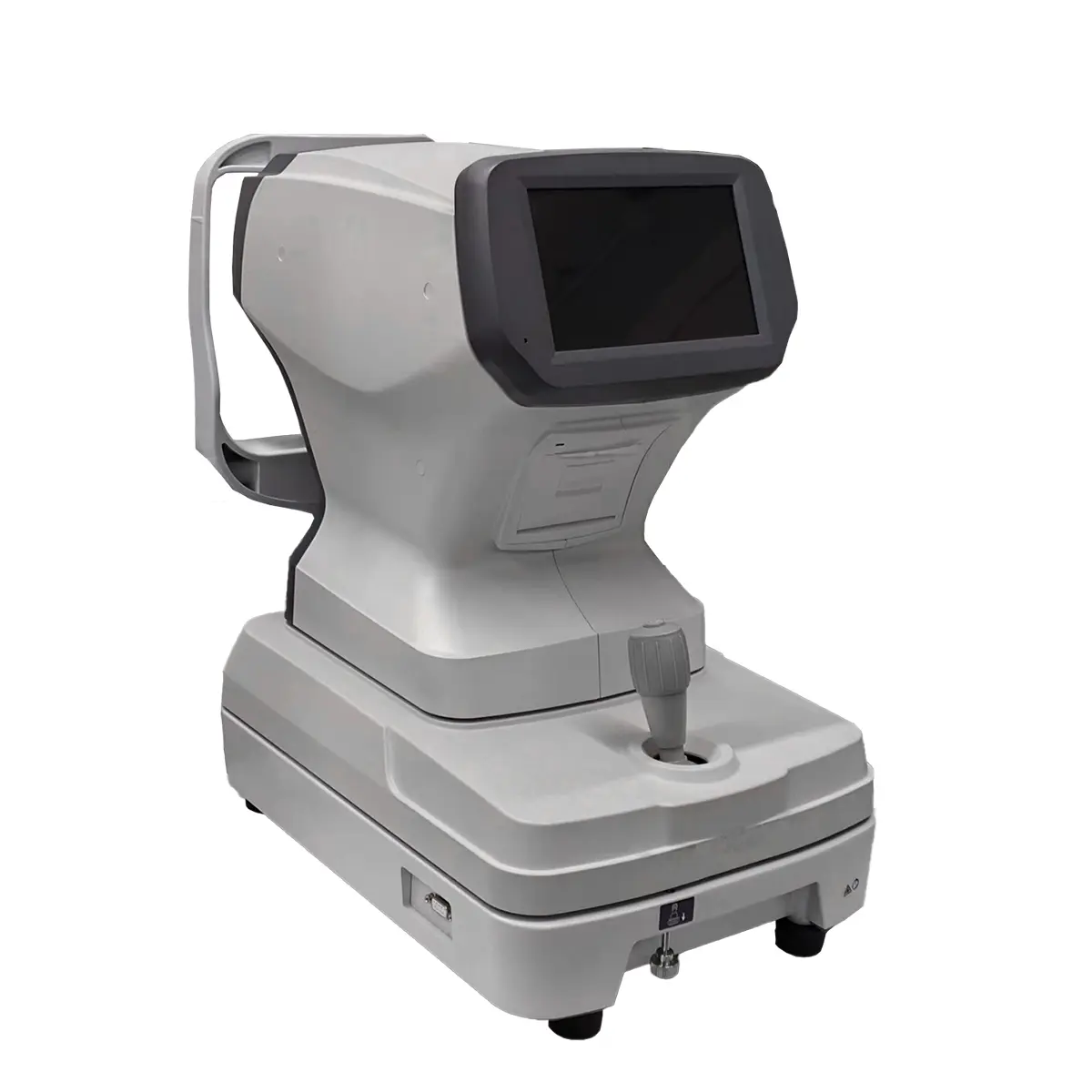

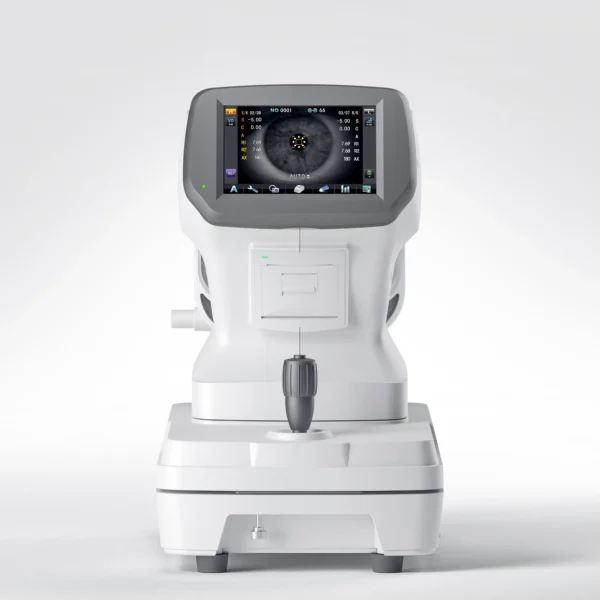

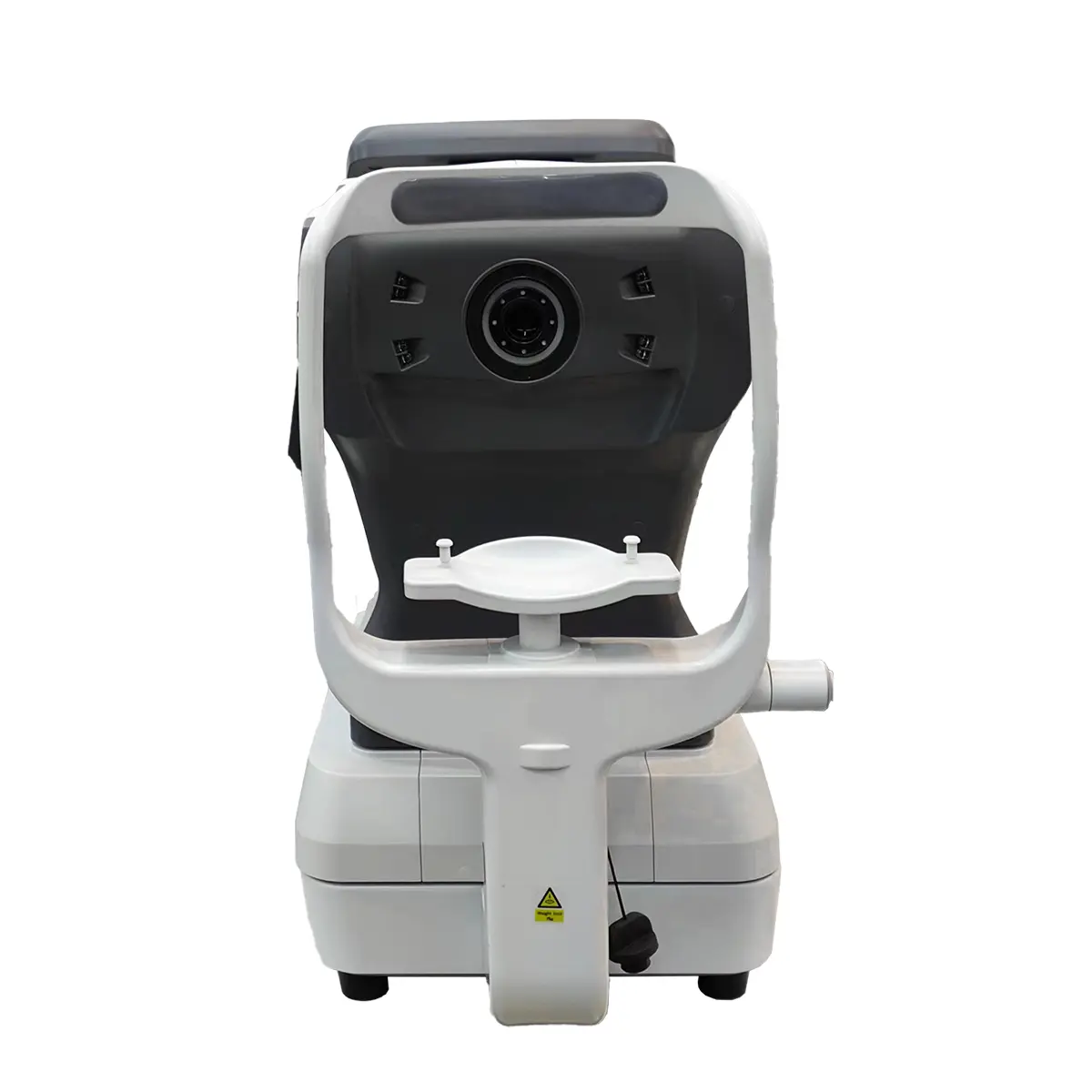

ARK-1800
Feature

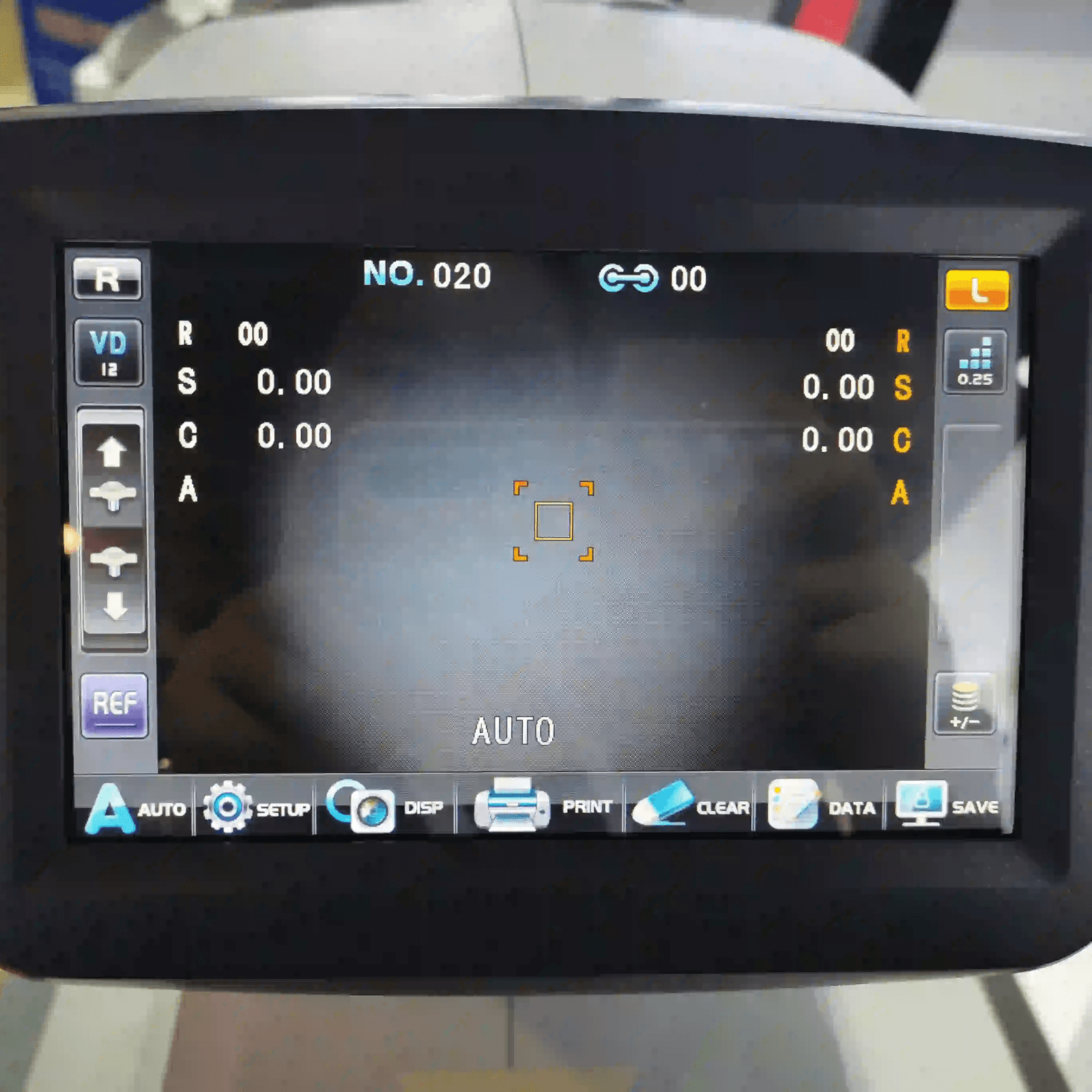

·7”TFT LCD Monitor,Large, high-resolution display with an intuitive interface for easy operation.
·Simply move the device, and it will automatically focus and capture accurate readings.
·Utilizes a high-quality hexagonal prism and sensitive CCD for unmatched measurement accuracy.
·Supports spherical, cylindrical, and axis measurements with high precision.

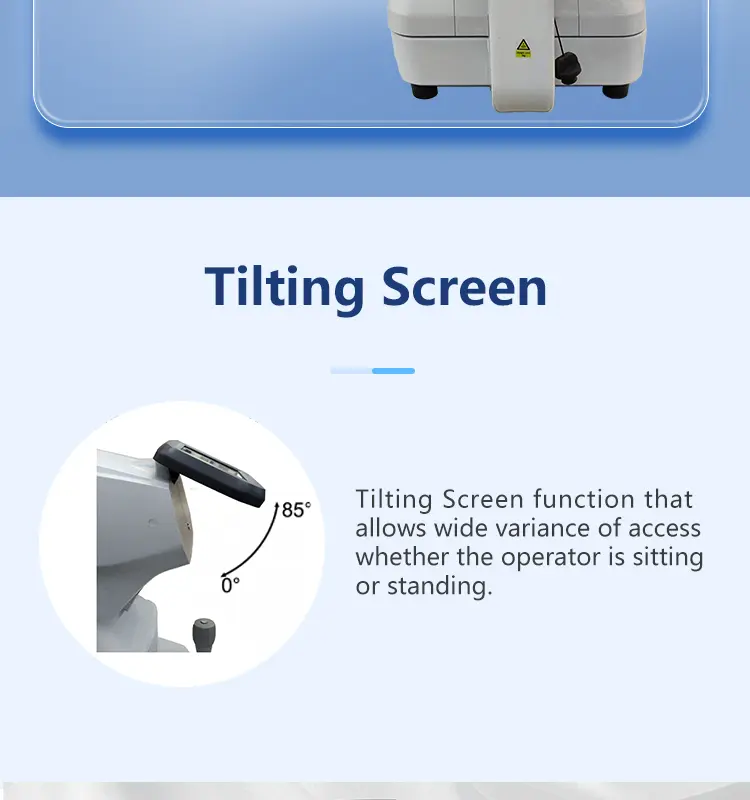

·Adjustable screen for flexible viewing, whether sitting or standing
The ARK-1800 enhances both efficiency and patient comfort, making it an ideal choice for modern optometry practic .

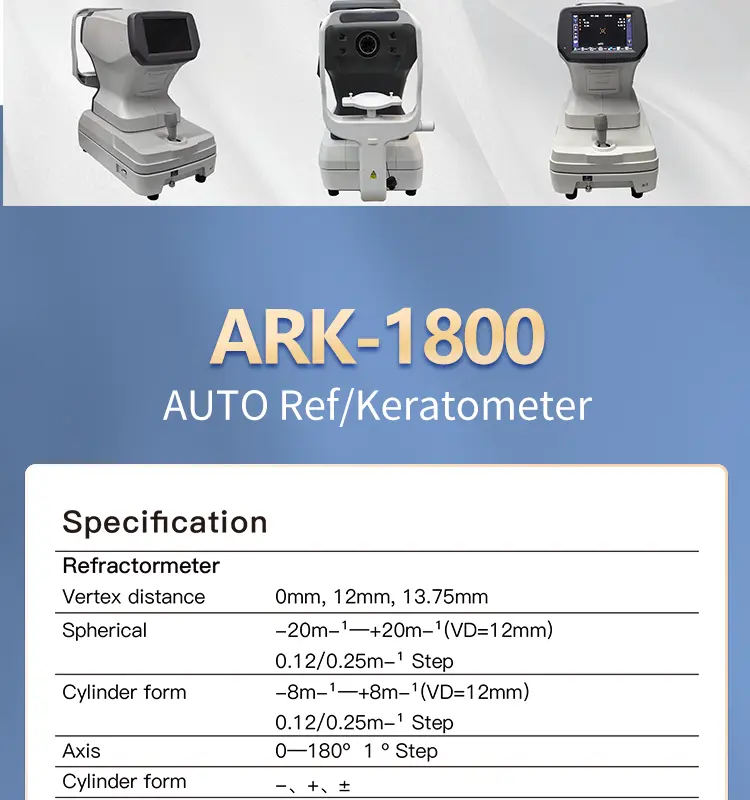

Auto Refractometer/Keratometer
| Vertex distance： | 0mm, 12mm, 13.75mm |
|---|---|
| Spherical： | -20m-¹+20m-¹(VD=12mm)（0.12/0.25m-¹Step） |
| Axis： | 0—180º（ 1 º Step） |
| Cylinder form： | 二、十、土 |
| Pupil distance： | 45-88mm,1mm Step |
| Min. pupil size： | 2.0mm |
| Radius of curvature： | 5.0-10mm (increment: 1mm) |
| Corneal diopter： | 33.75m-¹—67.5m-¹(when comer |
| Corneal astigmatism： | 0.0-8.0m-¹(increment selectable |
| Axis | 1-180º (increment: 1º) |
| Corneal diameter： | 2.0-14.0mm (increment: 0.1mm) |
| Chart： | Follw-up coloful fogging chart system |
| Memory of data： | 10 measure valure for each right and left eye |
| Display： | 7″LCD/TFT |

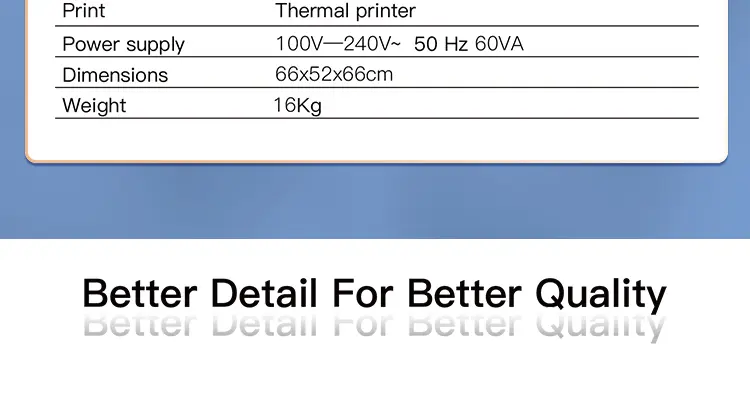

| Print： | Thermal printer |
| Power supply： | 100V—240V~ 50 Hz 60VA |
| Dimensions： | 66x52x66cm |
| Weight： | 16Kg |
