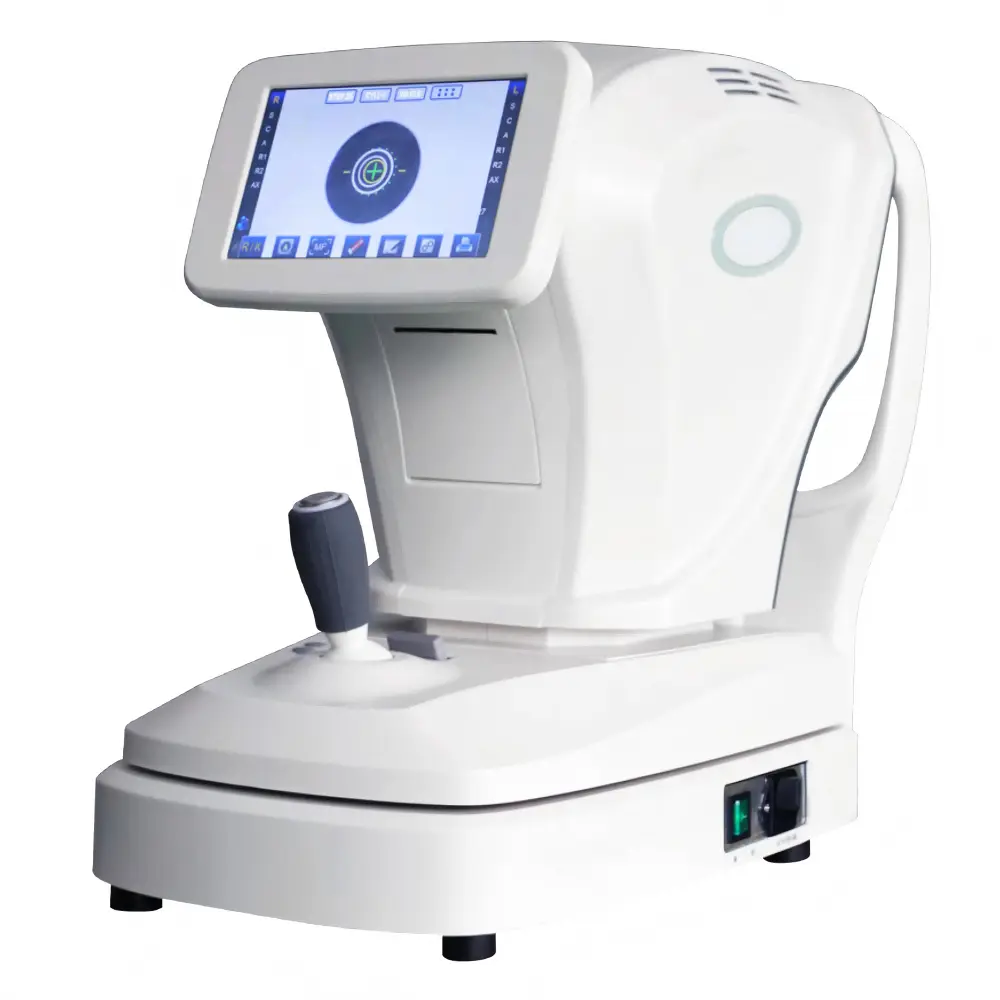

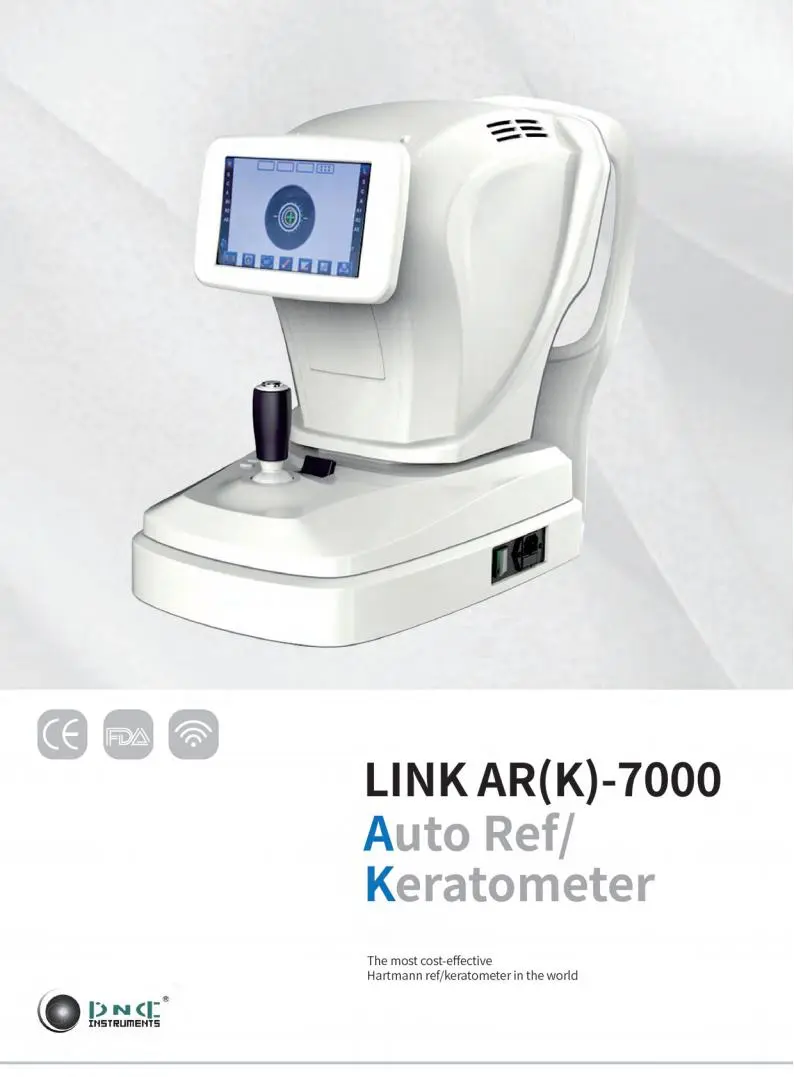

ARK-7000
Feature
· Dual lighting modes, adjustable brightness to reduce glare and patient discomfort
· Enhanced optical system, ensures accurate measurements even in small pupils
· Smooth chinrest and forehead support, designed for patient stability and comfort
· Fast auto-alignment and focusing, improves workflow efficiency in busy clinics

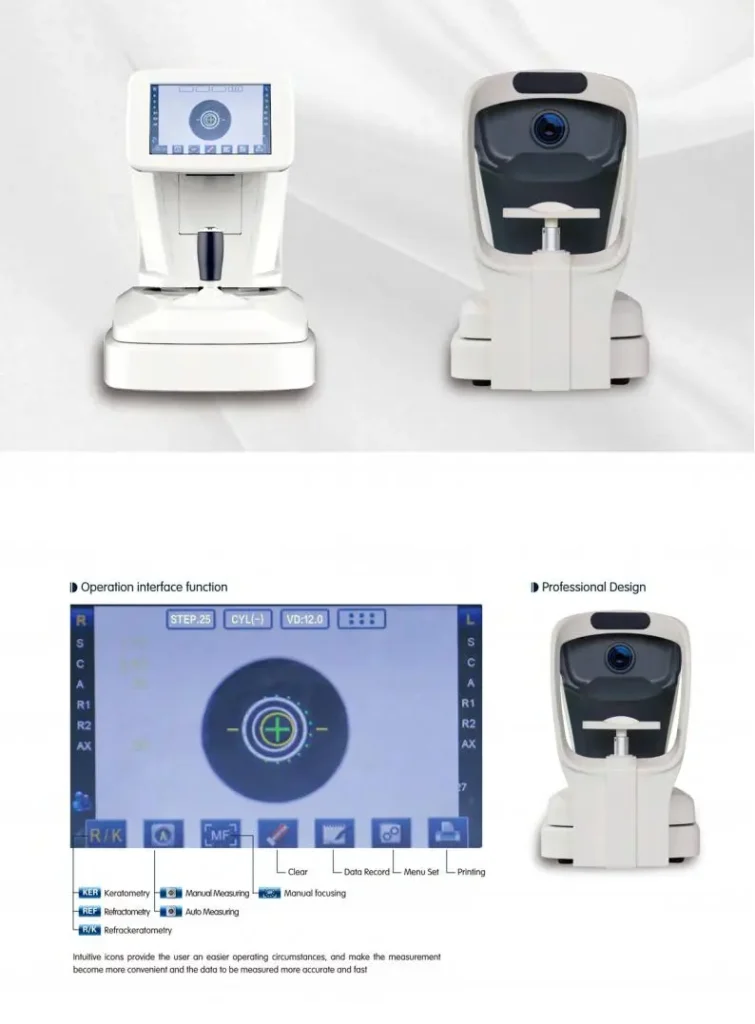

· 7” touchscreen display, supports intuitive operation and easy result preview
· Compact design, ideal for clinics aiming to balance performance and space

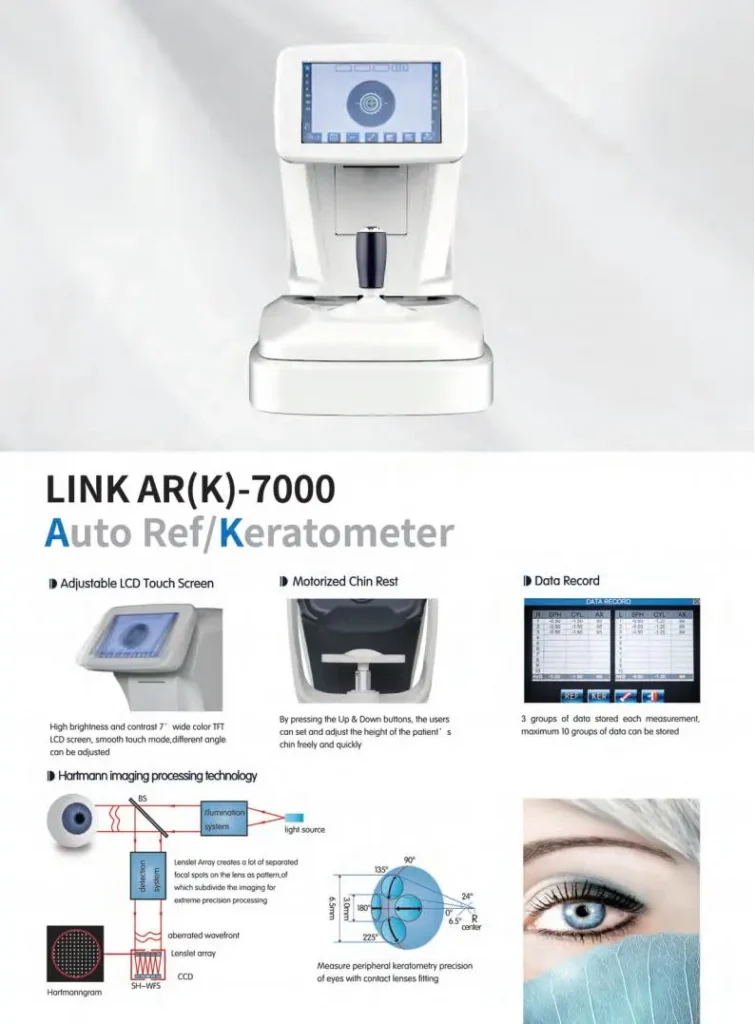

The ARK-7000 combines precision refraction and keratometry with enhanced user and patient comfort. Designed with dual lighting modes and improved optical alignment, it provides a smoother experience for both operators and patients.
Auto Refractometer/Keratometer

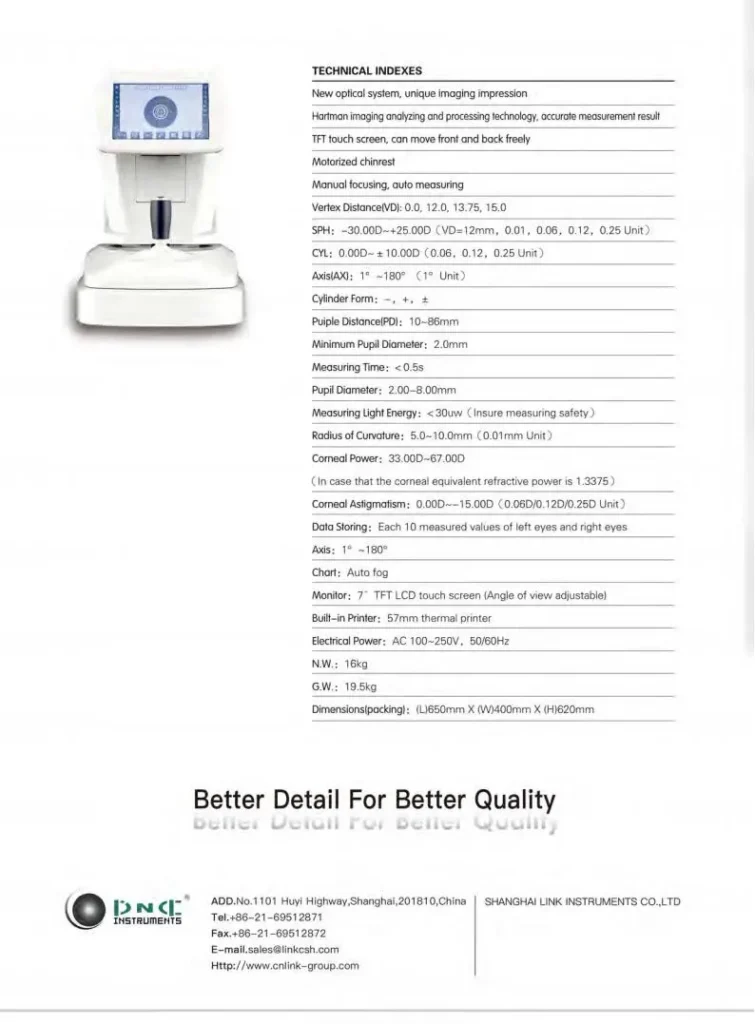

| SPH: | -30.00D~+25.00D（VD=12mm,0.01,0.06,0.12,0.25Unit） |
|---|---|
| CYL: | 0.00D~±10.00D（0.06.0.12,0.25Unit） |
| AxisAX: | 1°~180（1°Unit） |
| Cylinder Form: | -，+，± |
| Puiple Distance(PD): | 10~86mm |
| MinimumPupil Diameter: | 2.Omm |
| Measuring Time: | <0.5s |
| Pupil Diameter: | 2.00-8.00mm |
| Measuring Light Energy: | <3Ouw（Insure measuring safety） |
| Radius of Curvature: | 5.0~10.0mm（0.01mm Unit) |
| Comeal Power: | 33.00D~67.00D |
| Cornea lAstigmafism: | 0.00D~-15.00D（0.06D/0.12D/0.25DUnit） |
| Data Storing: | Each 10 measured values of left eyes and right eyes |
| Axis: | 1°~180° |
| Chart: | Auto fog |
| Monitor: | 7TFT LCD touch screen (Angle ofview adjustable） |
| Built-in Printer: | 57mm thermal printer |
| Electrical Power: | AC 100~250V.50/60Hz |
| N.W.: | 16kg |
| G.W.: | 19.5kg |
| Dimensions(packing): | (L)650mmX(W)400mmXH)620mm |
