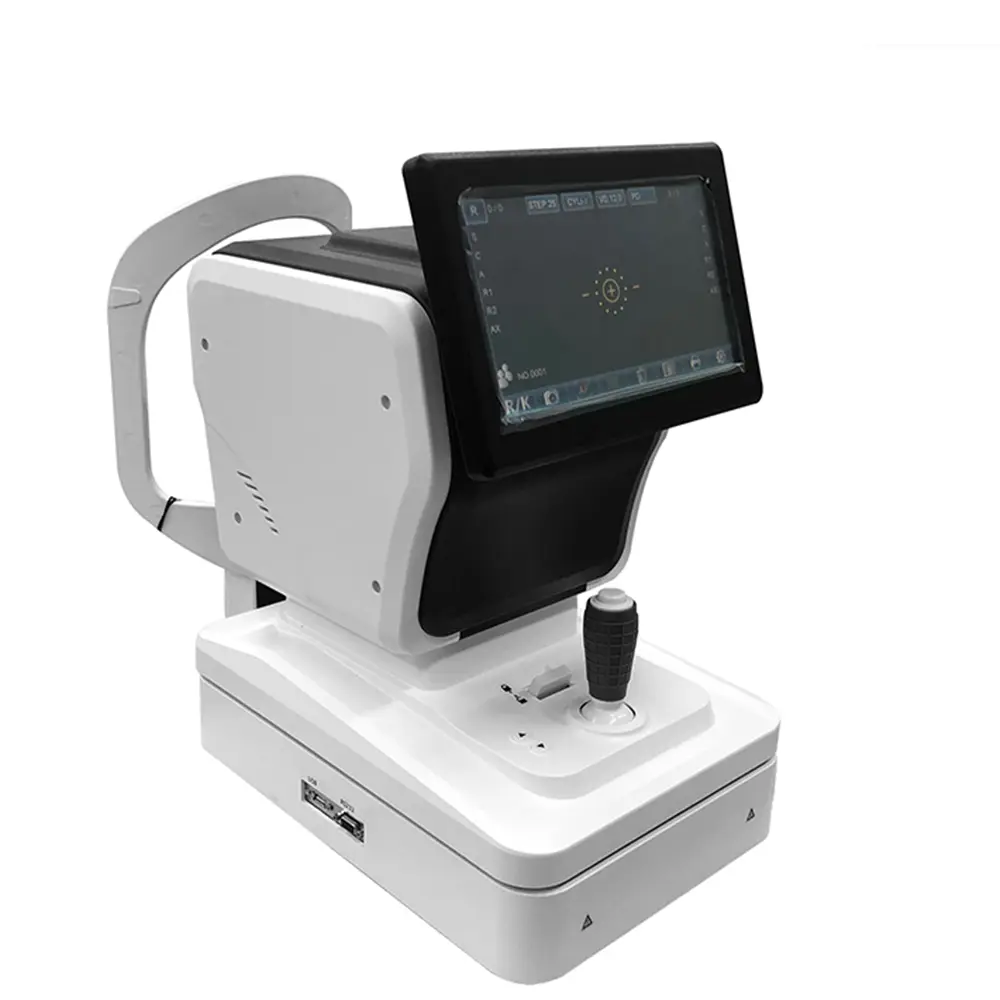

ARK-8500
Feature

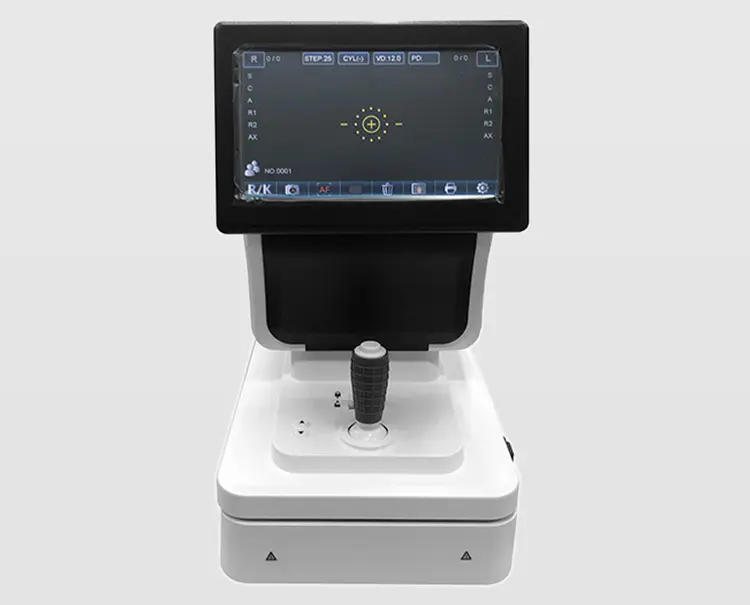

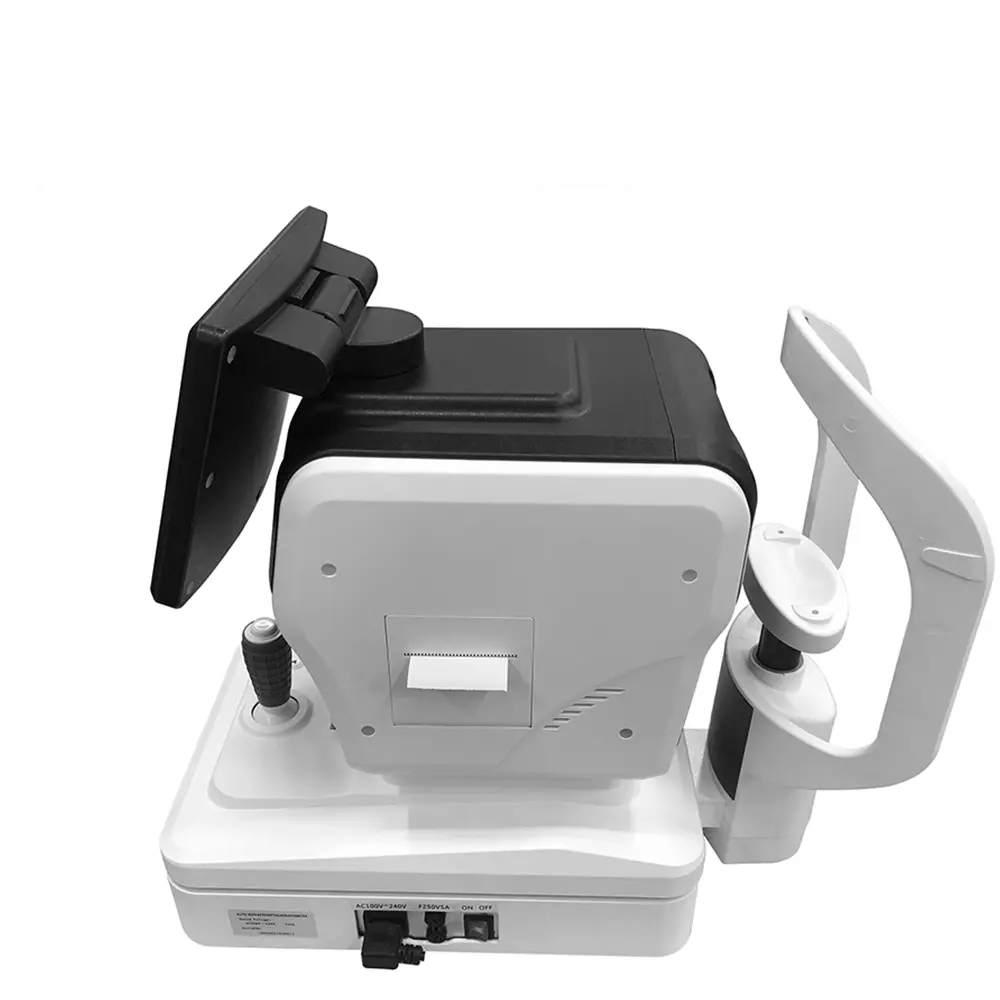

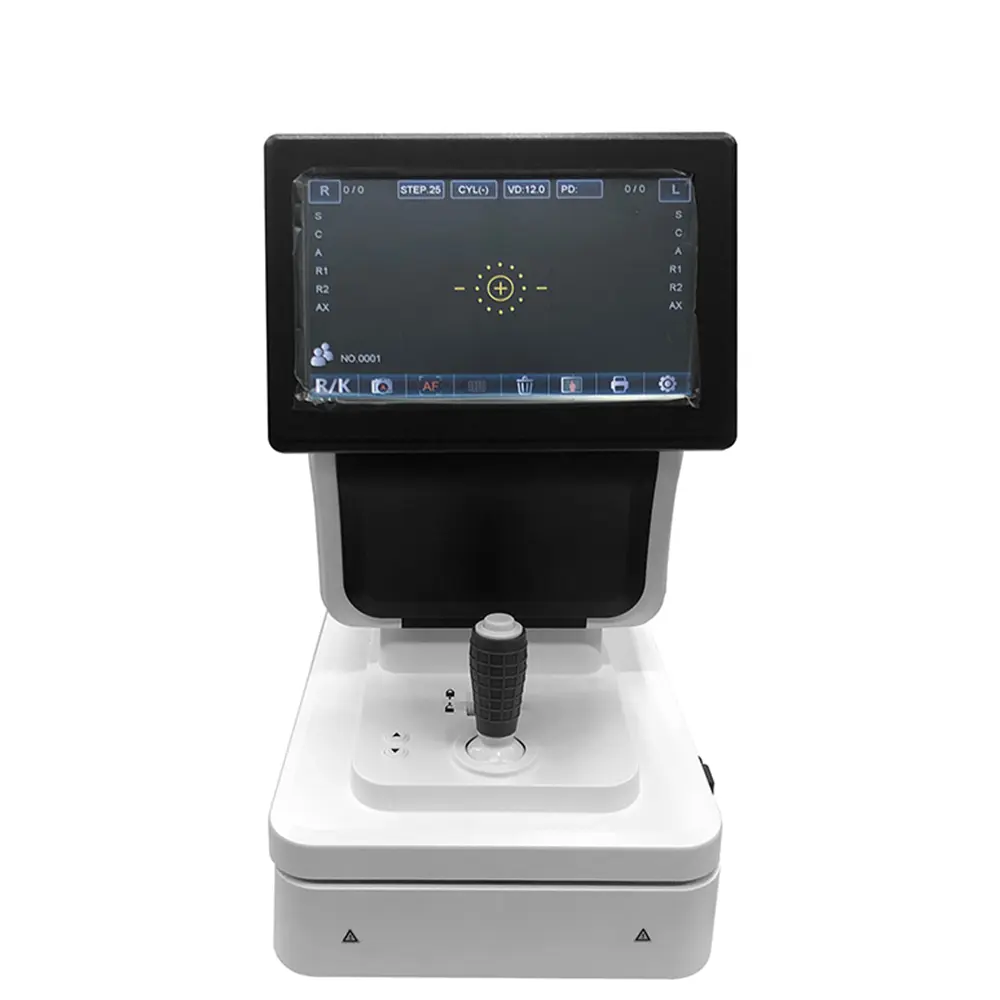

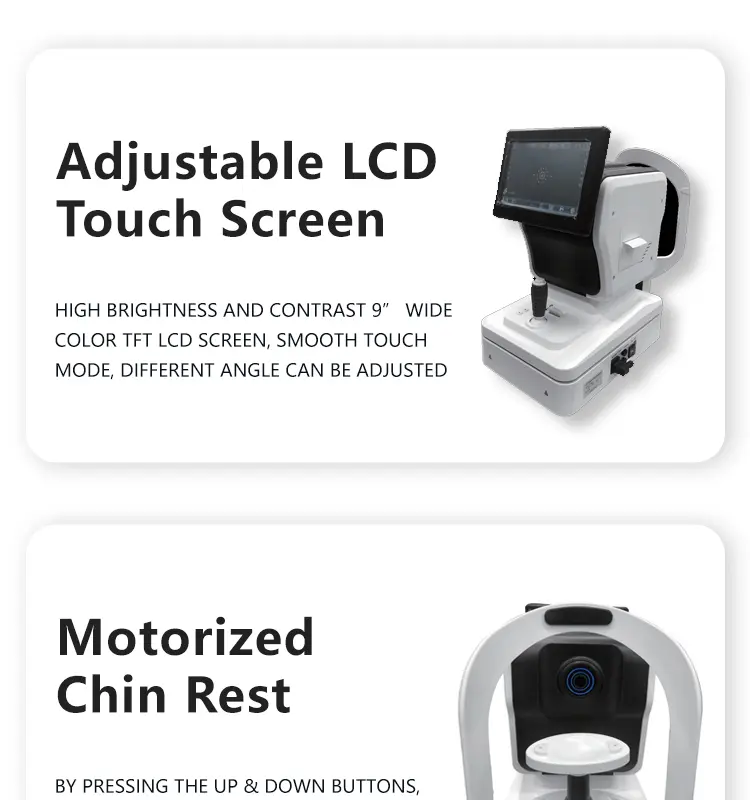

·9-inch Flip TFT Touchscreen,High-resolution, adjustable screen for an intuitive and convenient user experience.

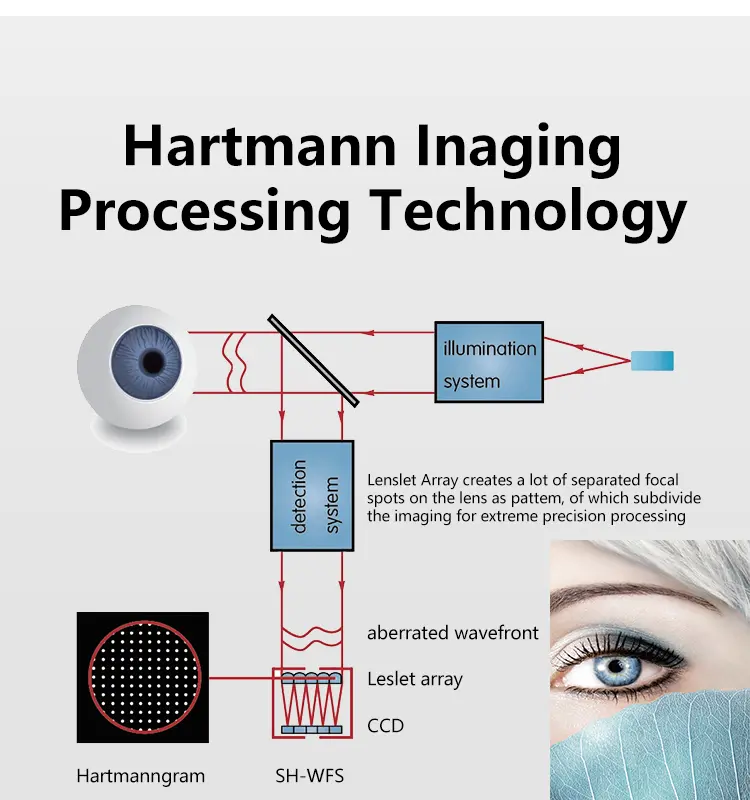

·Provides precise and reliable refractive measurements with advanced image processing.

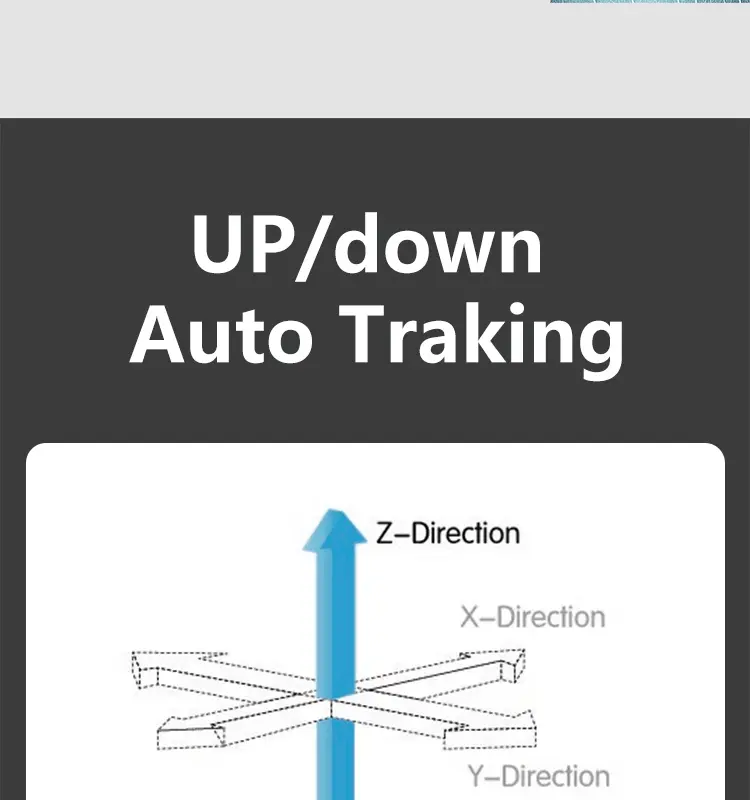

·Ensures fast, accurate, and effortless measurement by automatically detecting the eye position.
·Built-in automatic cutting printer for quick and efficient data output.
The flip touchscreen, auto-tracking capabilities, and seamless data output make ARK-8500 an ideal solution for modern optometry practices.

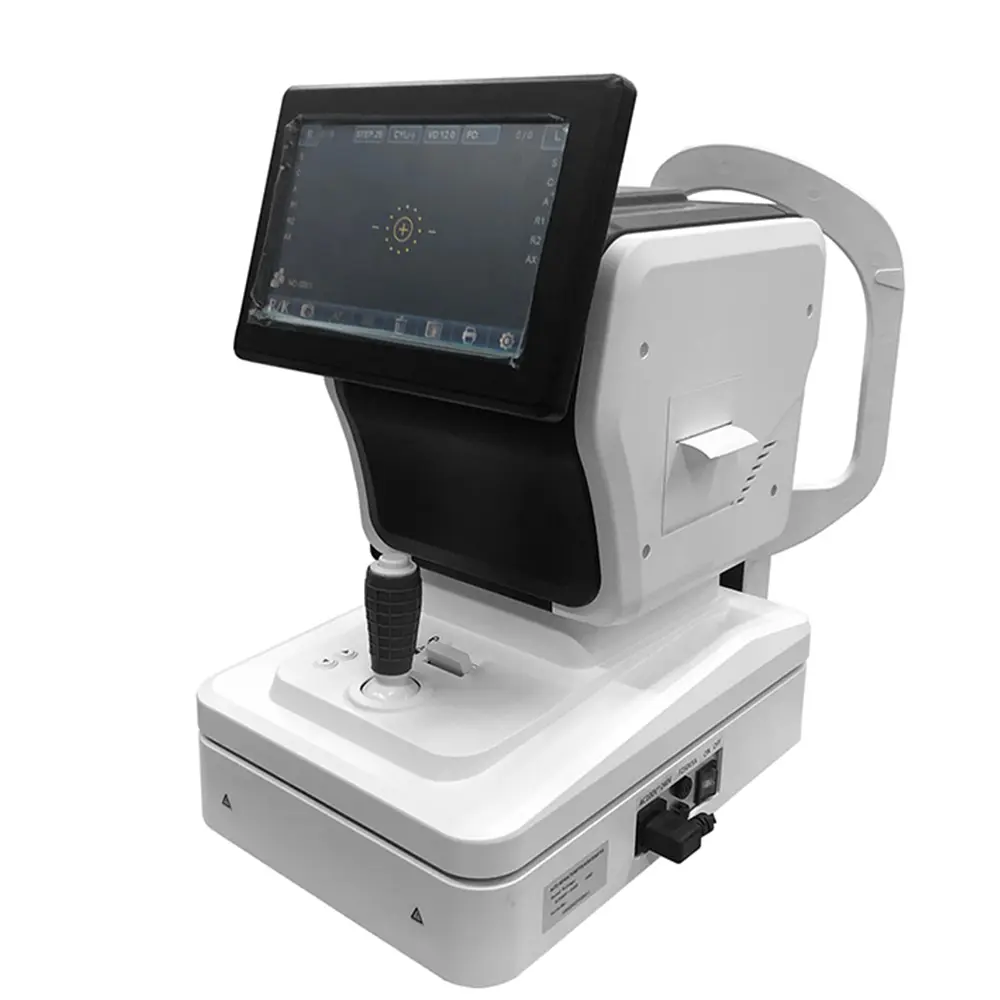

Auto Refractometer/Keratometer

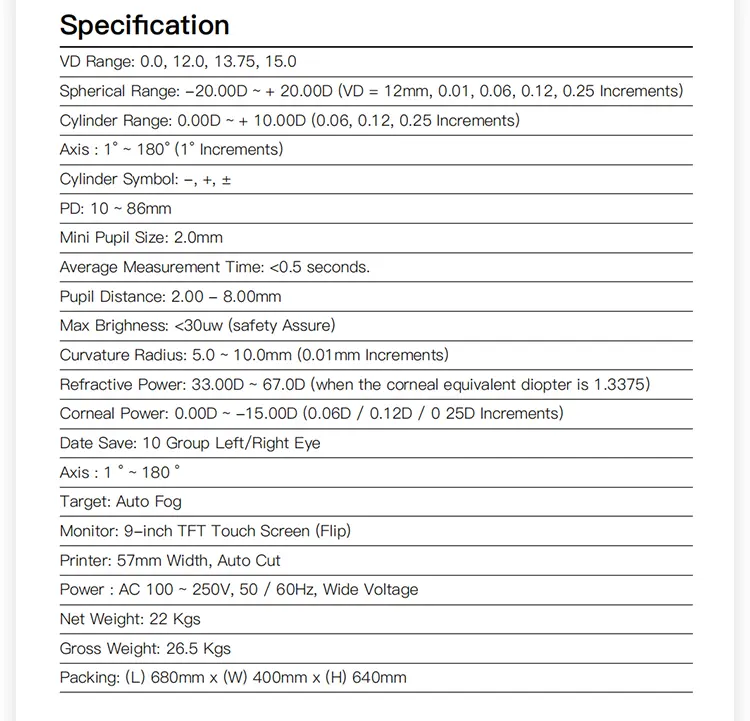

| VD Range: | 0.0, 12.0, 13.75, 15.0 |
|---|---|
| Spherical Range: | -20.00D ~ + 20.00D (VD = 12mm, 0.01, |
| Cylinder Range: | 0.00D~±10.00D (0.06, 0.12, 0.25 |
| Cylinder Symbol: | -, +, ± |
| PD: | 10 ~ 86mm |
| Mini Pupil Size: | 2.0mm |
| Average Measurement Time: | <0.5 seconds. |
| Pupil Distance: | 2.00-8.00mm |
| Max Brighness: | <30uw (safety Assure) |

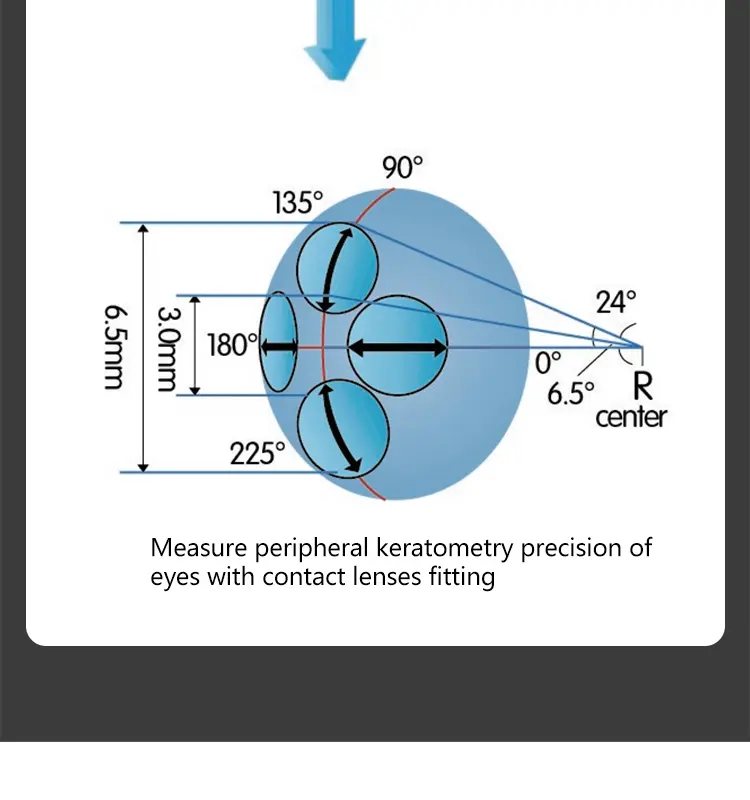

| Curvature Radius: | 5.0 ~ 10.0mm (0.01mm Increments) |
| Refractive Power: | 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375) |
| Corneal Power: | 0.00D ~ -15.00D (0.06D / 0.12D / 0 25DIncrements) |

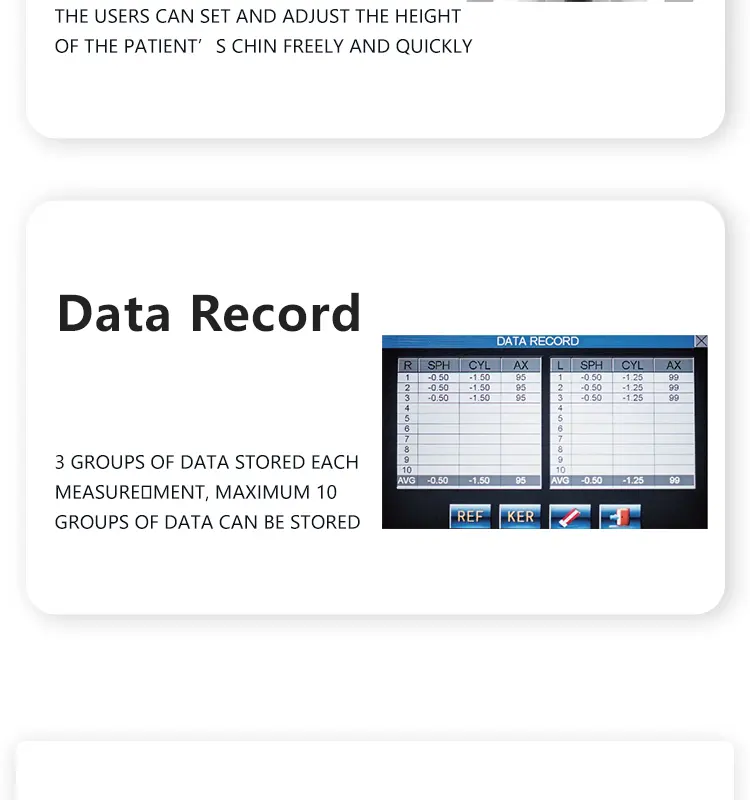

| Date Save: | 10 Group Left/Right Eye |
| Axis: | 1 ° ~ 180 ° |
| Target： | Auto Fog |

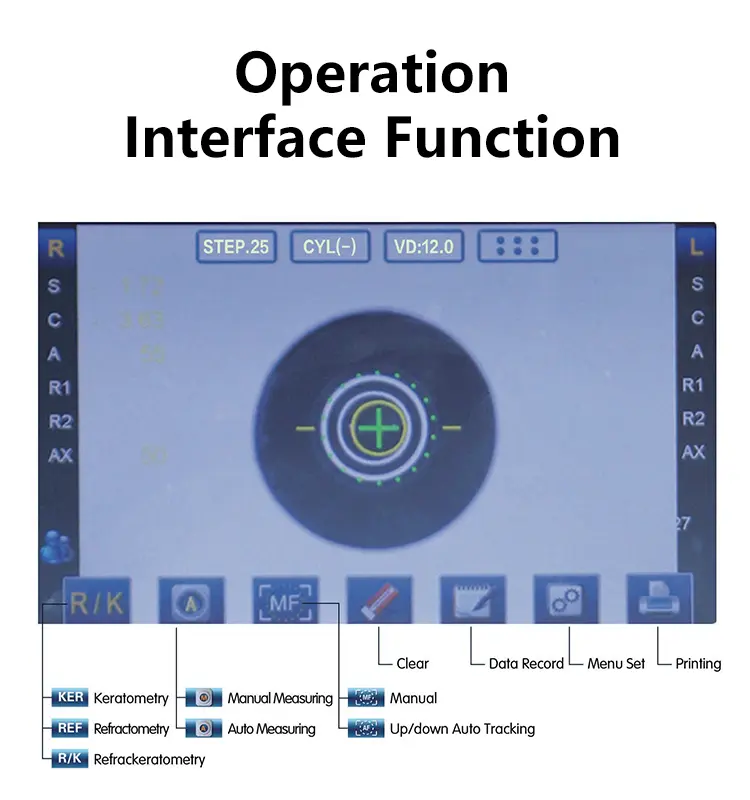

| Monitor: | 9-inch TFT Touch Screen (Flip) |
| Printer: | 57mm Width, Auto Cut |

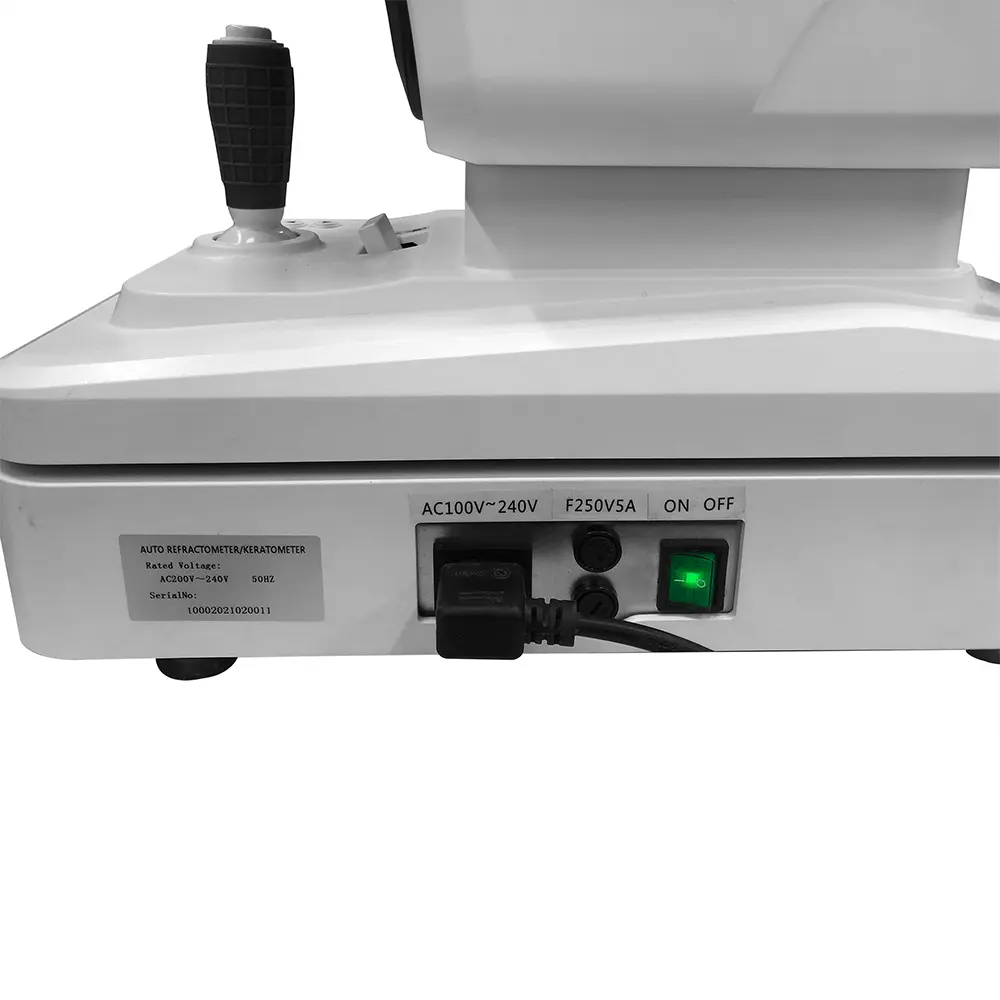

| Power: | AC 100 ~ 250V, 50 / 60Hz, Wide Voltage |
| Net Weight: | 22 kgs |
| Gross Weight： | 26.5 kgs |
| Packing: | (L) 680mm x (W) 400mm x (H) 640mm |
