CT-1000

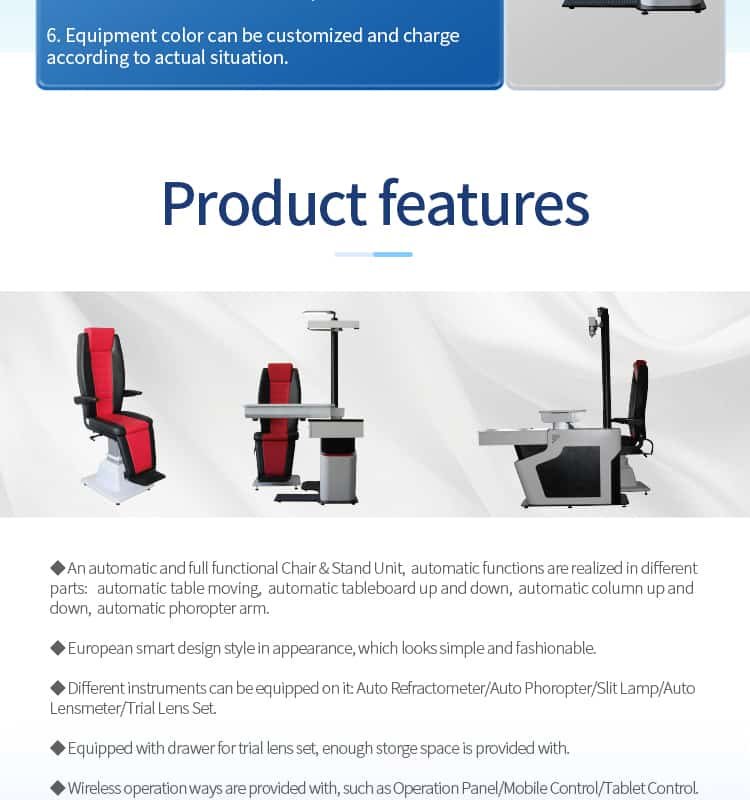

Feature

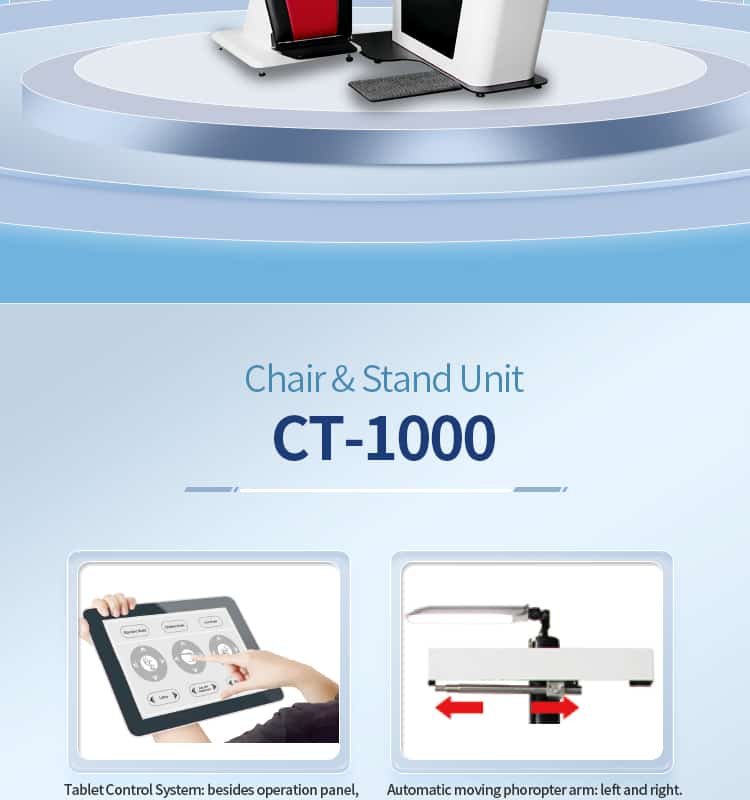

・Wireless control via operation panel, mobile app, or tablet.
・A spacious drawer for trial lens storage.
・A leather chair with a linear motor for quiet operation.
・Customizable equipment color options.

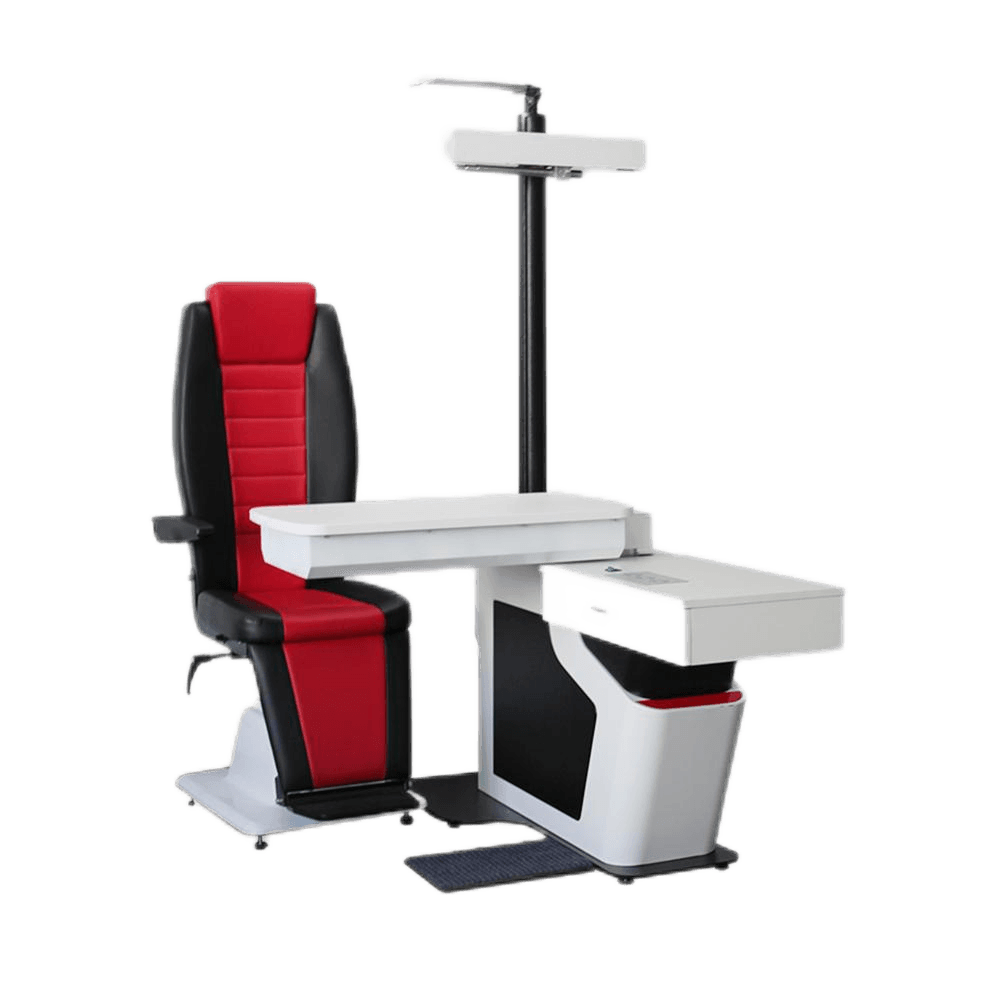

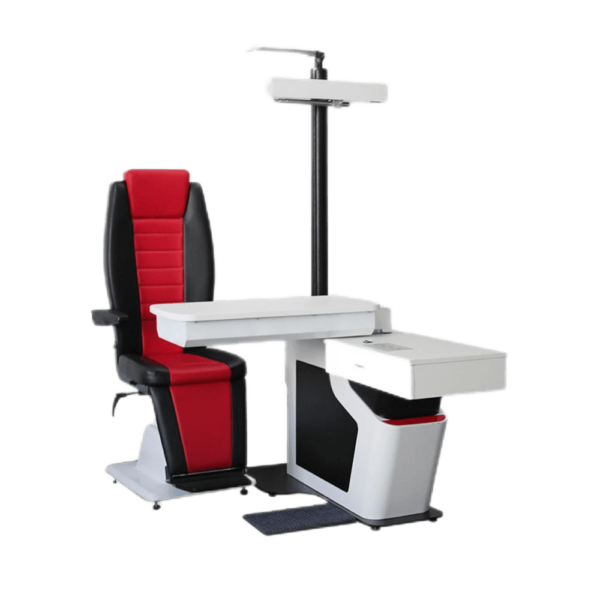

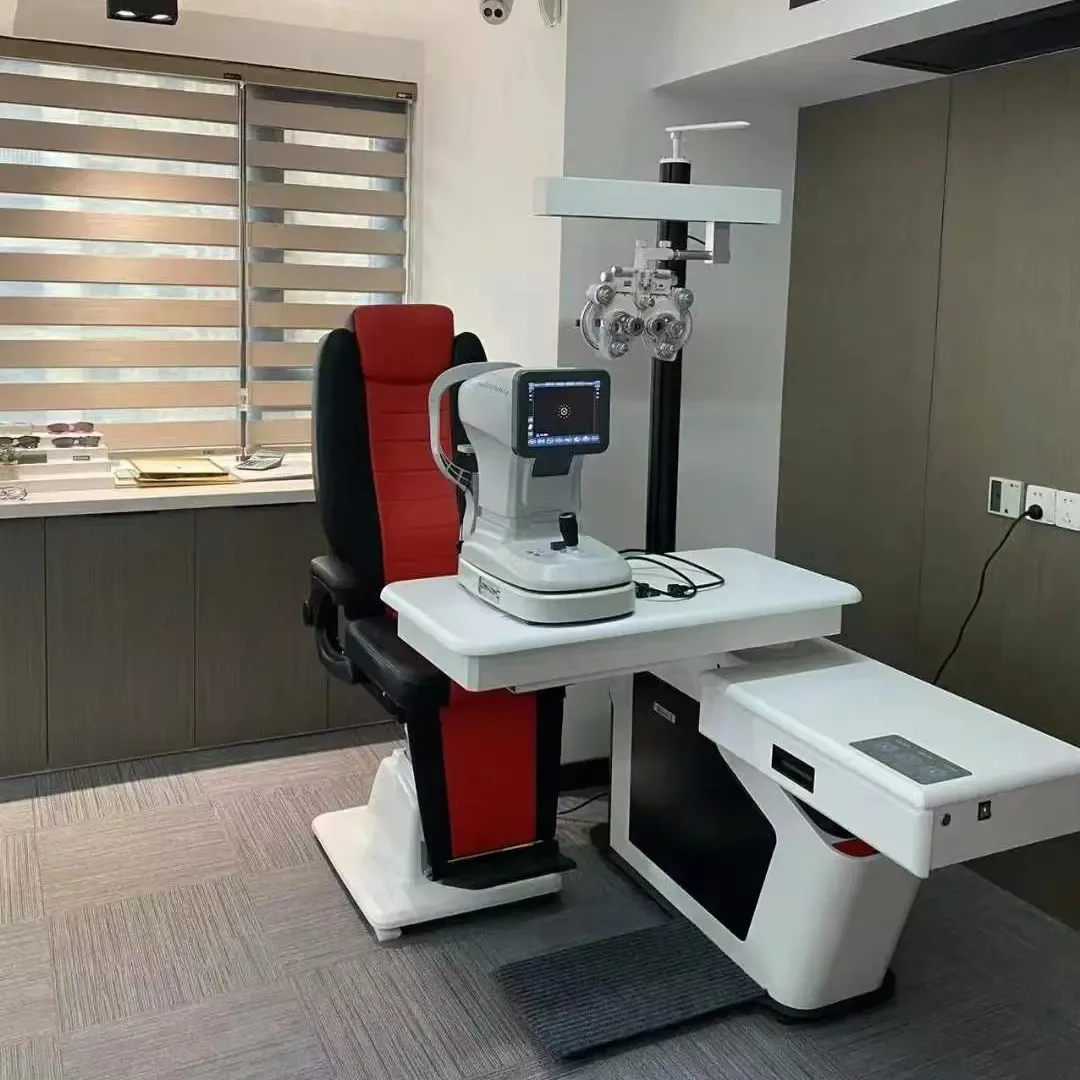

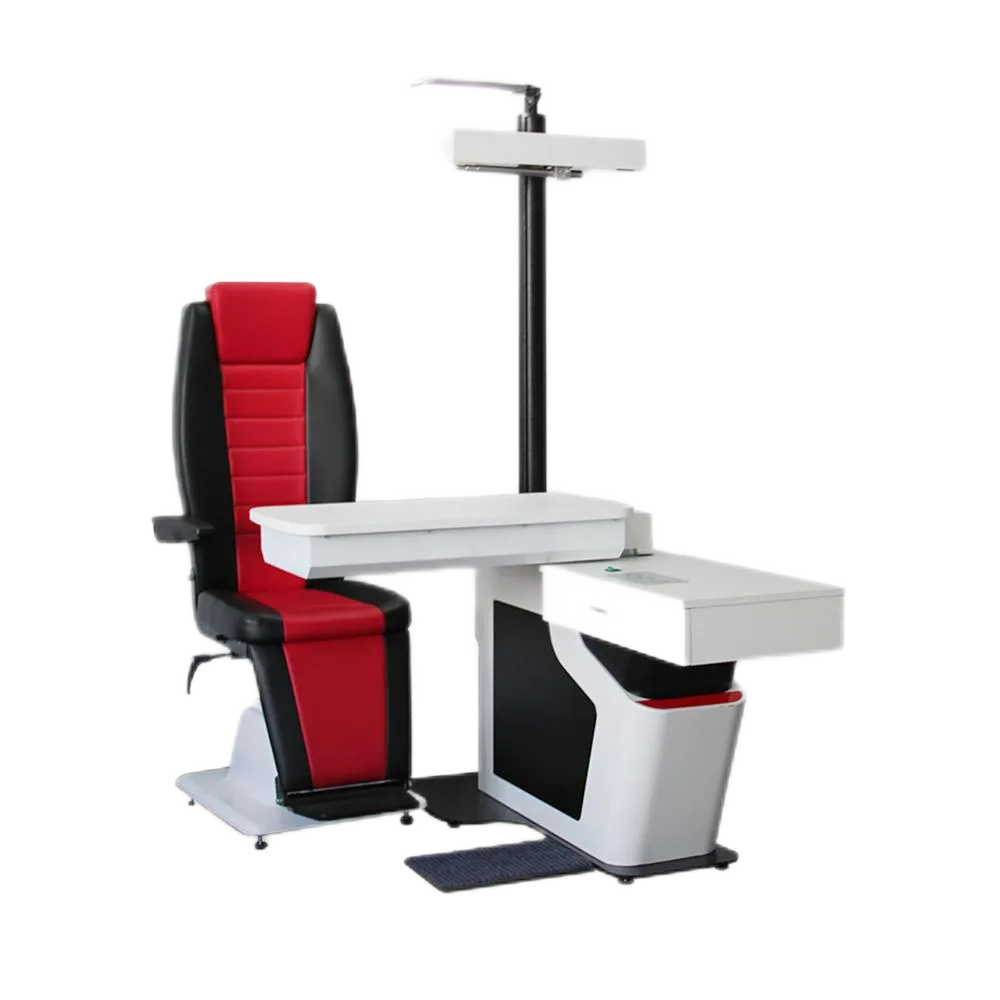

The CT-1000 is an advanced, fully automatic Chair & Stand Unit designed for eye clinics, hospitals, and optical shops.
Ophthalmic Unit

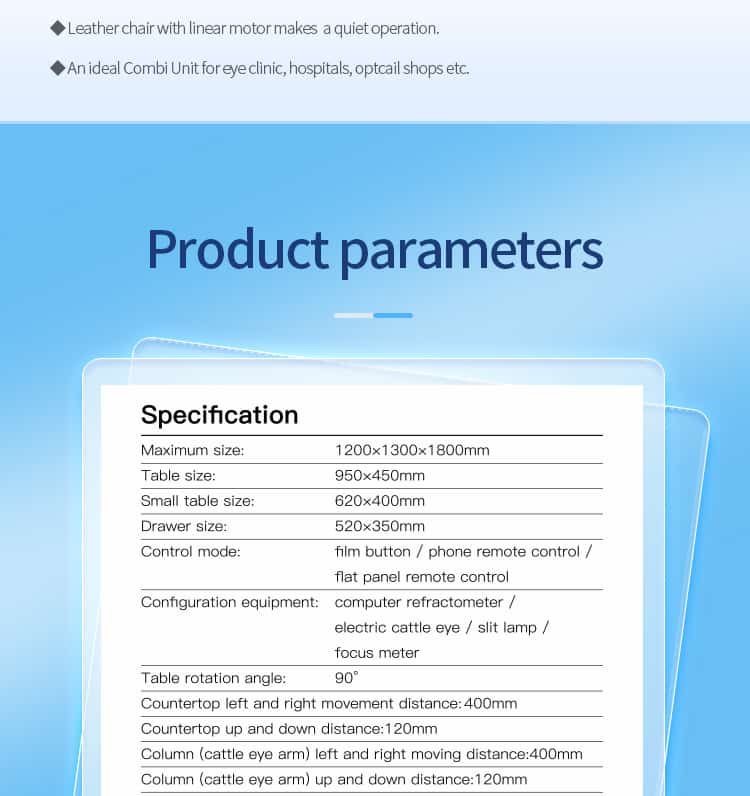

Maximum size: | 1200×1300×1800mm |
---|---|
Table size: | 950×450mm |
Small table size: | 620×400mm |
Drawer size: | 520×350mm |
Control mode: | film button / phone remote control / |
Configuration equipment: | : computer refractometer / electric cattle |
Table rotation angle: | 90° |

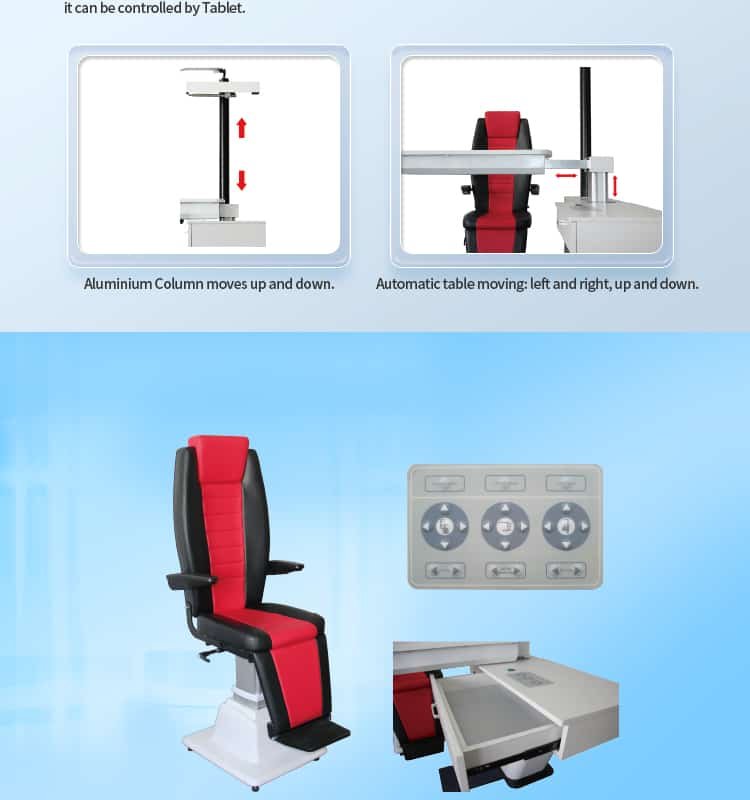

Countertop left and right movement distance: | 400mm |
Countertop up and down distance: | 120mm |
Column (cattle eye arm) left and right moving distance: | 400mm |
Column (cattle eye arm) up and down distance: | 120mm |

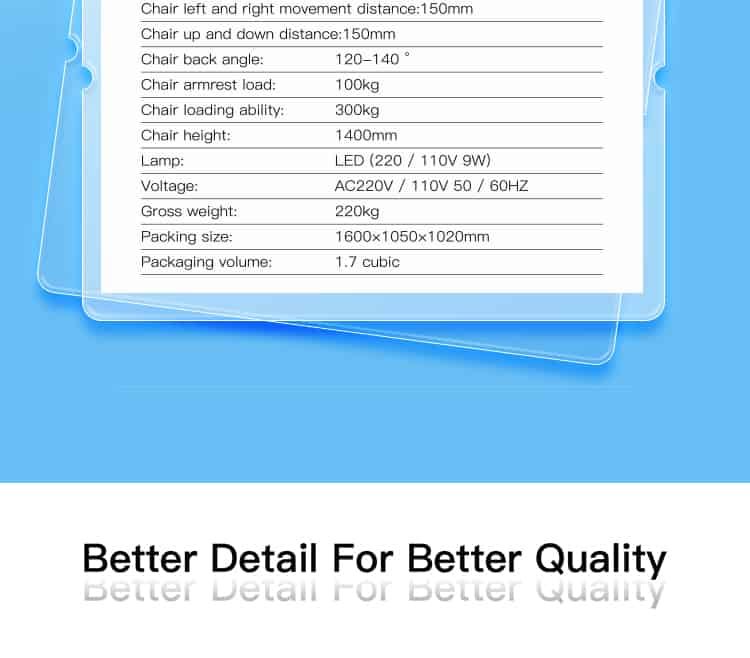

Chair left and right movement distance: | 150mm |
Chair up and down distance: | 150mm |
Chair back angle: | 120-140 ° |
Chair armrest load: | 100kg |
Chair loading ability: | 300kg |
Chair height: | 1400mm |
Lamp: | LED (220 / 110V 9W) |
Voltage: | AC220V / 110V 50 / 60HZ |
Gross weight: | 220kg |
Packing size: | 1600×1050×1020mm |
Packing volume: | 1.7 cubic |
