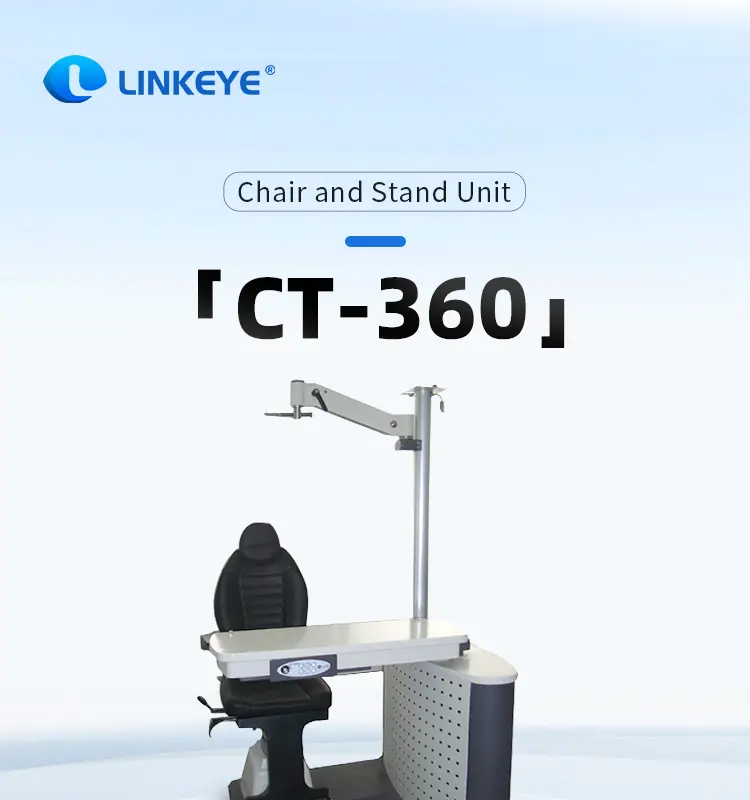

CT-360
Feature
· 335mm tabletop sliding distance and 90° rotation
· Seat supports 250kg load, with smooth reclining (120°–140°) and 150mm height adjustment
· Left-right seat movement, 45° seat rotation and aerodynamic backrest enhance patient comfort
· ABS hard plastic table, precise swing arm, and rechargeable ophthalmoscope socket included

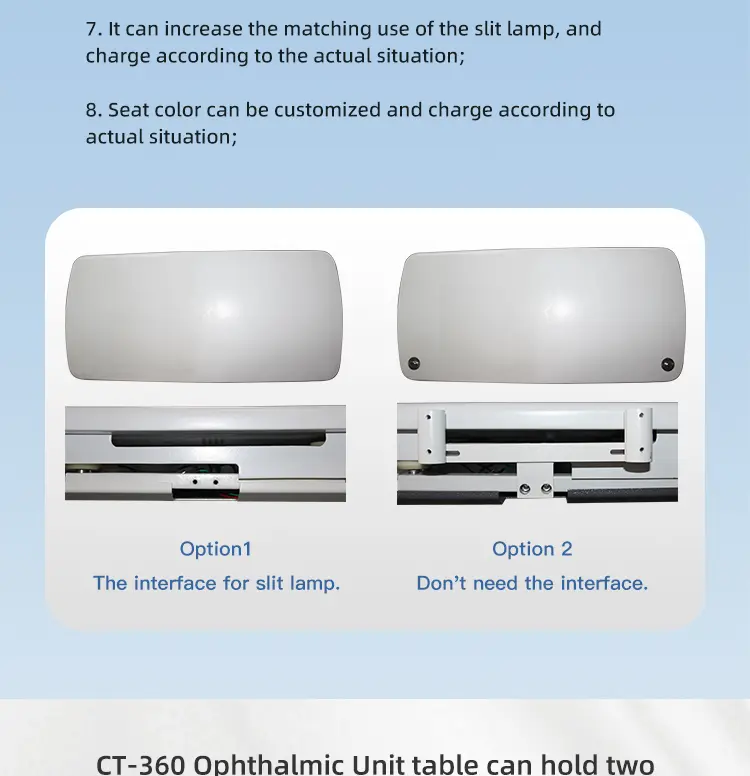

· Customizable seat color and optional slit lamp interface support varied configurations
· LED spotlight (24V 5W) provides clear illumination during exams

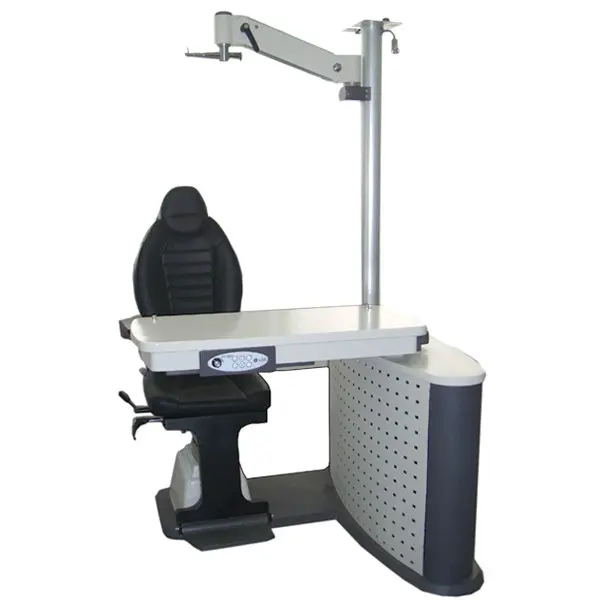

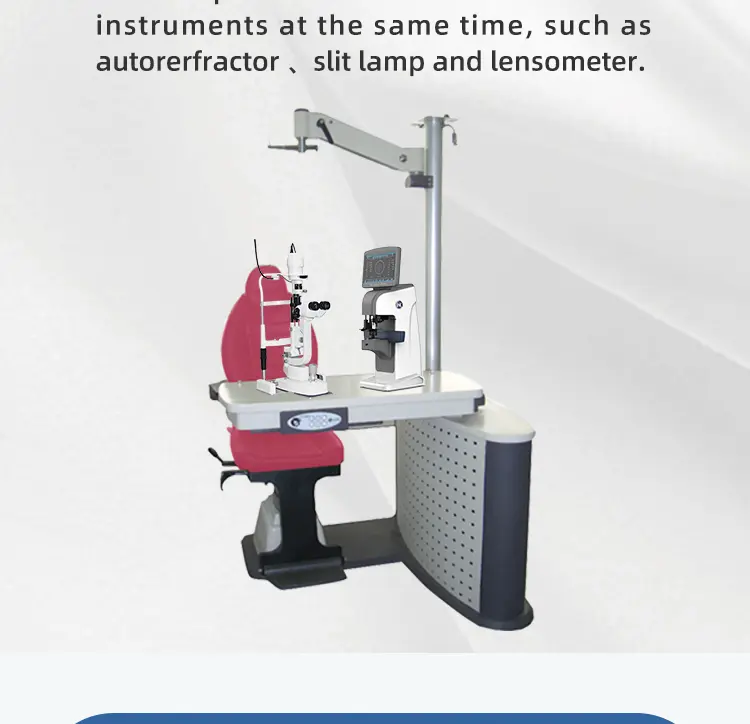

The CT-360 is a robust, dual-instrument chair & stand unit built for clinical-grade performance. With wide movement ranges and solid load capacity, it supports stable operation across various patient types and diagnostic setups.
0phthalmic Unit

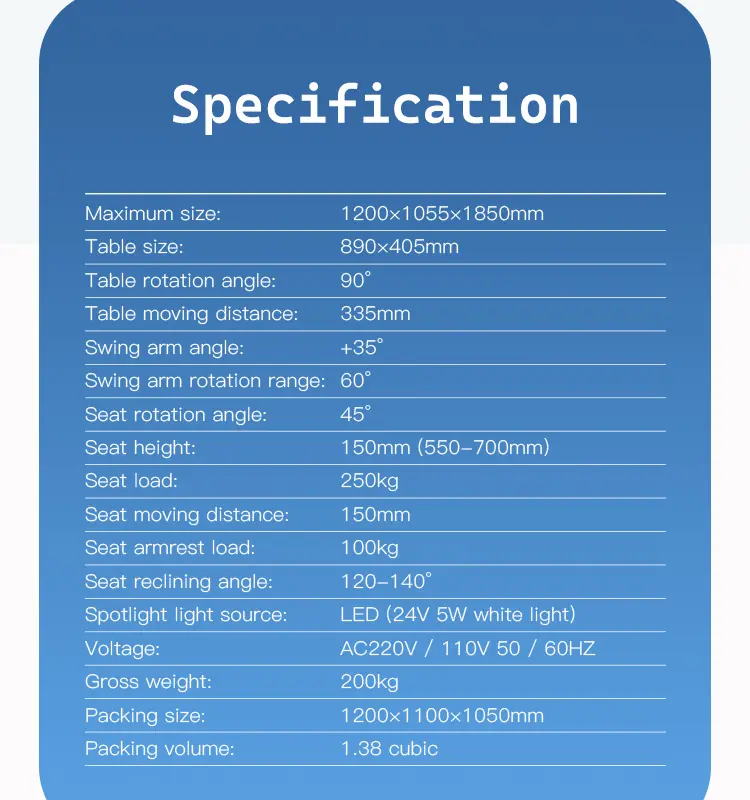

| Maximum size: | 1200x1055x1850mm |
|---|---|
| Table size: | 890x405mm |
| Tablerotation angle: | 90° |
| Table moving distance: | 335mm |
| Swing arm angle: | +35° |
| Swing arm rotation range: | 60° |
| Seat rotation angle: | 45° |
| Seat height: | 150mm(550-700mm) |
| Seat load: | 250kg |
| Seat moving distance: | 150mm |
| Seat armrest load: | 100kg |
| Seat reclining angle: | 120-140° |
| Spot light source: | LED (24V5Wwhite light) |
| Voltage: | AC 220V/110V50/60HZ |
| Gross weight: | 200kg |
| Packing size: | 1200x1100x1050mm |
| Packing volume: | 1.38cubic |
