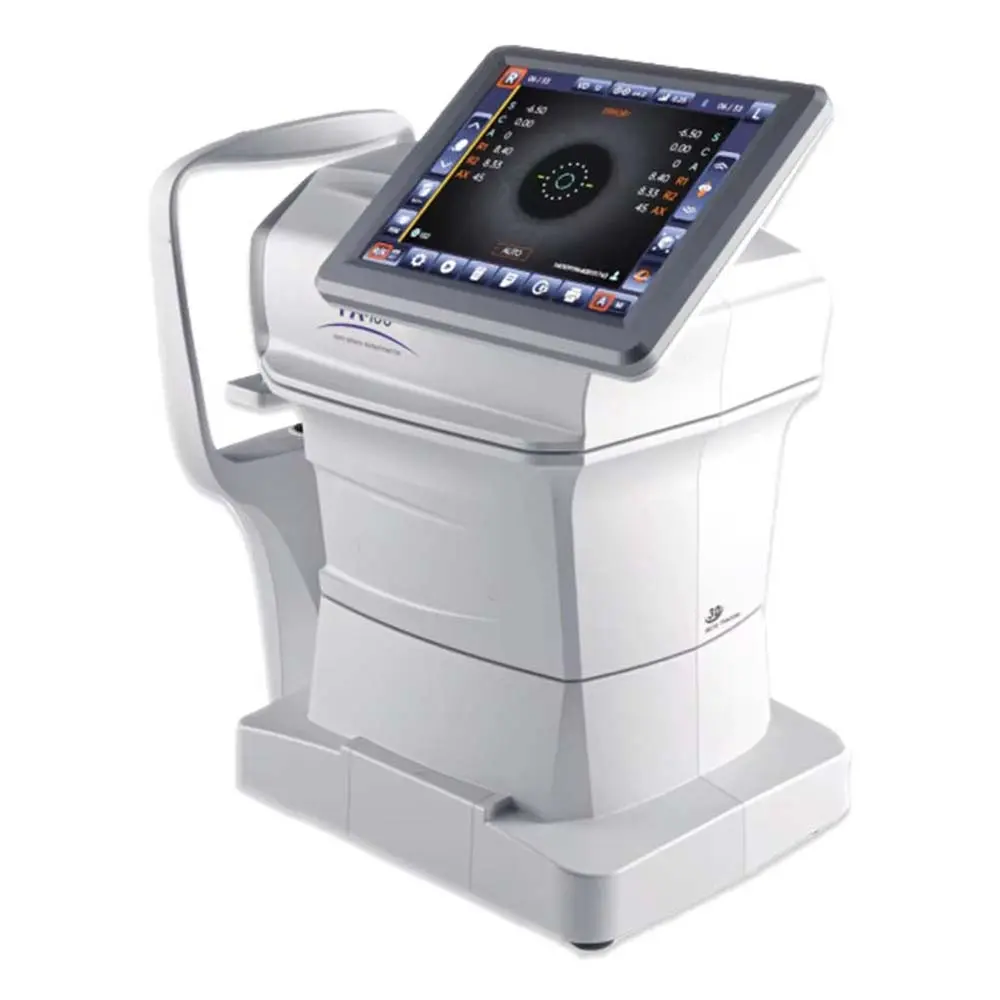

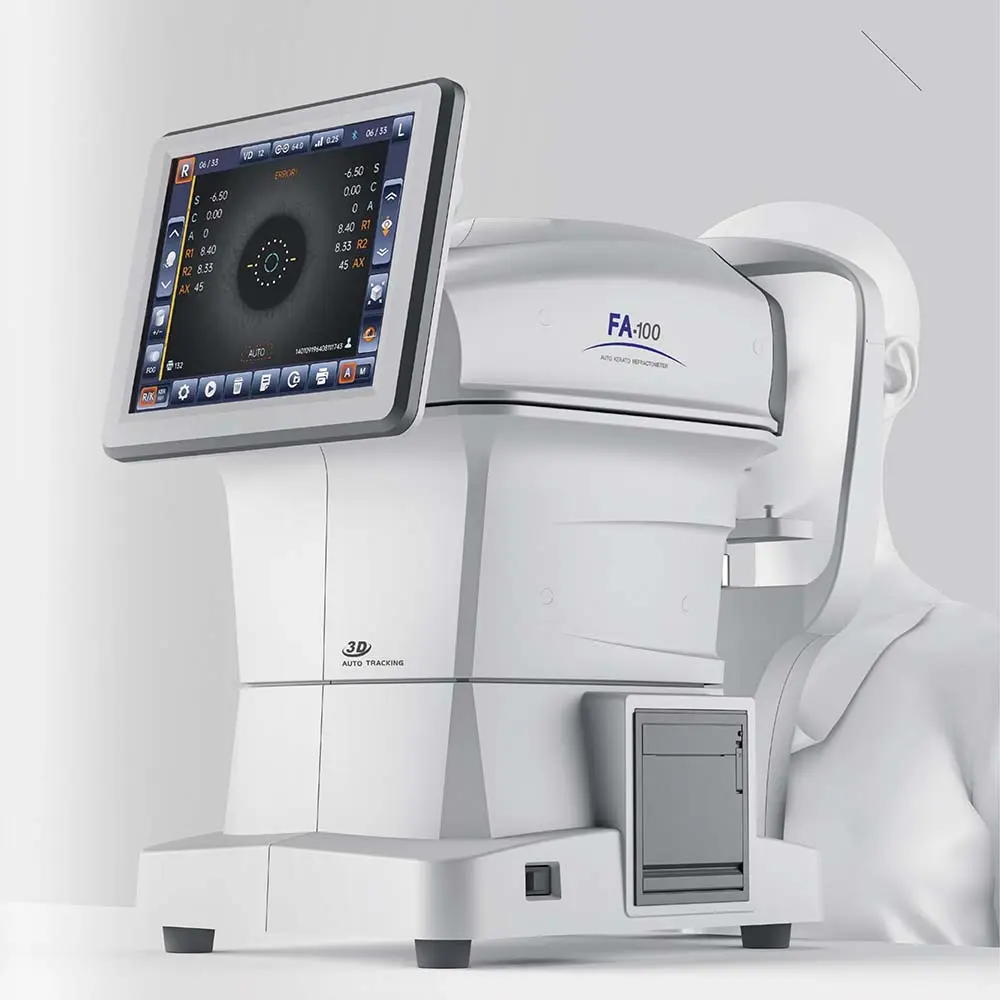

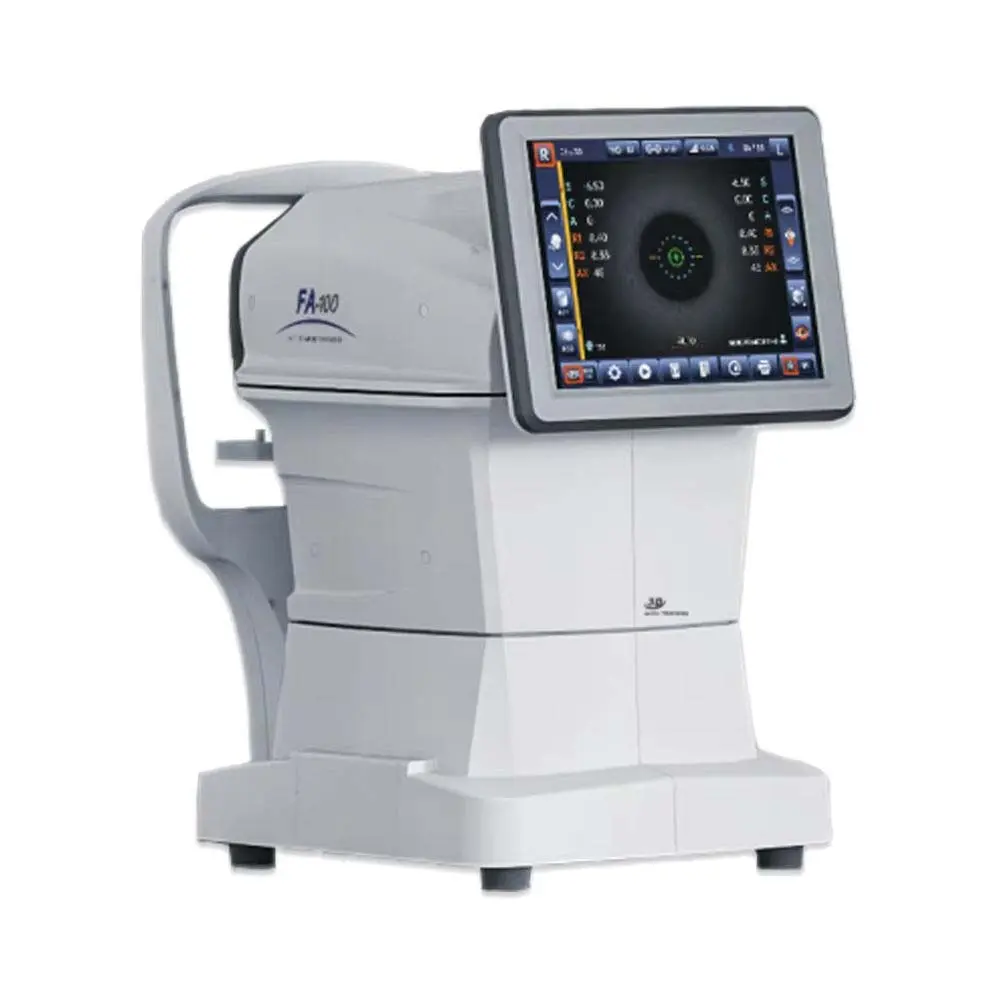

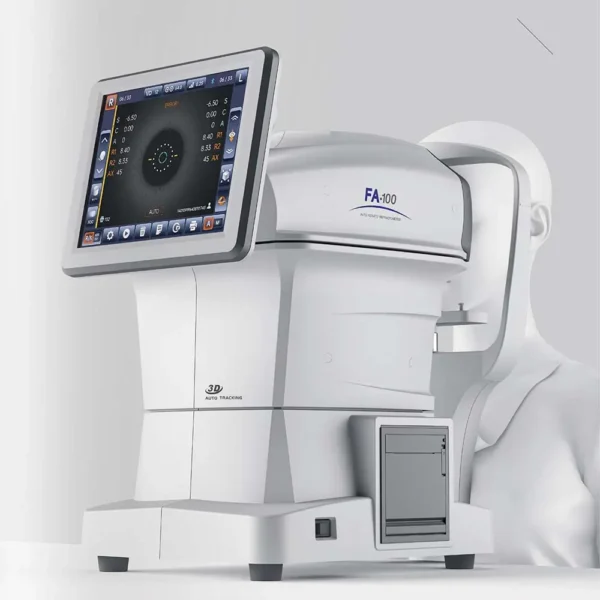

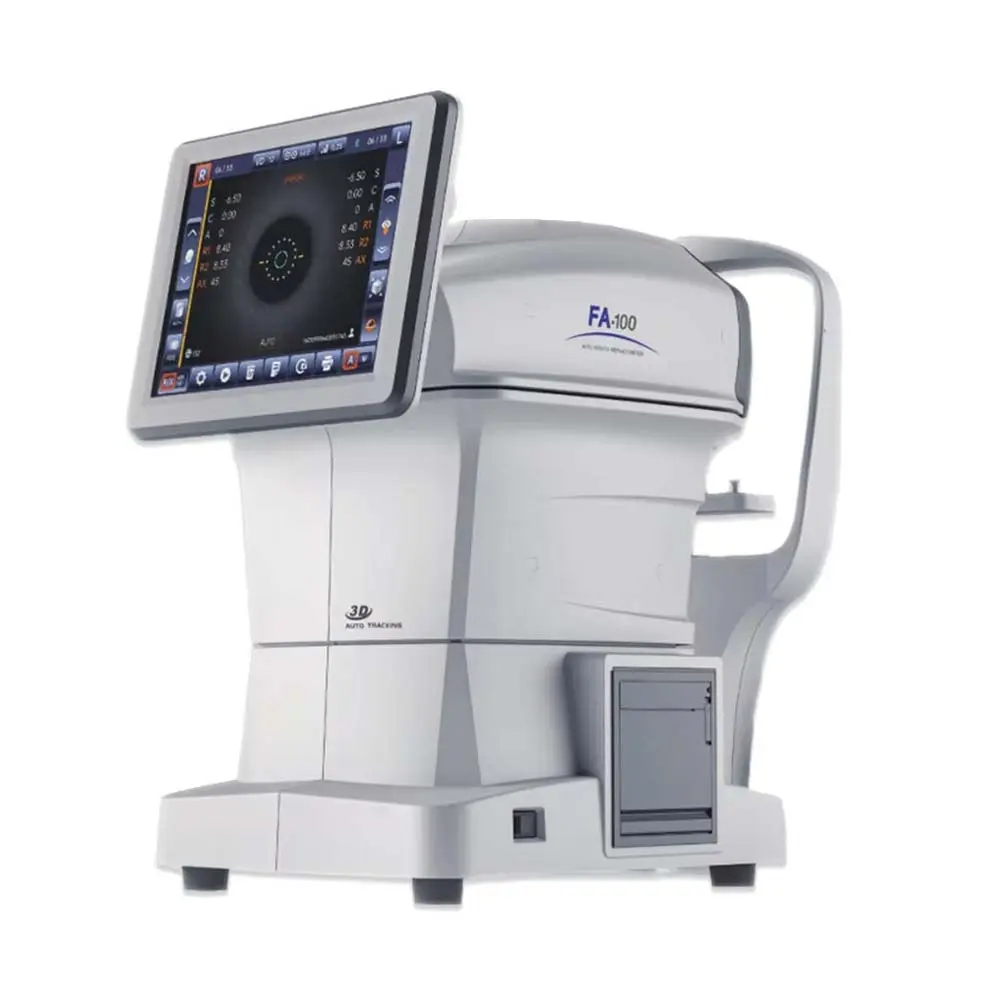

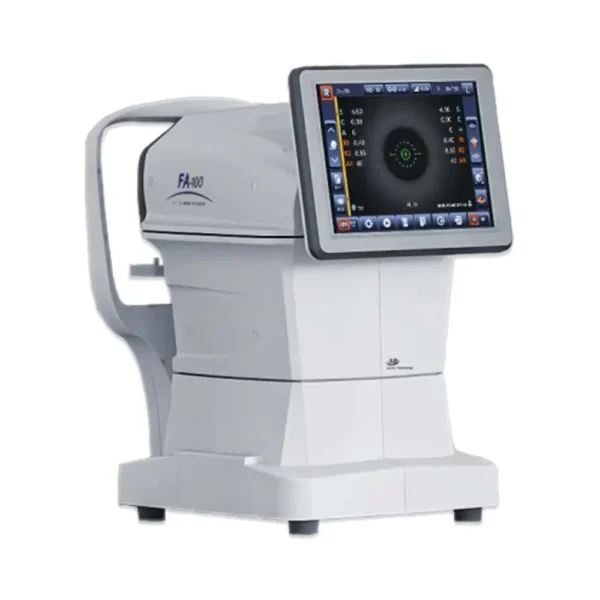

FA-100K
Feature

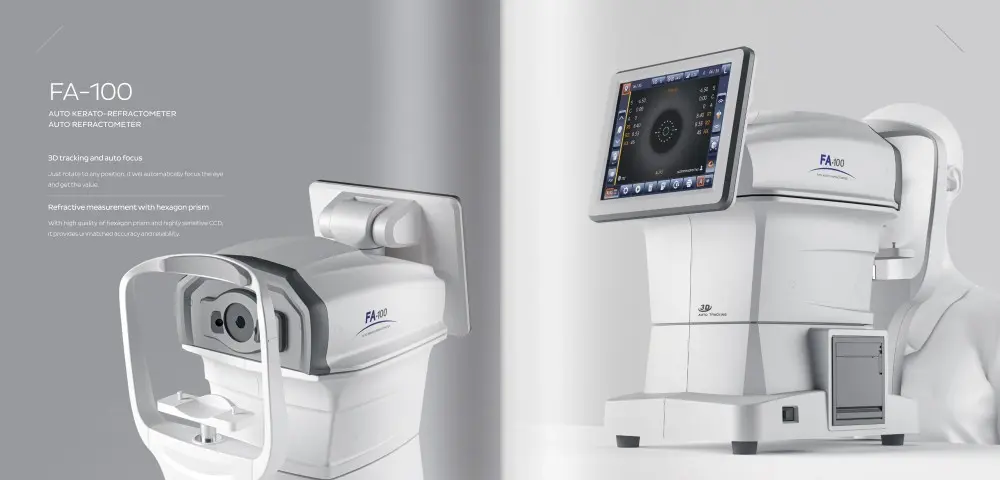

· 3D tracking with auto-focus, automatically locks onto the eye from any angle
· Refractive measurement via hexagonal prism, paired with high-sensitivity CCD for superior precision
· 10.4″ tilt-and-swivel monitor, allows flexible placement anywhere in the exam area
· Compact footprint, ideal for optimizing small-space clinical layouts
· Built-in thermal printer with auto cutter, improves workflow and printing efficiency
· Fast, user-friendly interface, designed to reduce operator fatigue

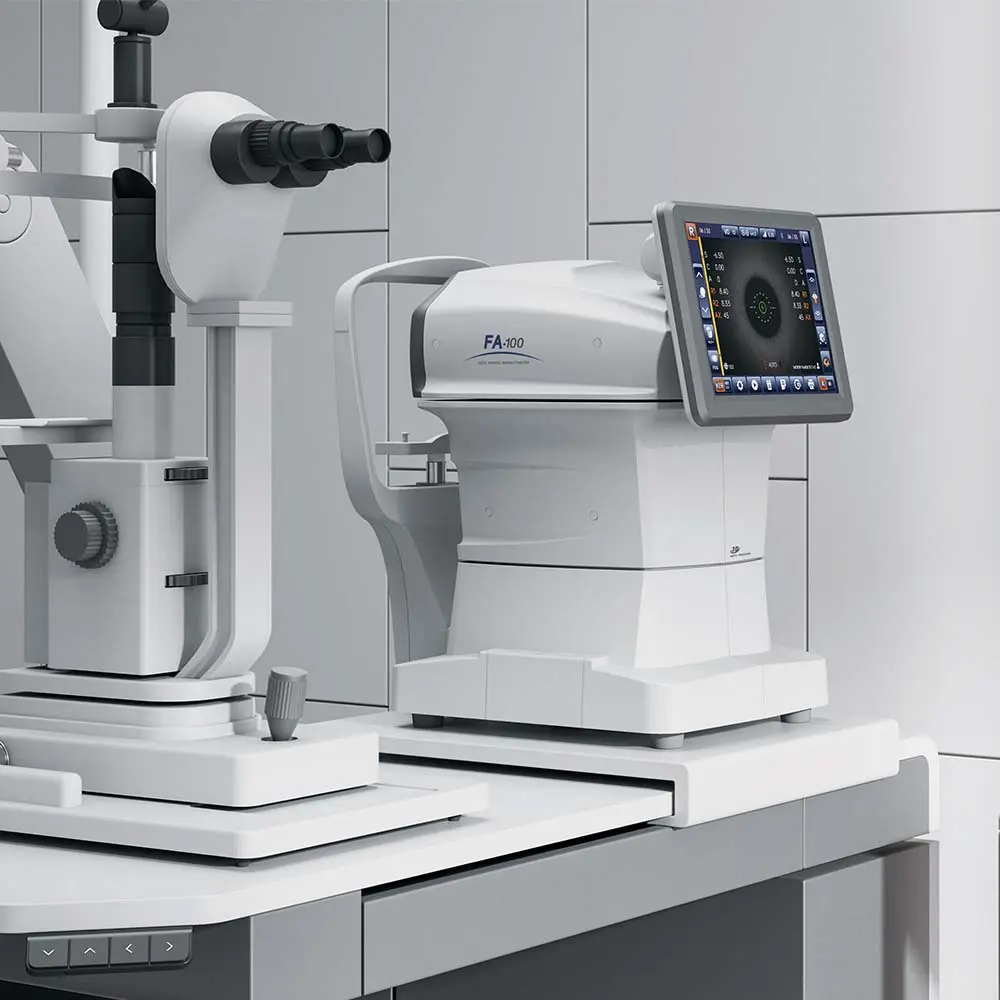

The FA-100K is a fully automatic 3D auto refractor with intelligent tracking, precise optics, and a space-saving layout. Designed for modern exam rooms, it offers effortless operation and outstanding accuracy.
Auto Refractometer/Keratometer
| I | Refractometer |
|---|---|
| Vertex distance: | 0mm,12mm,13.75mm,15mm |
| Spherical: | -25~+25m⁻¹(D=12)0.12/0.25m⁻¹step |
| Cylinder: | -10~+10m 0.12/0.25m⁻¹Step |
| Cylinder form: | -,+,± |
| Pupil distance: | 5~90mm,1mm step |
| Min.pupil size: | 2.0mm |
| II | Keratometry |
| Radius of curvature: | 5.0-10mm(increment: 0.01mm) |
| Corneal power: | 33.75~67.50m⁻¹(when corner equivalent refractive index is 1.337) |
| Corneal astigmatism: | 0.0~8.00m⁻¹ (increment selectable from 0.12,0.25m⁻¹) |
| Axis: | 1~180°(increment:1°) |
| Corneal diameter: | 2.0~12.0mm(increment: 1mm) |
| III | Others |
| Chart: | Follow-up colorful fogging chart system |
| Memory of data: | 10 measure value for each right and left eye |
| Display: | 10.4"LCD/TFT |
| Print: | 57mm thermal printer |
| Power supply: | 100-240V 50Hz60VA |
| Serial Interface: | USB,RS-232C, Bluetooth,WFV4G (optional) |
| Dimension: | 445mm(W)x287mm(D)x490mm(H) |
| Weight: | 20kg |
