SL-400
Feature

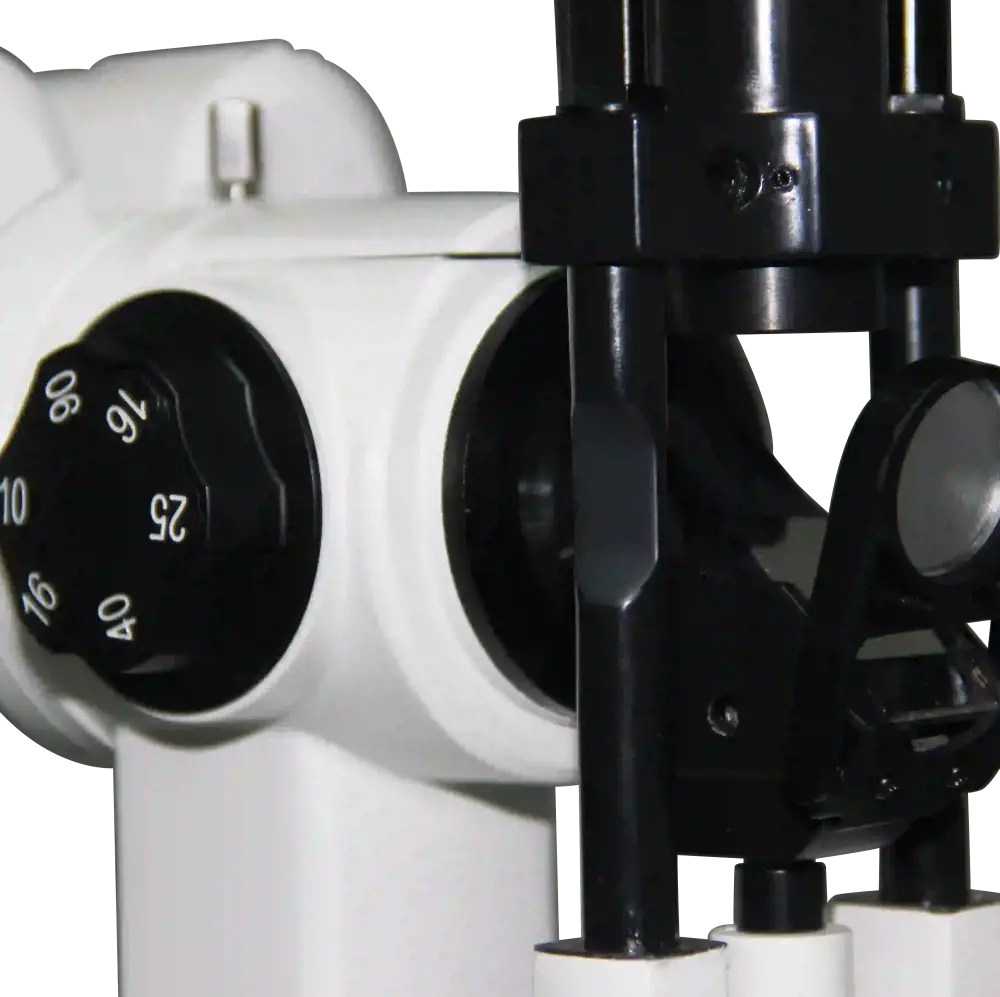

· Five-step drum magnification, supports up to 40X for detailed observation.
· Wide field of view, up to 33mm at 6.3X for enhanced anterior segment analysis.

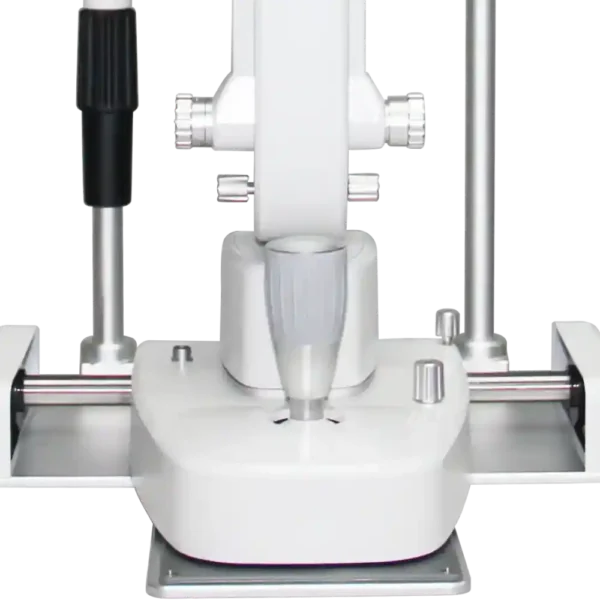

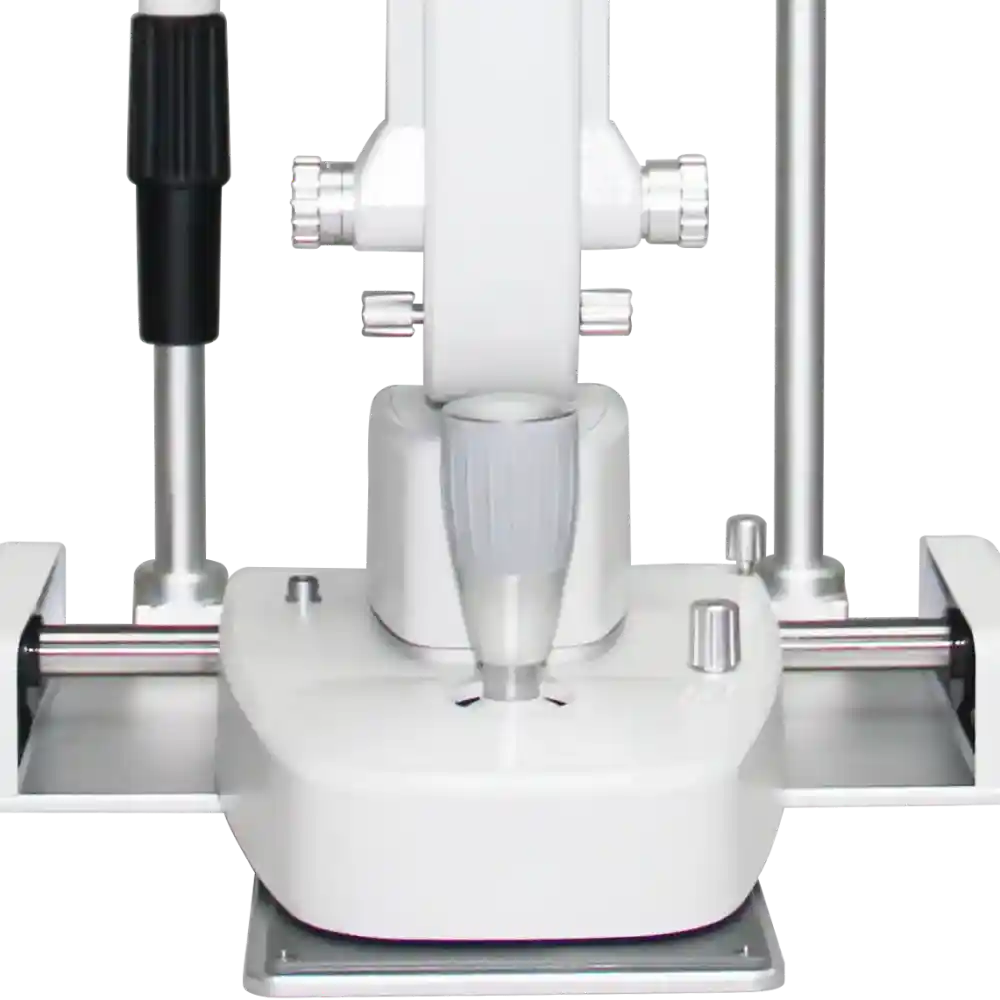

· Joystick-controlled design, with solid metal construction for precise positioning.
· Built-in filters, including heat absorption, red-free, cobalt blue, and grey.
· Compatible with digital imaging systems, designed for clinical documentation.
· Uniform halogen illumination, ensures clear and bright slit projection.

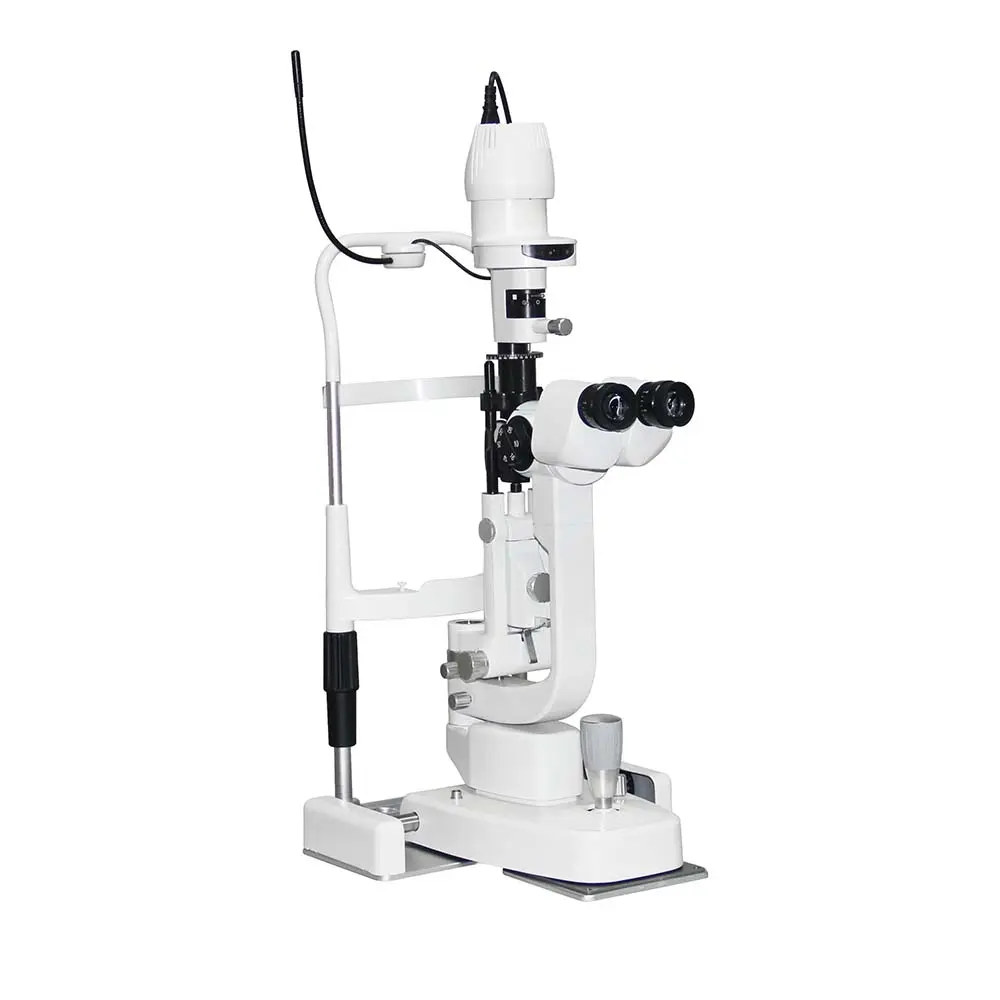

The SL-400 is a premium digital slit lamp with five-step drum magnification and Galilean stereo optics. Its wide field of view and image-ready design make it ideal for both examination and clinical photography.
Slit Lamp

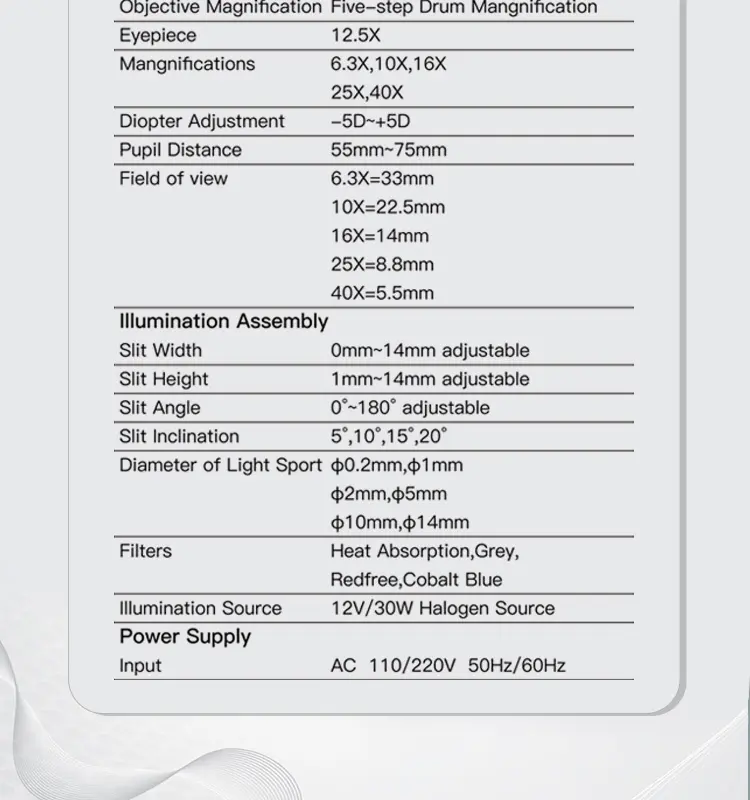

| I | Microscope |
|---|---|
| Microscope Type: | Galilean Stereoscopic Microscope |
| Objective Magnification: | Five-step Drum Mangnification |

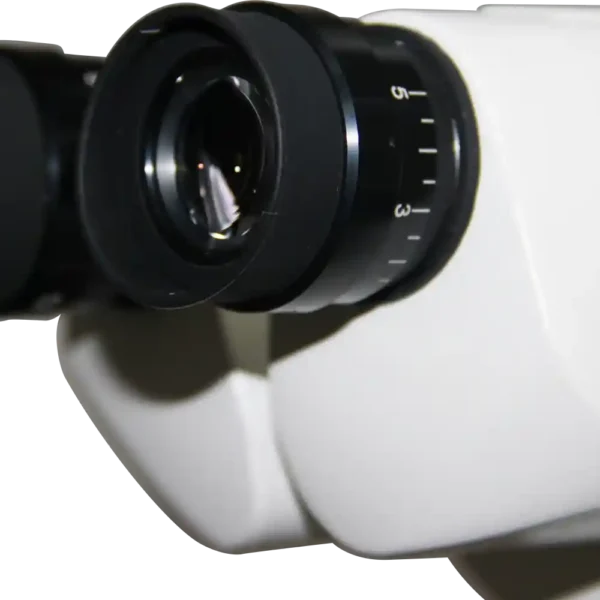

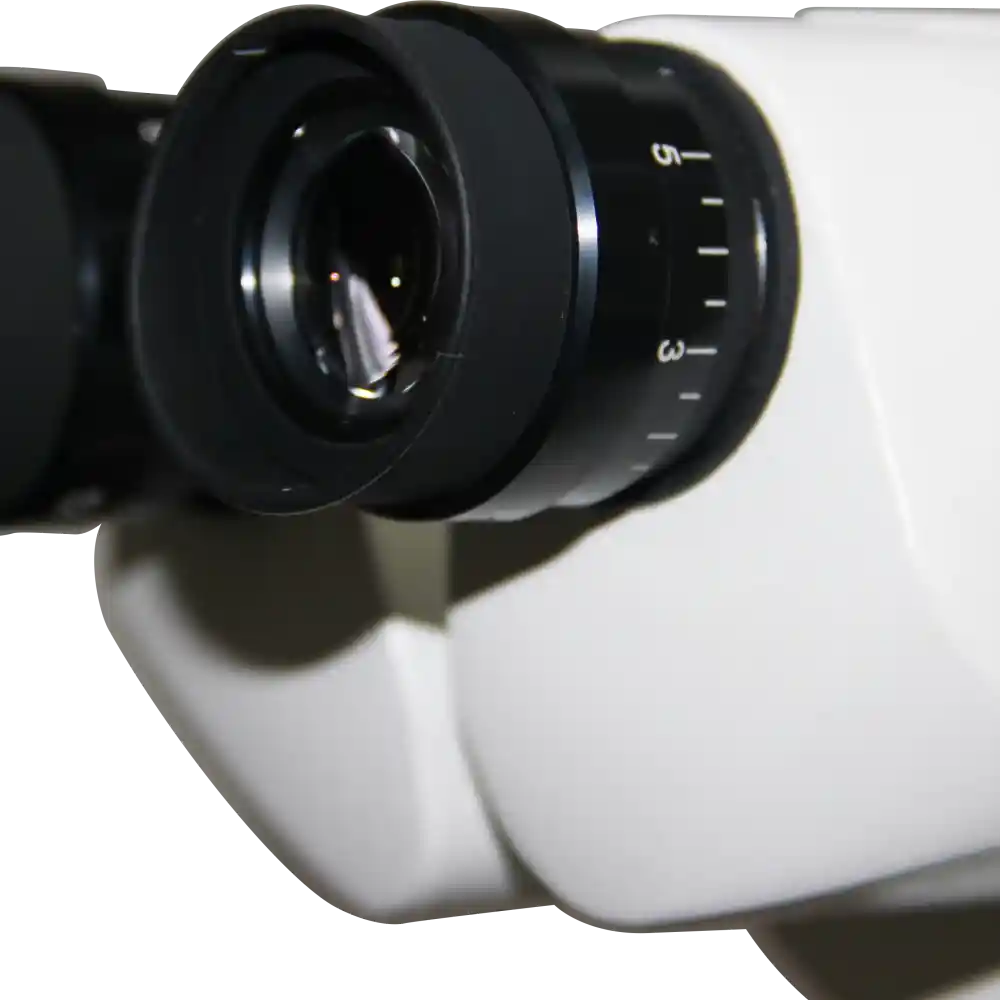

| Eyepiece: | 12.5X |
| Mangnifications: | 6.3X,10X,16X,25X,40X |
| Diopter Adjustment: | -5D~+5D |
| Pupil Distance: | 55mm~75mm |
| Field of view: | 6.3X=33mm,10X=22.5mm,16X=14mm, |
| Slit Width: | 0mm~14mm adjustable |
| Slit Height: | 1mm~14mm adjustable |
| Slit Angle: | 0°~180° adjustable |
| Slit Inclination: | 5°,10°,15°,20°` |
| Diameter of Light Sport: | φ0.2mm,φ1mm,φ2mm,φ5mm,φ10mm, |
| Fliters: | Heat Absorption, Grey Red free, Cobalt ,Blue |
| Illumination Source: | 12V/30W Halogen Source |
| II | Power Supply |

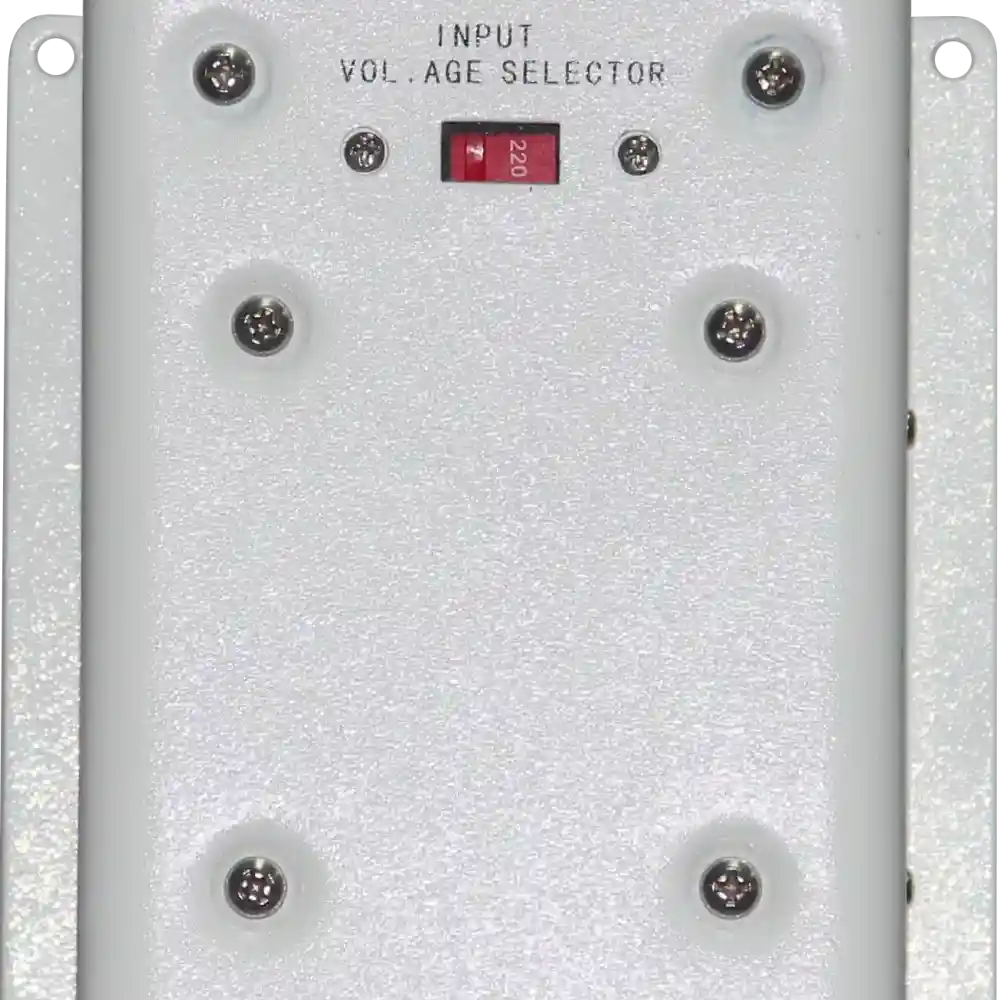

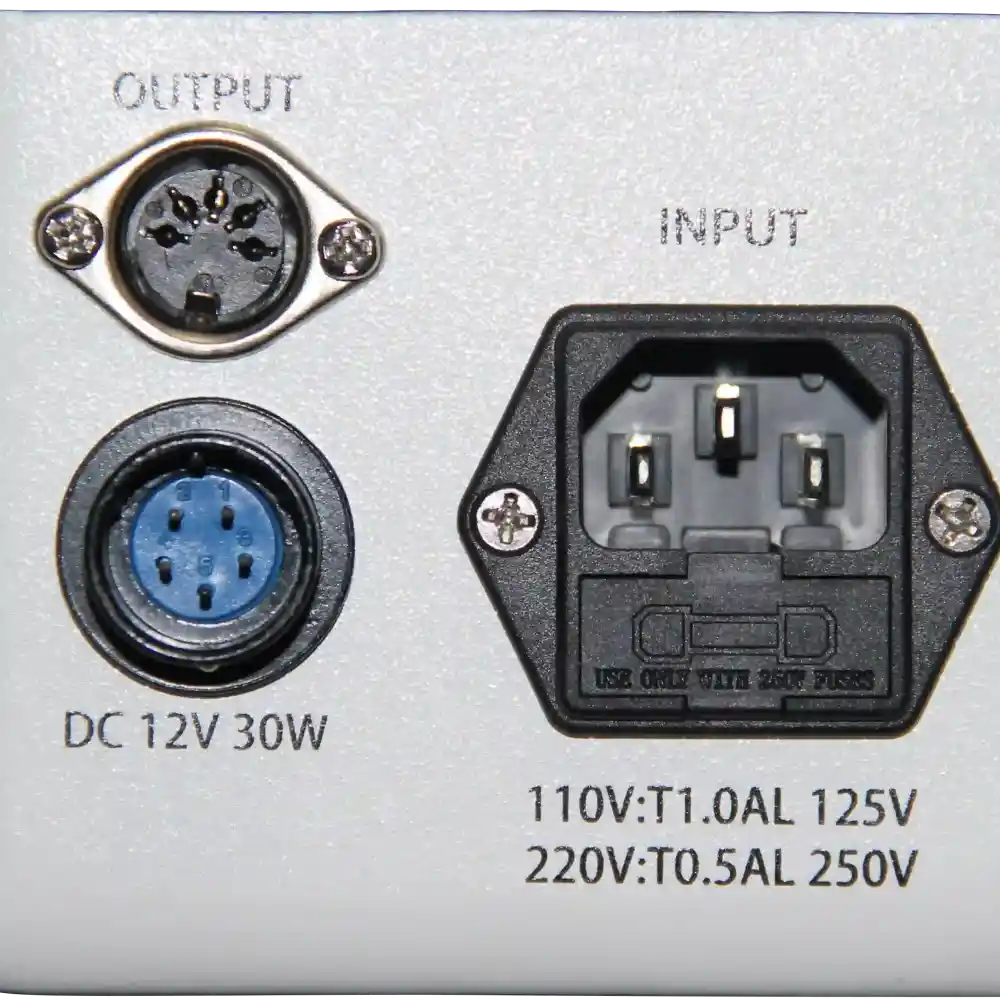

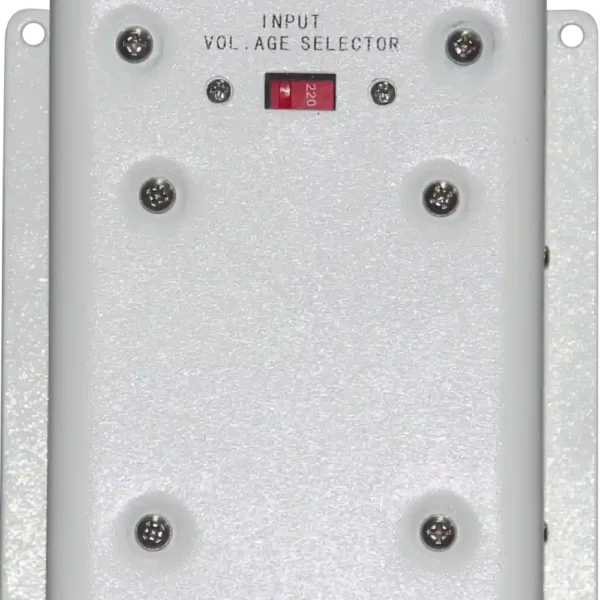

| Input; | AC 110/220V 50Hz/60Hz |
