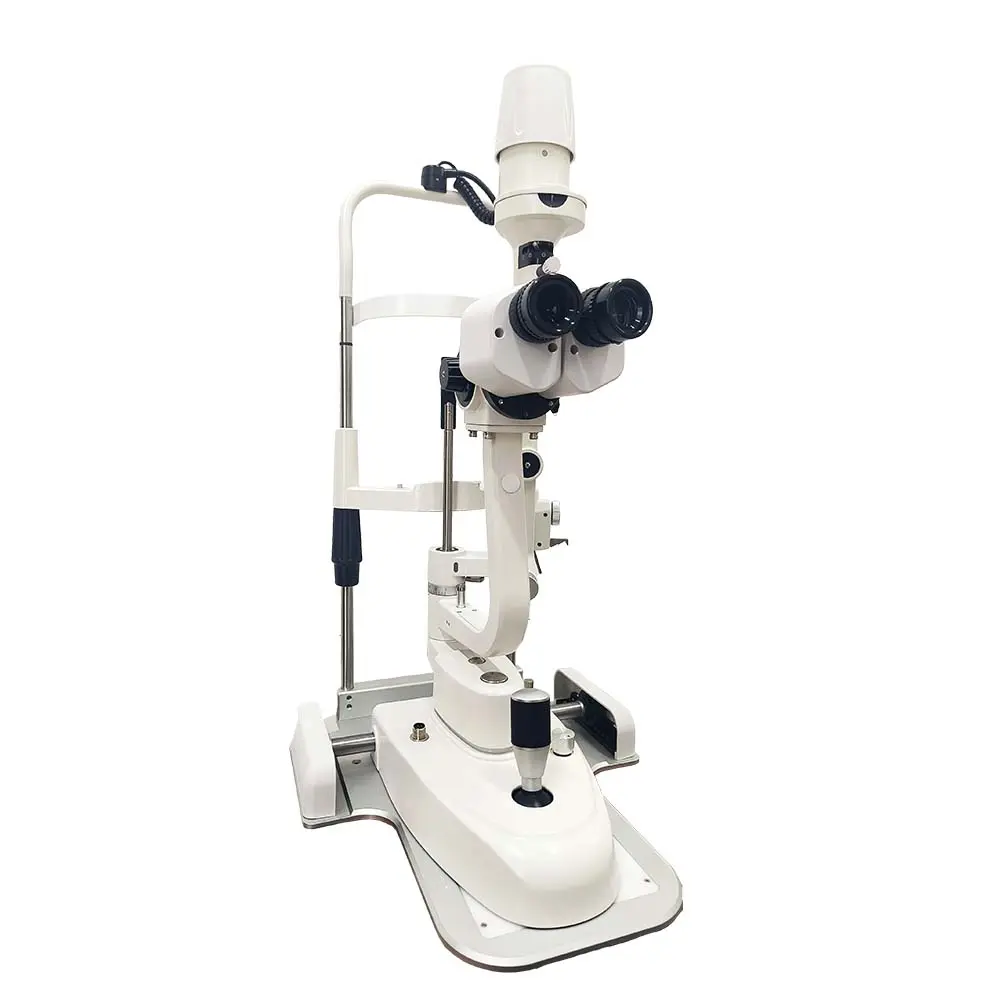

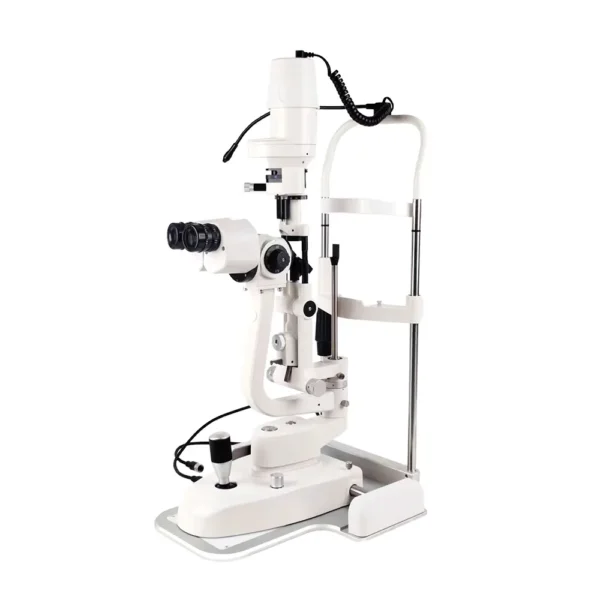

SL-320 / SL-520（Ordinary）
Feature
·5-step magnification (6X–40X) for detailed anterior segment exams
·LED illumination with multiple filters (green, blue, etc.)
·One-touch image capture with built-in imaging software
·Wide field of view and ergonomic design for easy operation
·Compatible with DICOM/HIS systems for clinical data integration

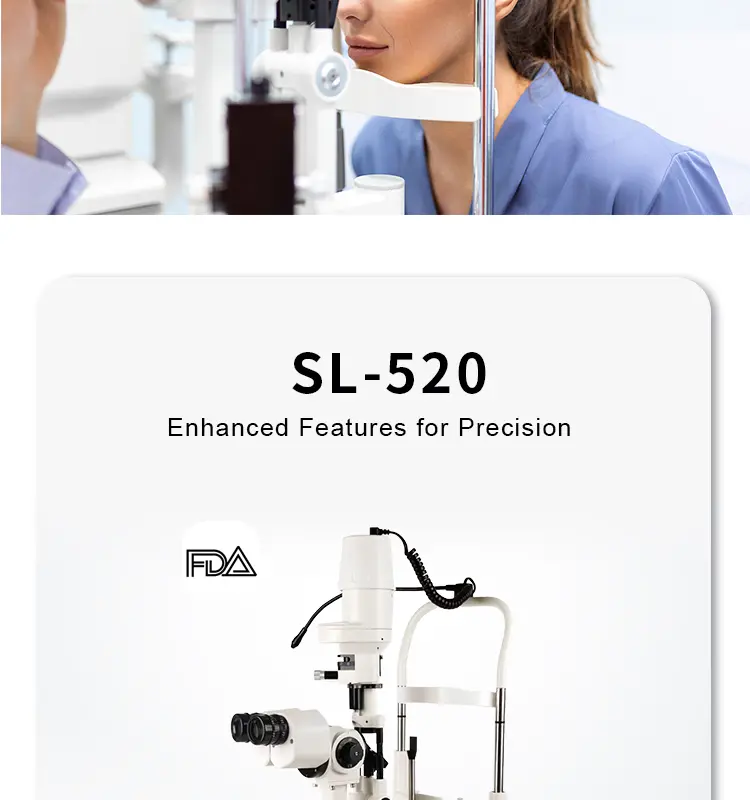

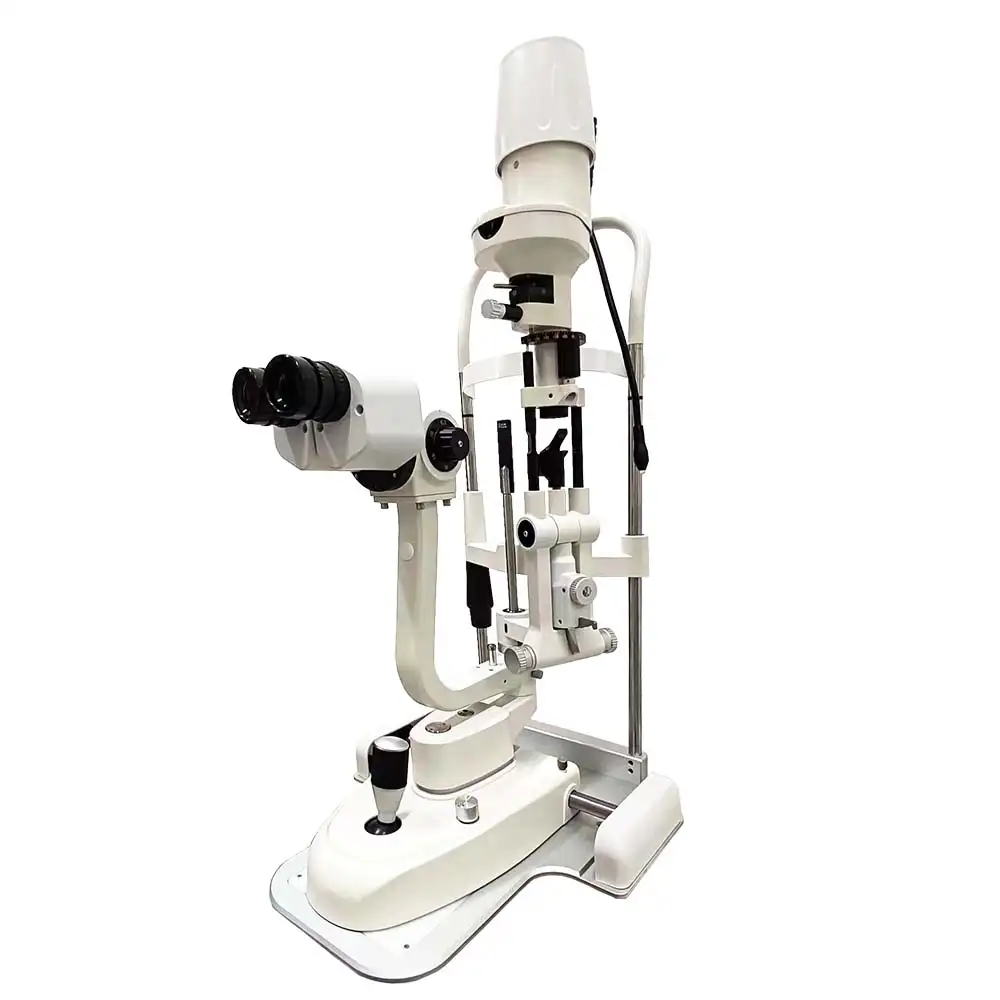

The SL-520 is a professional slit lamp microscope with high optical clarity and digital imaging.Ideal for clinics needing both examination and image documentation in one device.
Slit Lamp

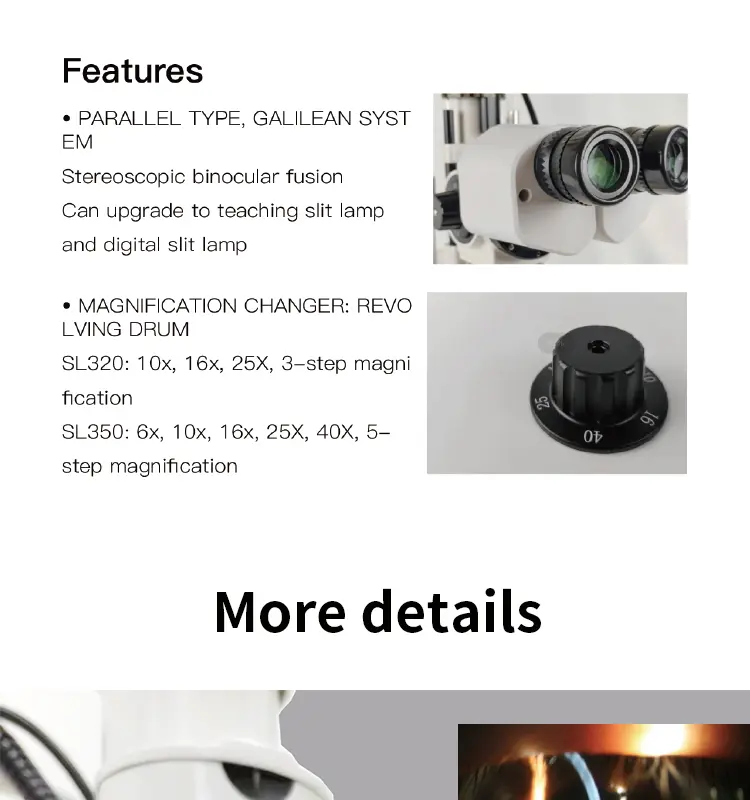

| Microscope Type: | Galilean Dystem |
|---|---|
| Magnification Changer: | Revolving Drum |

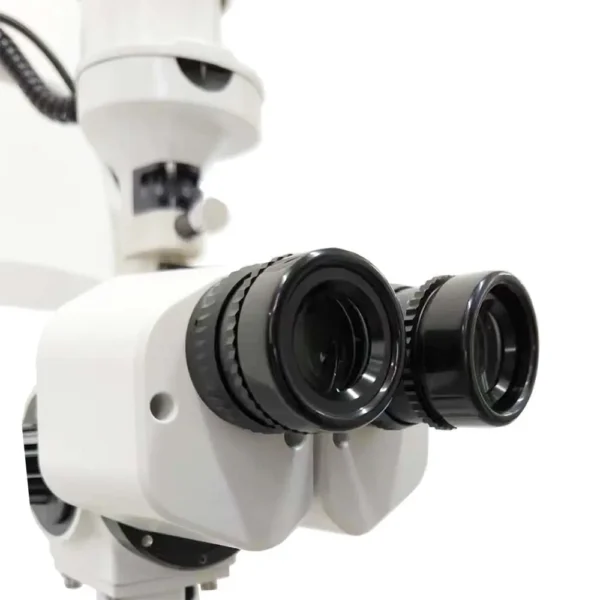

| Eyepiece Magnification: | 12.5X |
| Slit Width: | 0mm~14mm Continuously Adjustable |

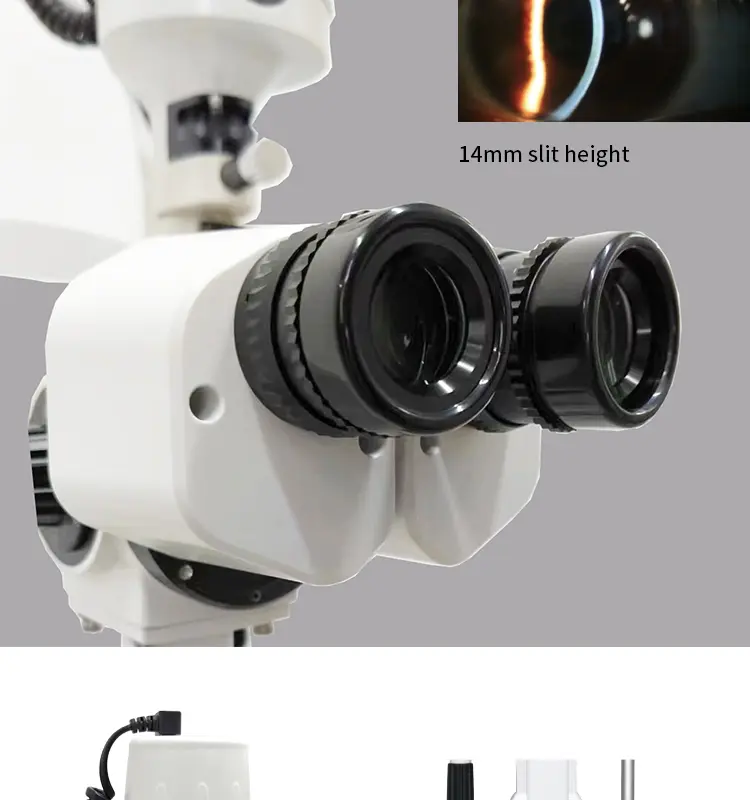

| Slit Length: | 1mm~14mm Continuously Adjustable |
| Slit Angle: | 0~180°Continuously Adjustable |
| Filter: | Heat Aborption, Grey, |

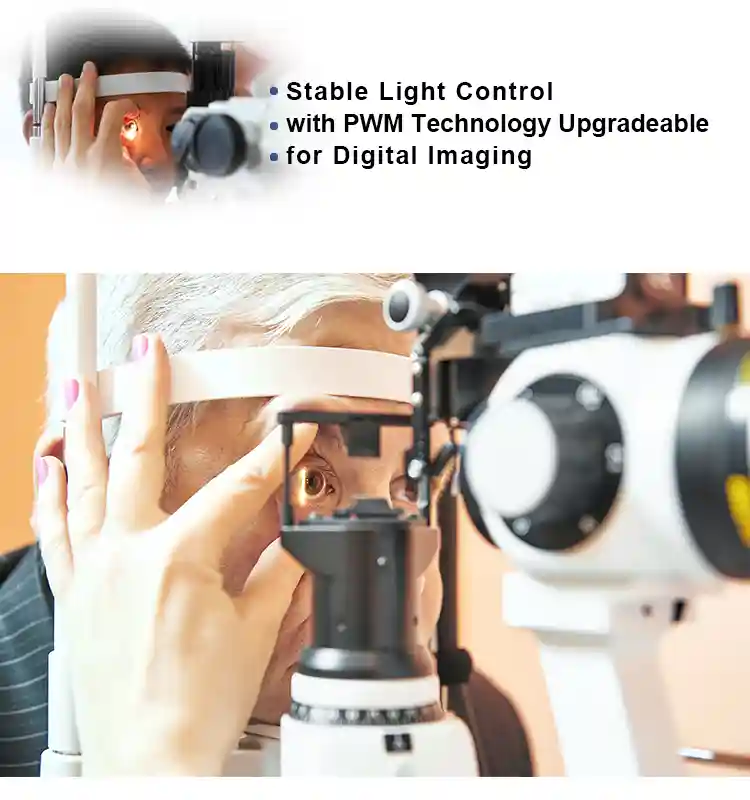

| Light Control: | PWM: Pulse Width Modulation |

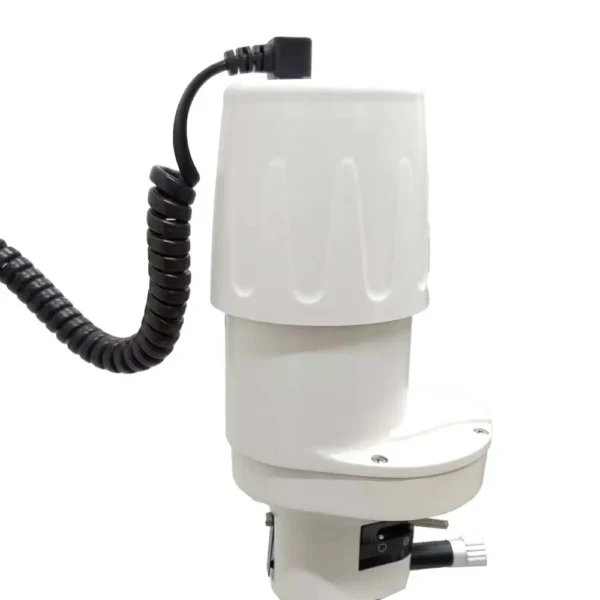

| Light Source | Warm LED |

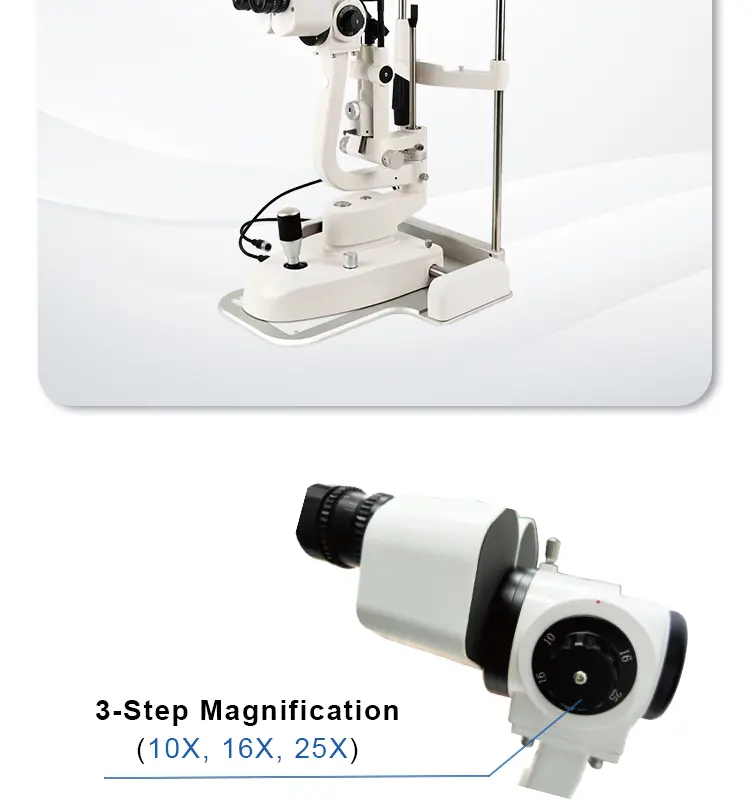

| SL-320 Magnification: | 10X, 16X, 25X |

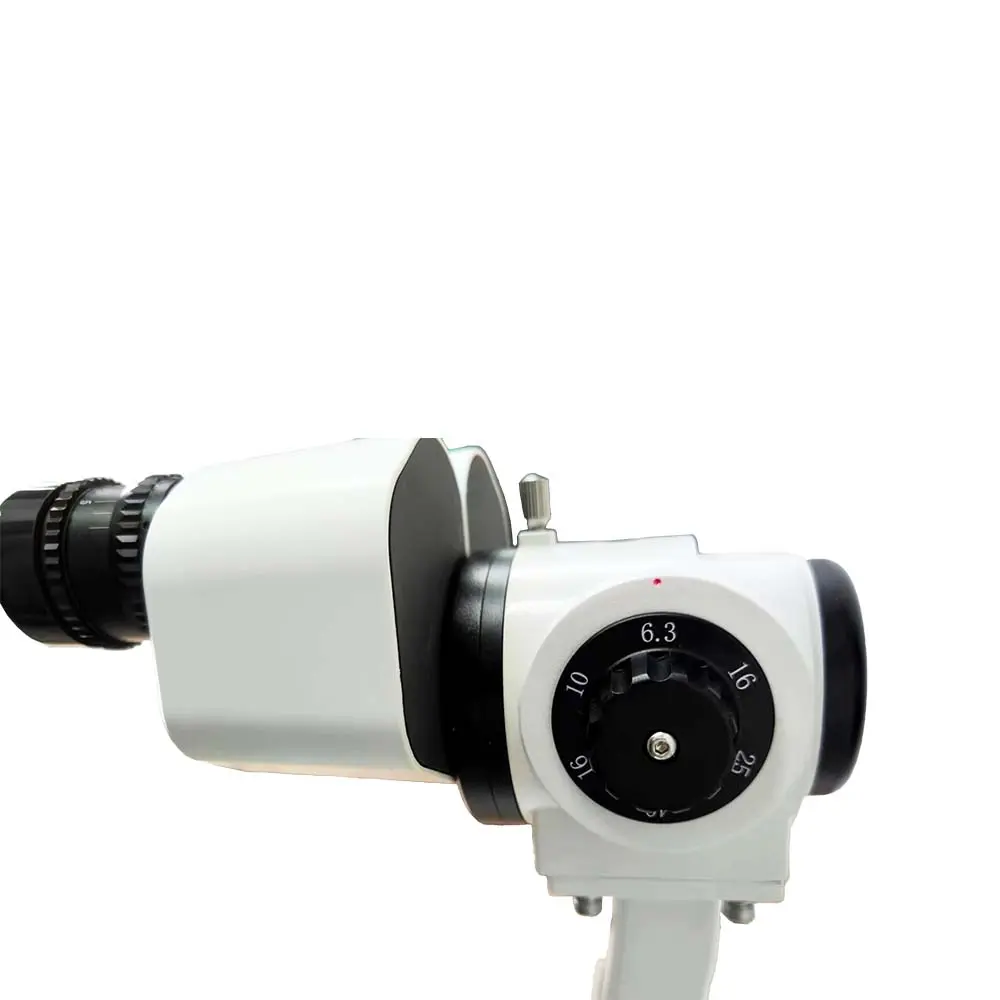

| SL-520 Magnification: | 6.3X, 10X, 16X, 25X, 40X |
| Diopter: | ±7D |
| Pupil Range: | 52mm-85mm |
| SL-320 Visual Field Diameter: | 10X:22mm 16X:14mm |
| SL-520 Visual Field Diameter: | 6X:33mm 10X:22mm 16X:14mm |
| llumination Type: | Haag-Streit Type |
| lumination Tilting: | 5°,10°,15°,.20° |
| Slit Aperture Size: | φ0.2, φ1, φ3, φ5, φ10, φ14(mm) |
