SL-5A
Feature
· Five-step magnification system, supports 6X, 10X, 16X, 25X, and 40X levels for detailed examination
· Galilean stereo optics, delivers high-resolution and stereoscopic viewing

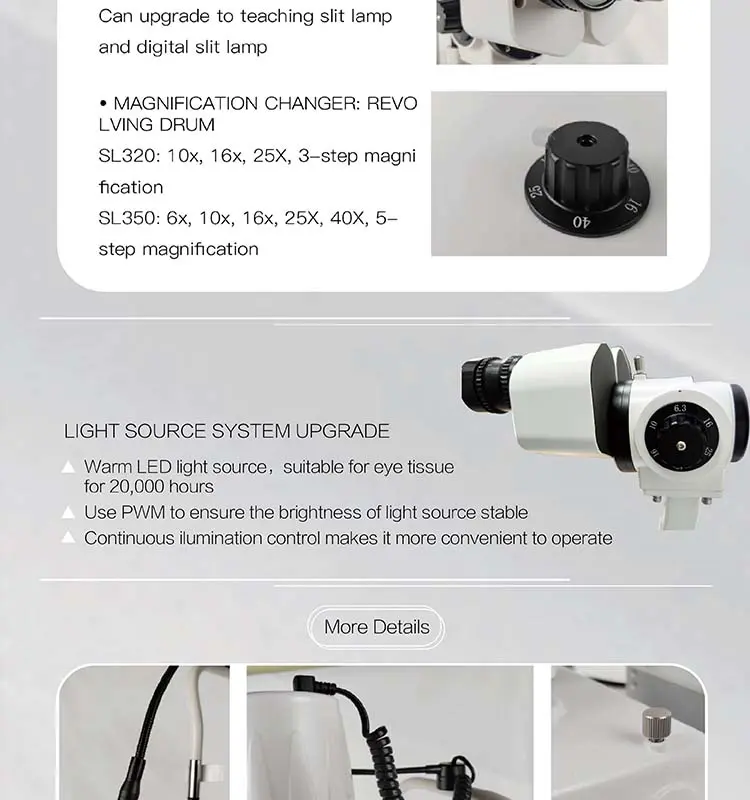

· Warm LED light source, stable PWM control with 20,000-hour lifespan
· Adjustable slit width, length, angle, and inclination for flexible operation

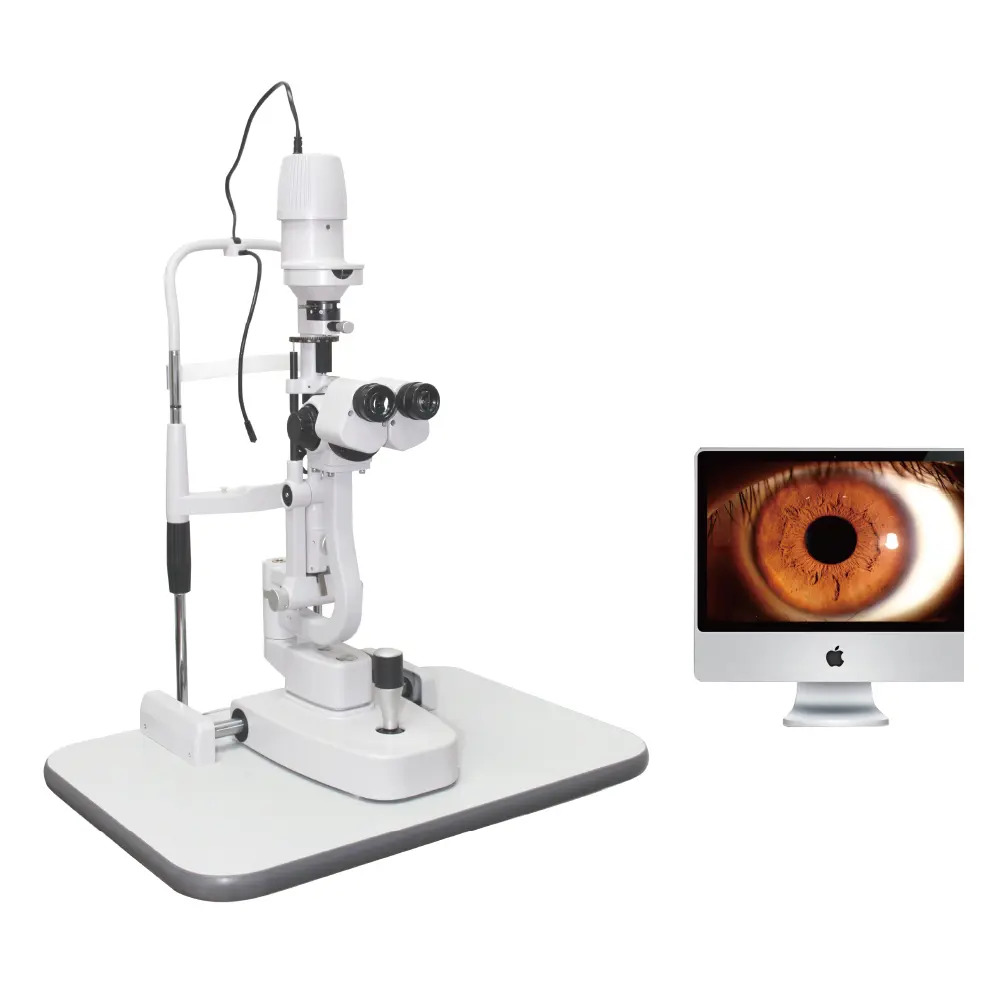

· Compatible with teaching or digital camera systems for extended functionality
· Four built-in filters, including cobalt blue and red-free, meet varied diagnostic needs

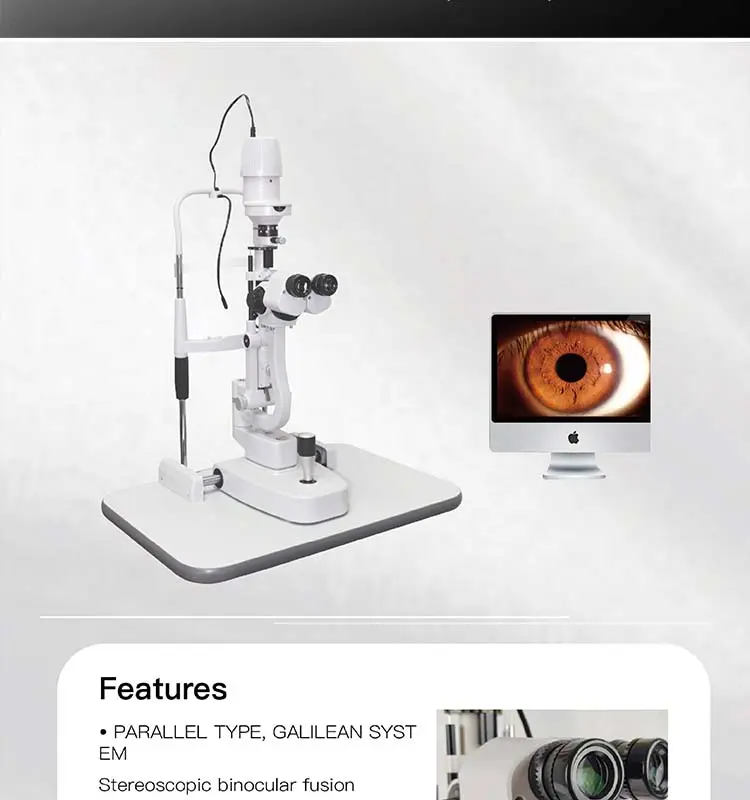

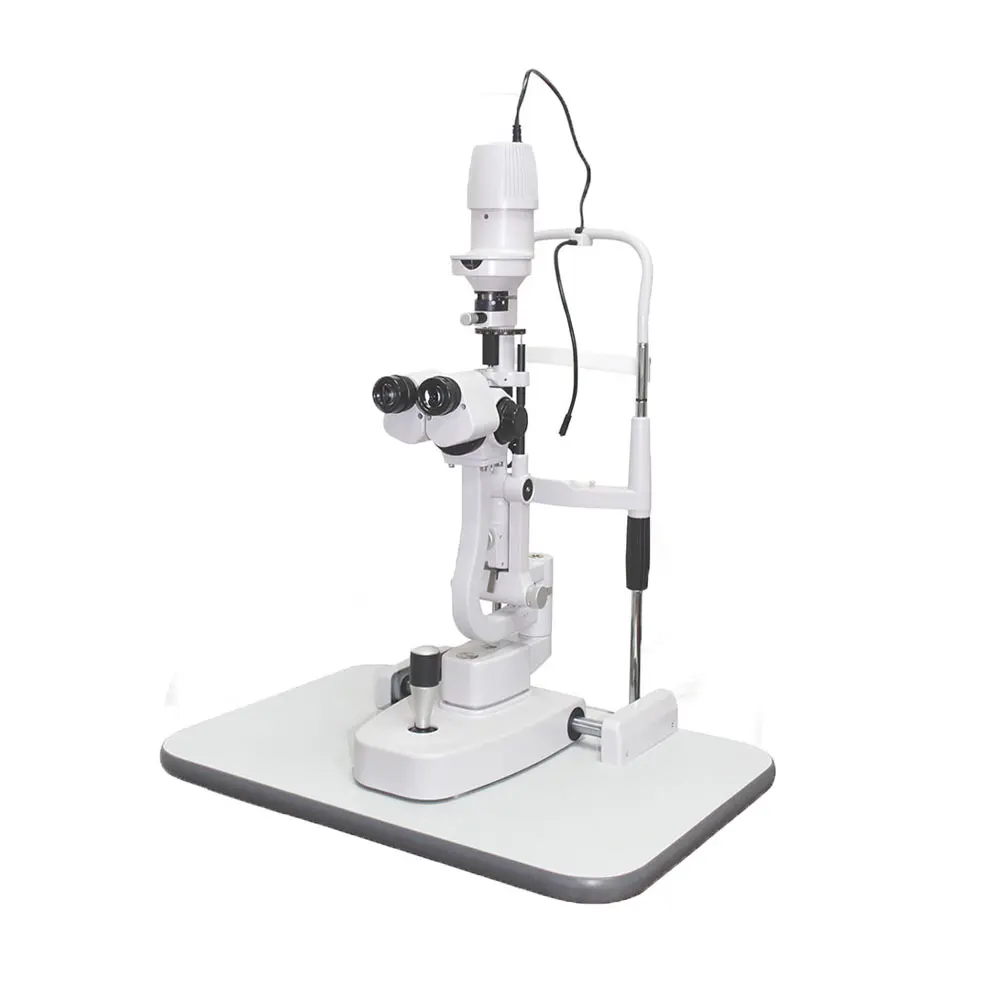

The SL-5A is a five-step magnification slit lamp with Galilean optics and parallel-type binocular fusion. Designed for high-clarity imaging, it supports both clinical diagnosis and system upgrades.

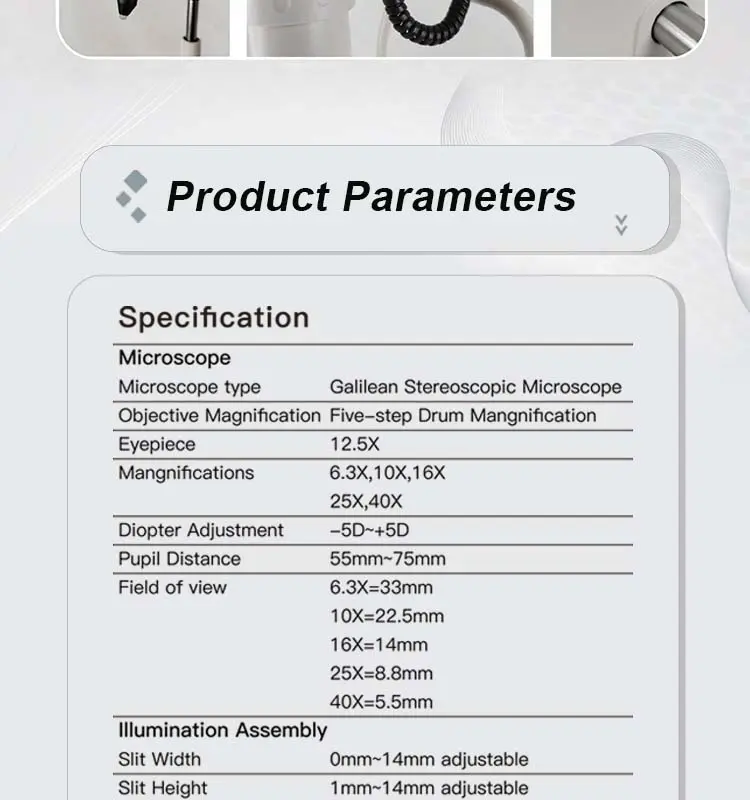

Slit Lamp
| Microscope Type: | Galilean Dystem |
|---|---|
| Magnification Changer: | Revolving Drum |
| Eyepiece Magnification: | 12.5X |
| Slit Width: | 0mm~14mm Continuously Adjustable |
| Slit Length: | 1mm~14mm Continuously Adjustable |

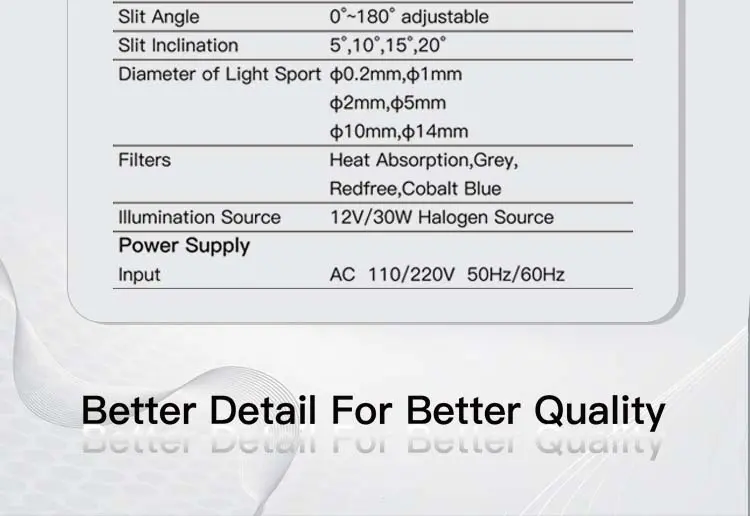

| Slit Angle: | 0~180°Continuously Adjustable |
| Filter: | Heat Aborption, Grey, Red free (Green),Cobalt Blue |
| Light Control: | PWM: Pulse Width Modulation |
| Light Source: | Warm LED |
| II | Basic Series |
| Magnification: | 6X，10X， 16X， 25X， 40X |
| Diopter: | ±7D |
| Pupil Range: | 52mm-85mm |
| Visual Field Diameter: | :6X:33mm; 10X:22mm; 16X:14mm; |
| llumination Type: | Haag-Streit Type |
| Electrical: | AC 100-250V,50/60HZ |
| lumination Tilting: | 5°,10°,15°,.20° |
| Slit Aperture Size: | φ0.2，φ1，φ3，φ5，φ10， φ14 (mm) |
