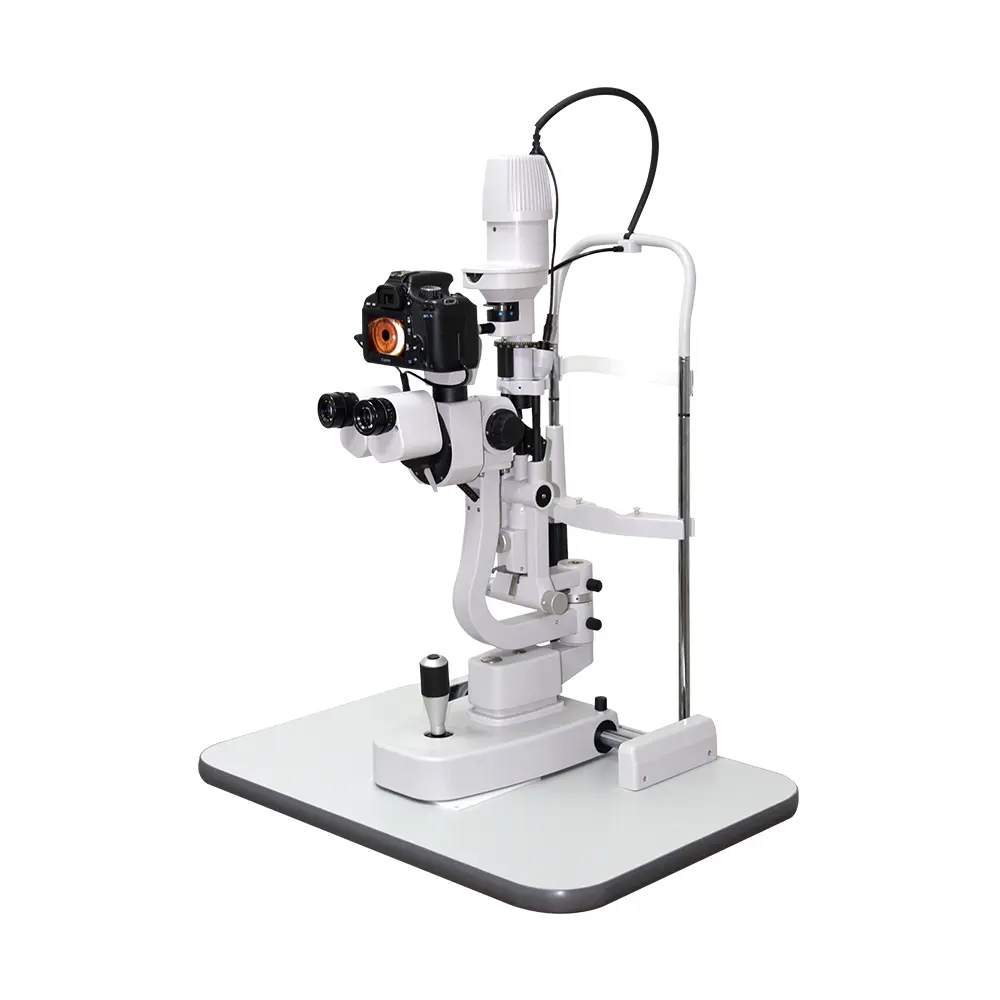

SL-320 / SL-520（Image System）
Feature
• One key shooting can easily obtain high-quality image
without heavy training of exposure, ISO, shutter speed and other
parameters
•More clear and direct to manage patents’ information
One key export is supported, making it easier to transfer data
•With abundant image processing functions to meet various
clinical needs DICOM，HIS/PACS is supported
Perfect for eye clinics that need both diagnosis and digital documentation in one efficient unit.

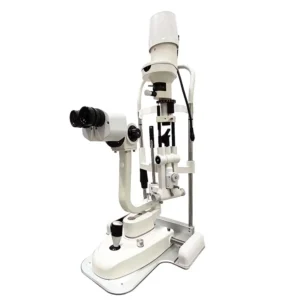

Slit Lamp
| Microscope Type: | Galilean Dystem |
|---|---|
| Magnification Changer: | Revolving Drum |
| Eyepiece Magnification: | 12.5X |
| Slit Width: | 0mm~14mm Continuously Adjustable |
| Slit Length: | 1mm~14mm Continuously Adjustable |
| Slit Angle: | 0~180°Continuously Adjustable |
| Filter: | Heat Aborption, Grey, |
| Light Control: | PWM: Pulse Width Modulation |
| Light Source | Warm LED |
| SL-320 Magnification: | 10X, 16X, 25X |
| SL-520 Magnification: | 6.3X, 10X, 16X, 25X, 40X |
| Diopter: | ±7D |
| Pupil Range: | 52mm-85mm |
| SL-320 Visual Field Diameter: | 10X:22mm 16X:14mm |
| SL-520 Visual Field Diameter: | 6X:33mm 10X:22mm 16X:14mm |
| llumination Type: | Haag-Streit Type |
| lumination Tilting: | 5°,10°,15°,.20° |
| Slit Aperture Size: | φ0.2, φ1, φ3, φ5, φ10, φ14(mm) |
